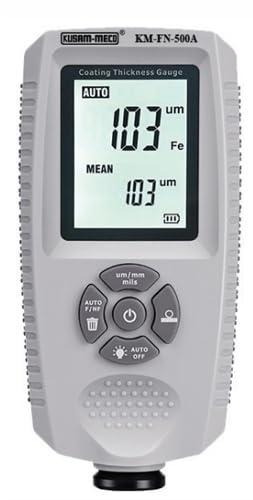

Kusam Meco KM FN 500A Digital Coating Thickness Gauge
Click To Zoom
Kusam Meco KM FN 500A Digital Coating Thickness Gauge
Kusam Meco KM FN 500A Digital Coating Thickness Gauge
This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, & insulating coatings, e.g. pain & anodizing coatings on non-ferrous metals.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 11,250.00
(GST inclusive price) i₹14,500.00
( - 22% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Probe | Probe F | Probe N |
| Measuring Principle | Magnetic induction | Eddy Currents |
| Measuring range | 0 to 1500mm | 0 to 1500mm |
| Accuracy | Type A: ±(3%+1mm) Type B: ±(2%+1mm) | Type A: ±(3%+1mm) Type B: ±(2%+1mm) |
| Resolution | 0mm~99.9mm(0.1mm) 100mm~999mm(1mm) >1000mm(0.01mm) | 0mm~99.9mm(0.1mm) 100mm~999mm(1mm) >1000mm(0.01mm) |
| Calibration | Zero point calibration | |
| Statistics | No. of readings, mean, minimum, maximum | |
| Units | mm, mm, mils | |
| Backlight | YES | |
| Minimum curvature radius convex | 5mm | |
| Minimum curvature radius concave | 25mm | |
| Minimum measuring area | Diameter 20mm | |
| Minimum thickness of substrate | 0.2mm | 0.05mm |
| Maximum measuring rate | Two readings per second | |
| Power Supply | Two 1.5V AAA battery | |
| Operating Temperature | 0~50°C (32 ~ 122°F);Humidity:20%~ 90%RH | |
| Storage Temperature | -10 ~ 60°C (14 ~ 140°F) | |
| Standard compliance | CE ROHS FCC | |
| Dimension | 110 x 53 x 24 mm | |
| Weight | Approx. 84g. | |
