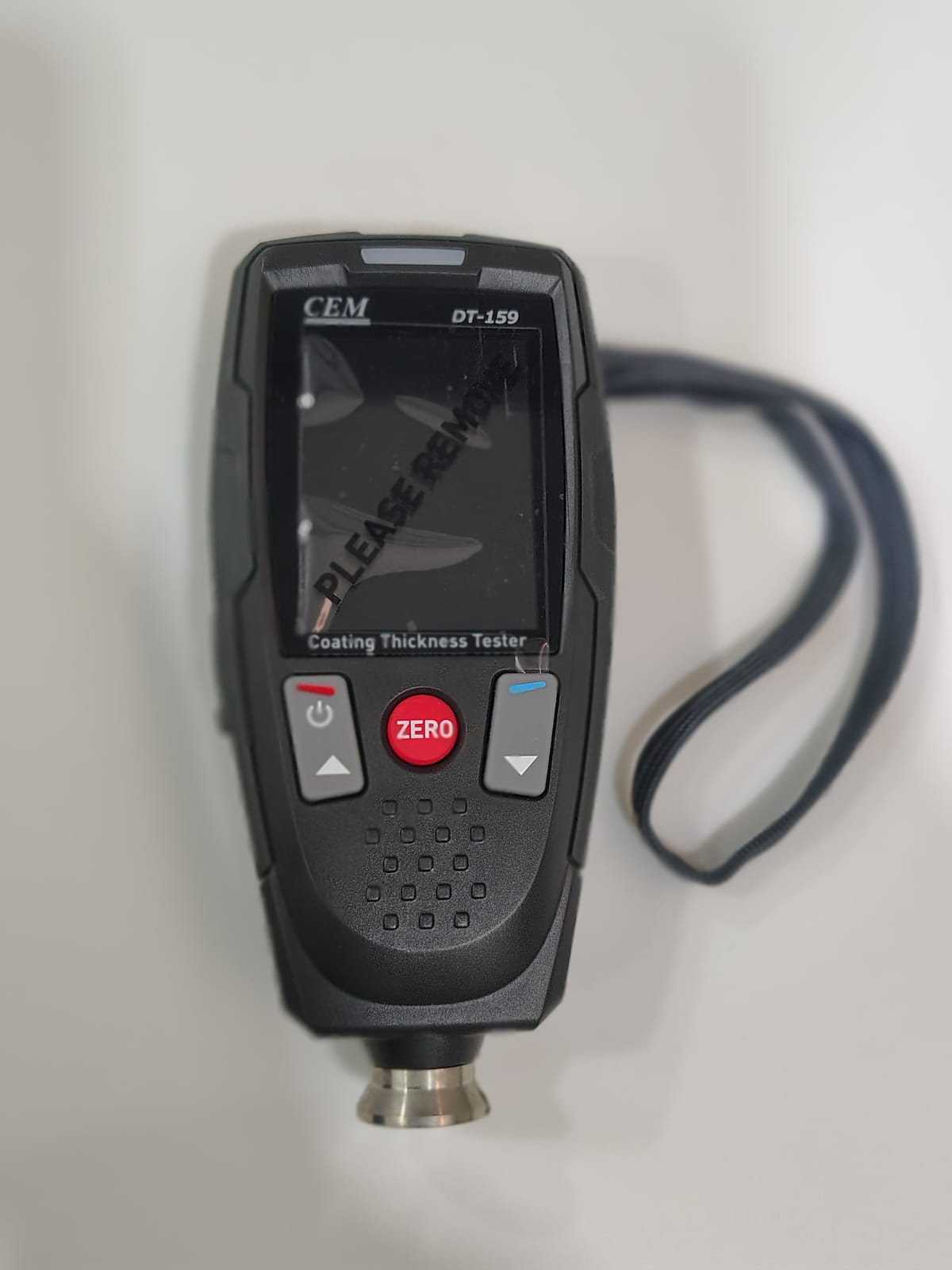

CEM DT-159 COATING THICKNESS GAUGE
.jpeg "CEM DT-159 COATING THICKNESS GAUGE")
Click To Zoom
CEM DT-159 COATING THICKNESS GAUGE
CEM DT-159 COATING THICKNESS GAUGE
The probe can work on both principles, magnetic induction and on the eddy current principle. One probe only is required for coating measurement both on ferrous and non-ferrous metal substrates. It is adaptable to specific tasks: i.e. they can be used on special geometries or on materials with special properties.
Request Callback
Order In Bulk
Generate Quote
₹ 12,200
(GST inclusive price) i-
Base Value: ₹ 10339
-
GST: (18) % ₹ 1861
-
Total Value ₹ 12200
₹16,499.00
( - 26% OFF )
Description
Key Features
- Measured Coatings: Non-magnetic coatings (e.g. paint. zinc) on steel; Insulating coatings (e.g. paint) on non-ferrous metals.
- Non ferrous metals coating on insulating substrates.
- 2.4” TFT color LCD display
- Temperature and humidity Dew point Temperature measurement.
- Auto-rotation Screen: 0°, 90°, 180°, 270°
- Stability Test
- Continuous Test
- Set Auto power off time.
- SSPC mode
- Warning with beeper and backlight flash, 3-colour led indication.
- Menu Operation system
- Two working mode: DIRECT, GROUP and SSPC mode.
- Statistic Display: AVG, MAX, MIN, NO., S.DEV(Deviation)
- One point calibrating and SSPC MODE calibration
- Error indication
- USB interface
- Level of LCD Lighting adjustable
What's in the box?
|
Rating & Reviews
Rating
| Sensor probe | FERROUS | NON-FERROUS |
| Working principal | Magnetic induction | Eddy current principal |
| Measuring range | 0~2000µm | 0~2000µm |
| Guaranteed tolerance (of reading) | (±2%+2)µm | (±2%+2)µm |
| Repeatability | (±1%+1)µm | (±1%+1)µm |
| Low range Precision | 0.1 µm | 0.1 µm |
| Minimum curative radius | 1.5mm | 0.1 µm |
| Diameter of Minimum area | 7mm | 5mm |
| Basic critical thickness | 0.5mm | 0.3mm |
| Working temperature | 0°C~50°C (32°F~122°F) | |
| Basic Accuracy | ±1°C/1.8°F / ±3% | |
| Working relative humidity | 0%~100% | |
| Size (H X D X W) | 120 x 60 x 40mm | |
| Weight | 120g |
