HTC DFT 821 Coating Thickness Meter
Click To Zoom
HTC DFT 821 Coating Thickness Meter
HTC DFT 821 Coating Thickness Meter
The HTC DFT-821 is a coating thickness gauge. It measures paint, zinc, and other coatings on metal surfaces. It works on both magnetic and non-magnetic materials, with a range of up to 1700 micrometers.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 5,873
(GST inclusive price) i-
Base Value: ₹ 4977.1
-
GST: (18) % ₹ 895.9
-
Total Value ₹ 5873
₹7,610.00
( - 23% OFF )
Description
Key Features
- ACCURATELY MEASURE THE NON-MAGNETIC COATING THICKNESS ON MAGNETIC SURFACE
- NON-CONDUCTING COATING THICKNESS ON NON-MEGNATIC METAL SUBSTRATE SURFACE
- 2 INCHES COLOR SCREEN
- ROTATABLE SCREEN WITH FOUR DIRECTION
- BUILT-IN 850mAh LITHIUM BATTERY
- USB PORT CONNECTING PC TO EXPORT DATA
- VOICE BROADCAST
- DATA GROUPING, 8 GROUPS AND EACH 32 SETS OF DATA
- CALIBRATED DATA GROUPING, CORRESPONDING TO CALIBRATING 8 GROUPS OF BASE-METAL
- ON SCREEN SHOWS DIRECTLY THE THICKNESS OF THE COVER AND THE MATERIAL OF THE BASE-METAL
- HISTOGRAM DISPLAY
- UPPER / LOWER LIMIT WARNING FUNCTION
- RESTORING FACTORY SETTING AND CALIBRATION VALUES
- STATISTICS : THE AVERAGE (Avg), THE MAX (Max) THE MIN (Min), AND THE STANDARD DEVIATION (SDev)

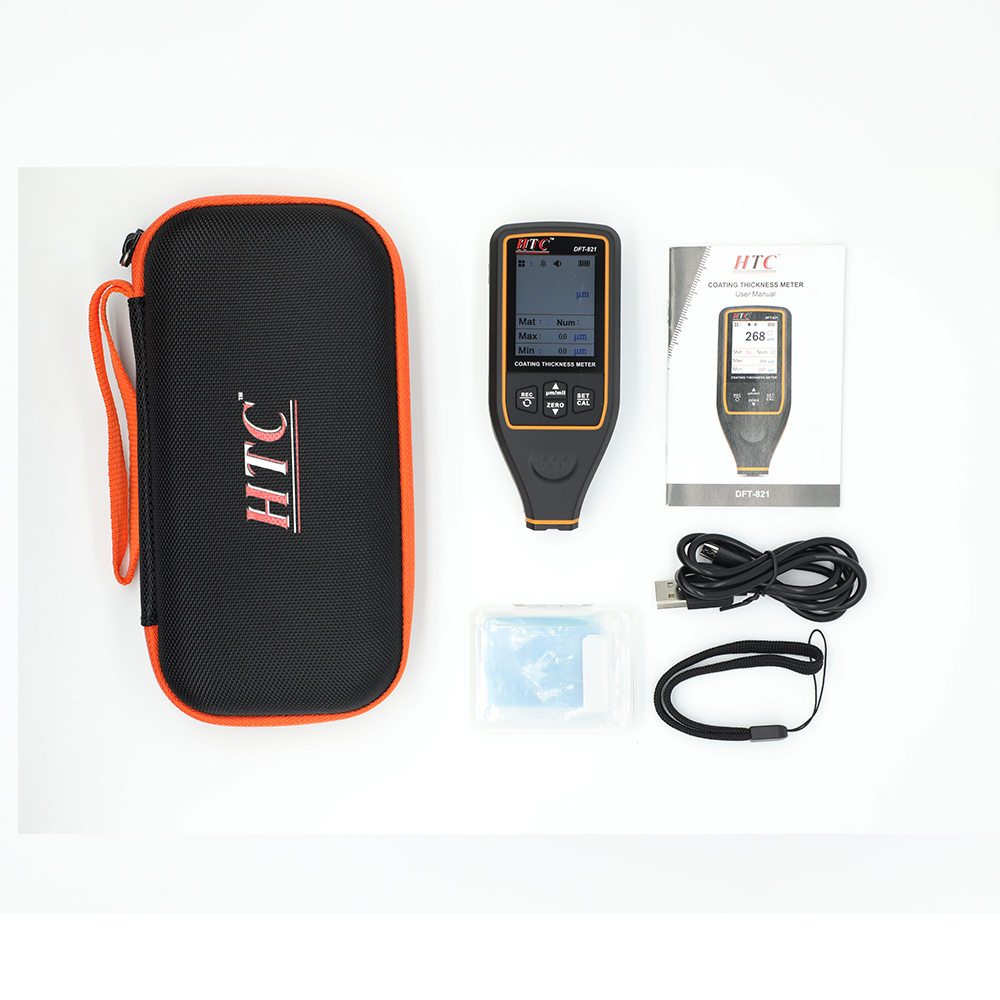

What's in the box?
|
Rating & Reviews
Rating
| Measuring range | magnetic material 0~1700 m; non magnetic material 0~1700 m |
| Resolution | 0.1 m @ (0~99.9 m); 1 m @ (100~1700 m) |
| Indication error | ±(2+2%*H) m @ (0~500 m) ±(2.5%*H) m @ (500~1700 m) |
| Min measuring area | magnetic material 25×25mm; non magnetic material 25×25mm |
| Min curvature | convexity 5mm; concave 30mm |
| Min substrate thickness | magnetic material 0.2mm; non magnetic material 0.05mm |
| Screen | 2 inches color screen |
| Memory | 8 groups and each 32 sets of data |
| Data Export | USB port connecting PC to export |
| Battery specification | 3.7V 850mAh lithium battery |
| Working temp and humidity | 0ºC~50 C, 10%~80%RH |
| Storage temp and humidity | -10ºC~60 C, 10%~70%RH |
| Dimension | 120x52x26mm |
