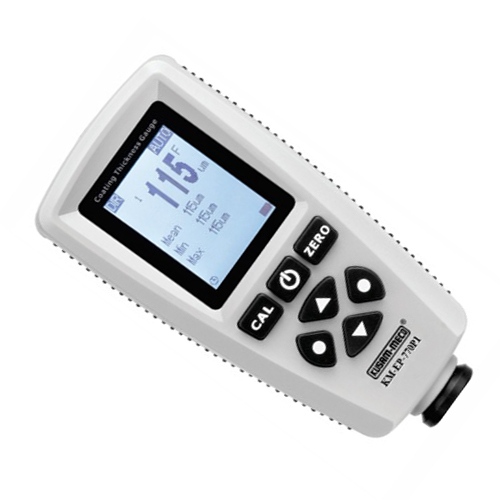

Kusam Meco KM -EP-770 0 to 2000μm Digital Coating Thickness Gauge
Click To Zoom
Kusam Meco KM -EP-770 0 to 2000μm Digital Coating Thickness Gauge
Kusam Meco KM -EP-770 0 to 2000μm Digital Coating Thickness Gauge
This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, & insulating coatings, e.g. pain & anodizing coatings on non-ferrous metals.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 13,900
(GST inclusive price) i-
Base Value: ₹ 11779.7
-
GST: (18) % ₹ 2120.3
-
Total Value ₹ 13900
₹22,880.00
( - 23% OFF )
Description
Key Features
- 128 * 128 dot matrix LCD display, standard menu operations
- Two measure mode : Single & continuous
- Two group mode : direct (DIR) & General(GEN), readings will be lost when power off in direct mode, & not be lost in general mode. Readings can be stored for each group.
- Zero point calibration & multi-point calibration (up to 4 points ) for each group.
- User can recall, delete specified readings, or delete group readings.
- Statistics display : mean, minimum, maximum & standard deviation.
- Three probe mode : auto, magnetic & eddy current.
- User can set high or low limit alarm for each group.
- Power off automatically.
- USB interface to data transmission.
- Low battery & Error indication
Optional Accessories
- Substrate
- Standard Foil
- CD
- USB Cable
What's in the box?
|
Rating & Reviews
Rating
● Probe : Probe F ; Probe N
● Measuring Principle : Magnetic induction; Eddy Currents
● Measuring range : 0 to 2000mm (0 to 78.7mils)
● Accuracy : ±(2.5% + 1mm); ±(2.5% + 0.039 mils)
● Resolution : 0mm ~ 99.9mm(0.1mm); 100mm ~ 999mm(1mm) >1000mm(0.01mm)
● Calibration : One point to four point calibration, Zero point calibration
● Data Group : One direct group (readings not be stored to memory) Four general groups (max. 320 readings) NOTE : Each group have individual statistics, alarm limit settings & calibration
● Statistics : No. of readings, mean, minimum, maximum & standard deviation
● Units : mm, mm, mils
● Alarm : User can set the high / low alarm limit Alarm icon displayed on LCD when over the limit
● Minimum curvature radius convex : 5mm
● Minimum curvature radius concave : 25mm
● Minimum measuring area : Diameter 20mm
● Minimum thickness of substrate : 0.2mm 0.05mm
● Maximum measuring rate : Two readings per second
● Operating Temperature : 0 ~ 50°C (32 ~ 122°F); Humidity:20% ~ 90%RH
● Storage Temperature : -10 ~ 60°C (14 ~ 140°F)
● Computer interface : Download data via USB
● Power Supply : Two 1.5V AAA battery
● Standard compliance : CE ROHS FCC ISO2178 ISO2360
● Dimension : Approx.110 x 53 x 24mm
● Weight : Approx. 80g.
