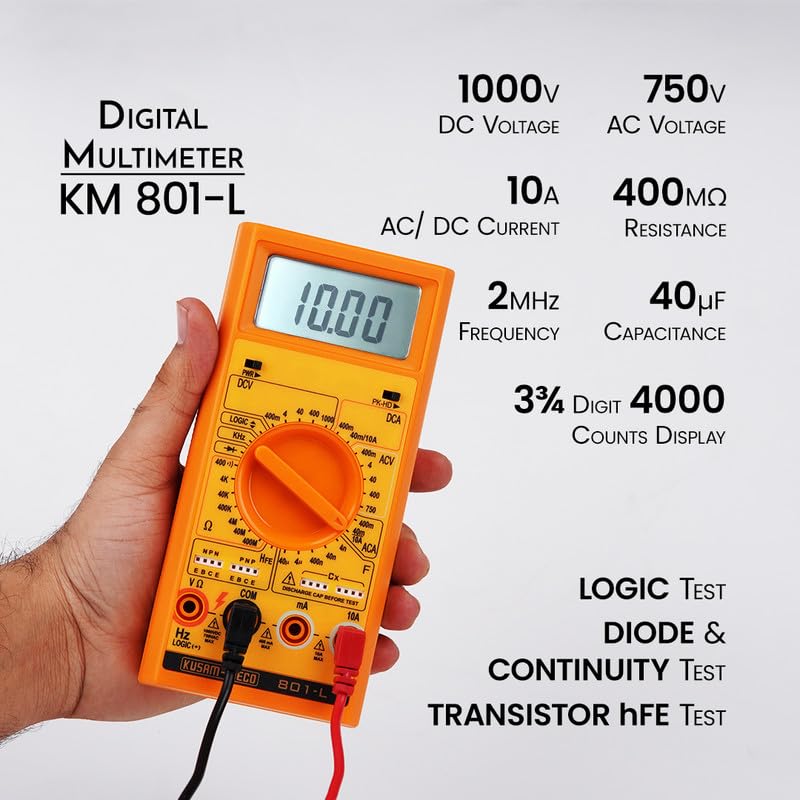

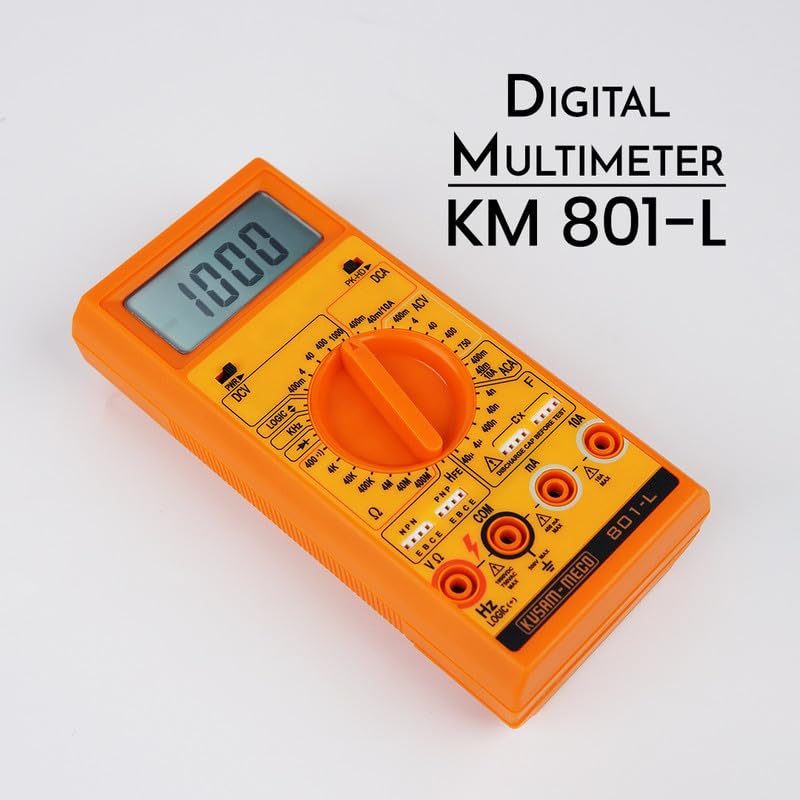

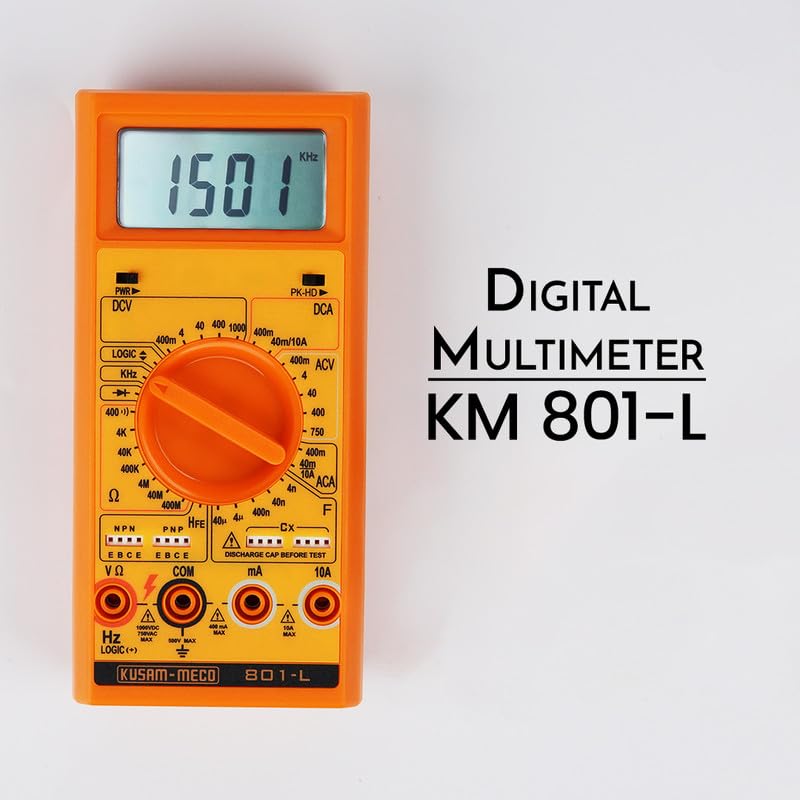

Kusam Meco 801-L 3 ¾ DIGIT 4000 Counts Large Display Digital Multimeter
Click To Zoom
Kusam Meco 801-L 3 ¾ DIGIT 4000 Counts Large Display Digital Multimeter
Kusam Meco 801-L 3 ¾ DIGIT 4000 Counts Large Display Digital Multimeter
This multimeter is designed for professionals in various fields, offering a range of functions for accurate electrical and electronic troubleshooting and measurement.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 2,759
(GST inclusive price) i-
Base Value: ₹ 2338.1
-
GST: (18) % ₹ 420.9
-
Total Value ₹ 2759
₹4,550.00
( - 19% OFF )
Description
Key Features
- Industrial Grade Rugged Digital Multimeter
- Automatic Zero adjustment
- Peak Hold Function
- OverLoad Protection 500V DC or AC rms
- Auto range on Frequency range & measurement upto 2 MHz.
- Logic Test, Diode & Continuity Test & Transistor hFE Test.
- Low battery indication
What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Sensing | Average Sensing |
| Basic Accuracy | ±(0.5%rdg + 1dgt) |
| Display | 3¾ digit Max. 3999 Counts Large LCD displa |
| Display Size | 17.5 mm |
| Polarity | Automatic, positive implied, (-) negative polarity indication. |
| Measurement Rate | 2.5 measurements / sec |
| Over range Indication | 'OL' is displayed. |
| Low battery | The “ ” sign is displayed when the battery voltage drops below the operating Voltage |
| Operating Temperature | 0°C to 45°C; < 70%R.H |
| Storage Temperature | -20°C to 60°C; < 80%R.H. (With Battery Removed) |
| Power | Single, Standard 9V battery. |
| Dimension | : 170(L) x 80(W) x 40(H)mm |
| Weight | Approx. 250g (including battery) |
TECHNICAL
| AC VOLTAGE | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 400 mV | 100 mV | ±(1.0%rdg + 4dgts ) |
| 4 V | 1 mV | |
| 40 V | 10 mV | |
| 400 V | 100 mV | |
| 750 V | 1 V | ±(1.5%rdg + 4dgts ) |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 400 mV | 100 mV | ±(0.5%rdg + 1dgt) |
| 4 V | 1 mV | |
| 40 V | 10 mV | |
| 400 V | 100 mV | |
| 750 V | 1 V | |
| AC CURRENT[(Avg. Sine Wave()50Hz~500Hz)] | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 40 mA | 10 mA | ±(1.5%rdg + 4dgts) |
| 400 mA | 100 mA | |
| 10 A | 10 mA | ±(3.5%rdg + 4dgts) |
| DC CURRENT | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 40 mA | 10 mA | ±(1.0%rdg + 1dgt) |
| 400 mA | 100 mA | |
| 10 A | 10 mA | ±(3.0%rdg + 1dgt) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 4 nF | 1 pF | ±(5.0%rdg + 10dgts) |
| 40 nF | 10 pF | |
| 400 nF | 100 pF | |
| 4 mF | 1 nF | |
| 40 mF | 10 nF | |
| FREQUENCY | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 2 MHz | 1 Hz | ±(0.1%rdg + 1dgt) |
| RESISTANCE | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 400 W | 0.1 W | ±(0.8%rdg + 4dgts) |
| 4 KW | 1 W | ±(0.8%rdg + 2dgts) |
| 40 KW | 10 W | |
| 400 KW | 100 W | |
| 4 MW | 1 KW | |
| 40 MW | 10 KW | ±(3.0%rdg + 4dgts) |
| 400 MW | 100 KW | ±(10%rdg - 10dgts) |
| DIODE TEST | ||
| Test Current | Open Circuit Voltage | Accuracy |
| 1.0 ± 0.6mA | 3.0V MAX | ±(3.0%rdg + 3dgts) |
| CONTINUITY TEST | |
| Audible Sound Buzzer | Less than 100W |
| TRANSISTOR hFE TEST | ||
| Range | Vce Basic | DC Current |
| 0 to 1000 | <3.5V | 10 mA |
| LOGIC TEST | |
| Threshold | |
| Logic Hi(~) | Logic Lo(?) |
| 2.8V ± 0.8V | 0.8V ± 0.5V |
