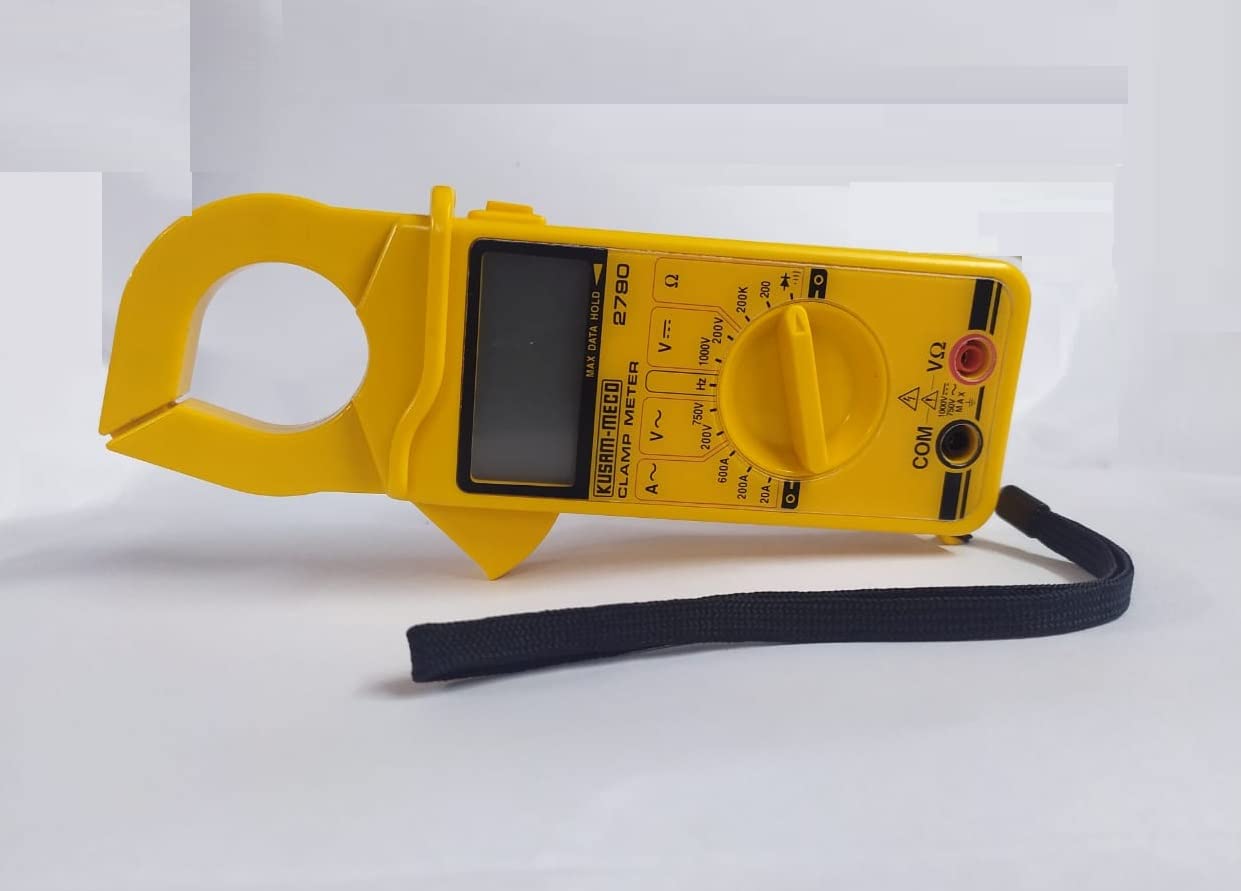

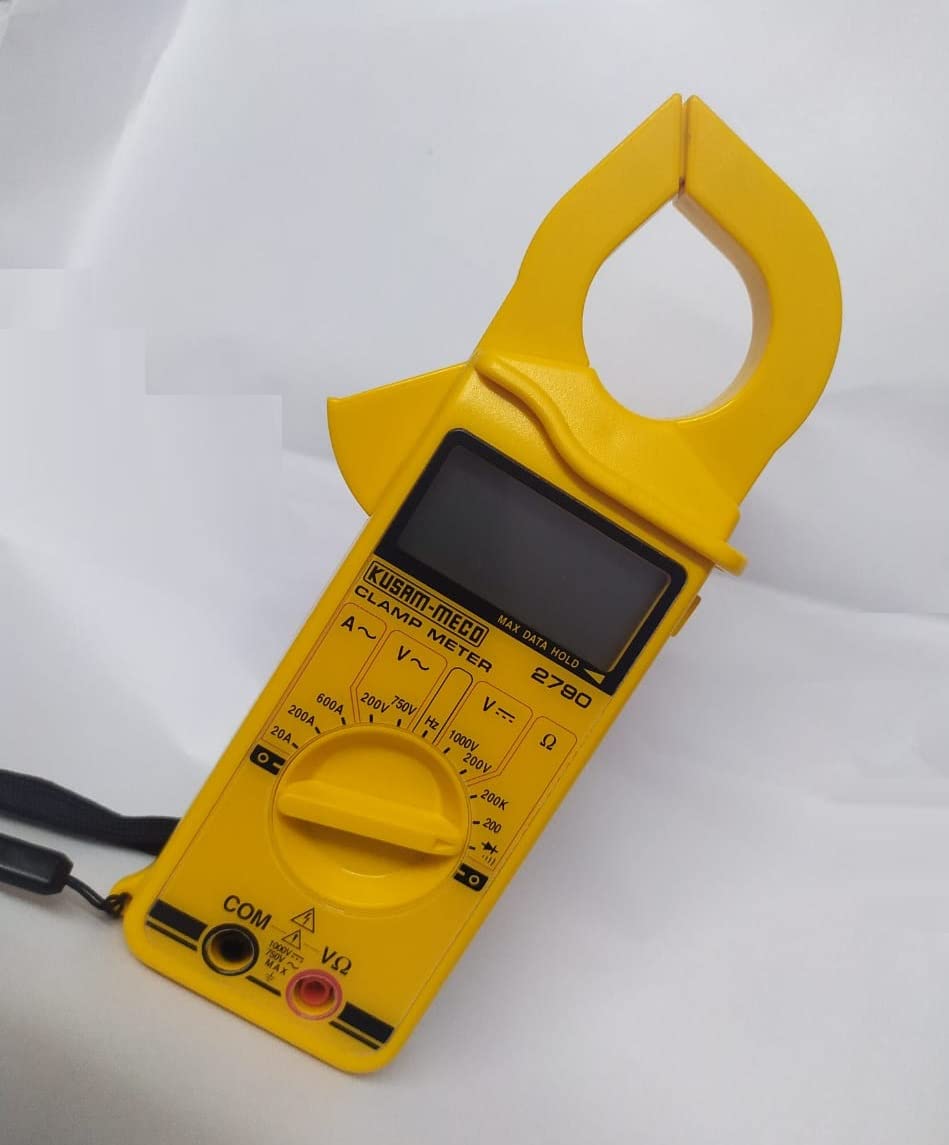

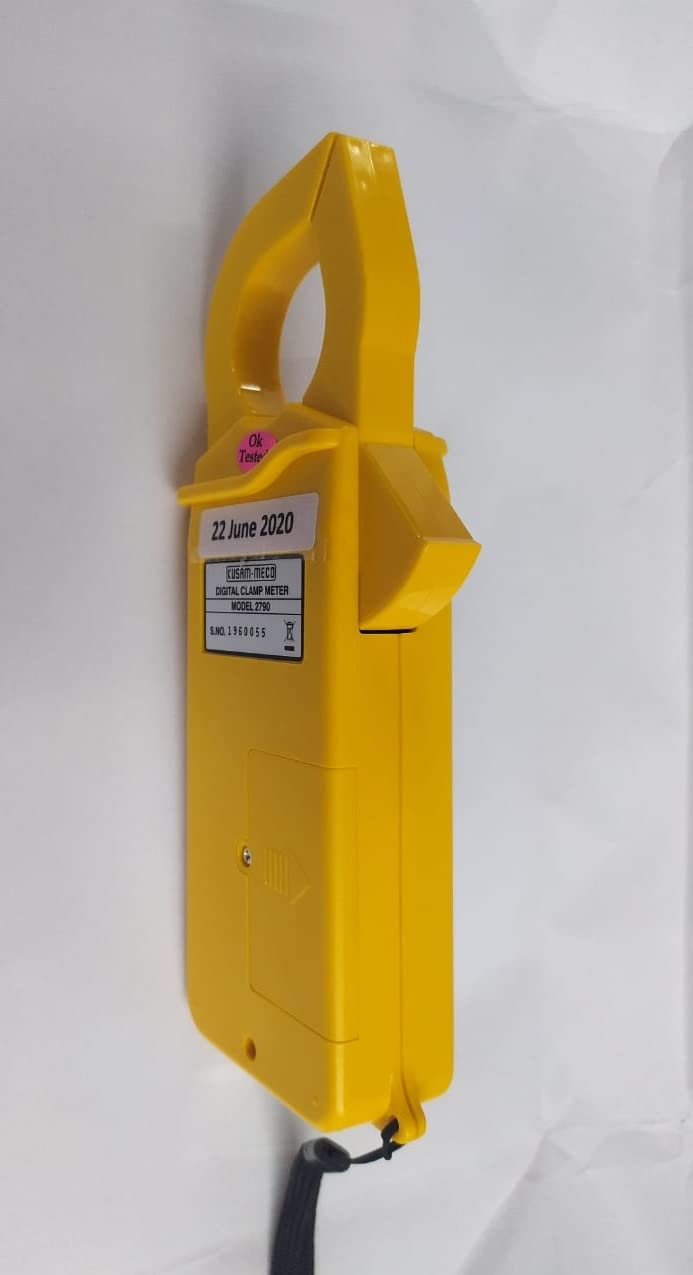

Kusam Meco 2790 Digital Clamp Meter
Click To Zoom
Kusam Meco 2790 Digital Clamp Meter
Kusam Meco 2790 Digital Clamp Meter
The Digital Clamp meter Model - 2790, a robust and dependable 3½ digit handheld instrument, offers stable performance and a variety of measurement capabilities. This versatile tool goes beyond basic AC/DC Voltage, AC Current, and Resistance measurements, also providing functionality for Diode testing and Continuity checks. Its design emphasizes ease of use and reliability across its various measurement settings.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 3,599.00
(GST inclusive price) i₹4,990.00
( - 28% OFF )
Description

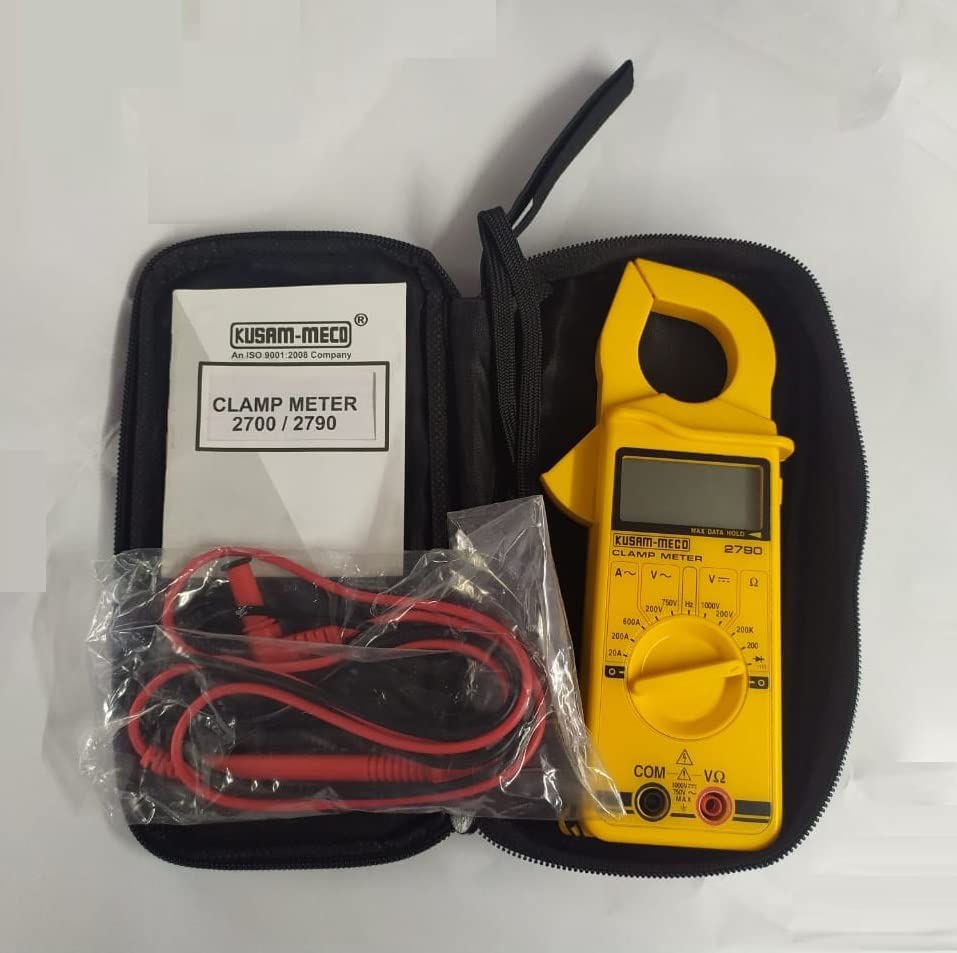

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Sensing | Average sensing. |
| Jaw opening size | 32 mm |
| Display | 3½ digit 1999 counts LCD display with automatic sign & functions. |
| Over range indication | MSB (highest) digit O |
| Low battery | The symbol “ ” is displayed when the battery voltage drop below the o |
| Measurement rate | 3 measurements ï per second nominal |
| Power supply | Single standard 9V battery |
| Operating Temperature & Humidity | 0°C to 50°C; < 70% |
| Storage Temperature & Humidity | -20°C to 6°C; < 80% R.H With battery removed. |
| Dimension | 19.2(L) x 8.2(W) x 3.3(H) cm |
| Weight | approx. 250gms. (Including battery) |
| AC CURRENT (50~60 Hz) | ||
| Range | Resolution | Accuracy |
| 20 A | 0.01 A | (1.5%rdg + 4dgts) |
| 200 A | 0.1 A | (1.5%rdg + 4dgts) |
| 600 A | 1 A | (1.5%rdg + 4dgts) |
| AC VOLTAGE (50~500 Hz) | ||
| Range | Resolution | Accuracy |
| 200 V | 0.1 V | (3%rdg + 4dgts) |
| 750 V | 1 V | |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 2 V | 1m V | |
| 200 V | 0.1 V | (1.5%rdg + 1dgt) |
| 1000 V | 1 V | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 200 | 0.1 | (1.5%rdg + 3dgt) |
| 200 K | 100 | |
| FREQUENCY (Autoranging) | ||
| Range | Resolution | Accuracy |
| 2 kHz | 1 kHz | (0.5%rdg + 3dgts) |
| 20 kHz | 10 kHz | |
| DIODE TEST | |
| Test Current | 1.0 0.6mA |
| Test Voltage | 3.2V max. |
| CONTINUITY BEEPER | |
| Threshold | < 100Ω |
| Response Time | < 100mS |
