Metravi CTG-03 Coating Thickness Gauge with USB Interface
Click To Zoom
Metravi CTG-03 Coating Thickness Gauge with USB Interface
Metravi CTG-03 Coating Thickness Gauge with USB Interface
Coating Thickness Gauge with USB Interface. Single probe for coating measurements for both ferrous and non-ferrous metal substrates. Full colour, auto-rotation TFT screen. Self calibratable. Measures upto 2000μm. Also measure Temperature, Humidity & Dew Point temperature. Data logging 50 sets. USB interface for PC analysis software.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 13,490
(GST inclusive price) i-
Base Value: ₹ 11432.2
-
GST: (18) % ₹ 2057.8
-
Total Value ₹ 13490
₹18,158.00
( - 26% OFF )
Description
Key Features
- 2.4” TFT colour LCD display
- Temperature, Humidity and Dew Point temperature measurements

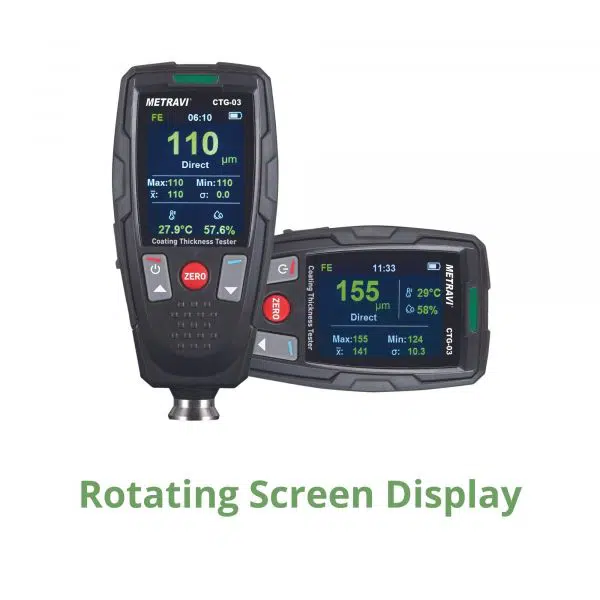

- Auto-rotation Screen: 0°, 90°, 180°, 270°
- Stability test
- Continuous test
- Set auto power-off time
- SSPC mode
- Warning with beeper and backlight flash, 3-Colour LED indication
- Menu operation system
- Working modes: DIRECT, GROUP and SSPC
- AVG, MAX, MIN, Stand and Deviation (S.DEV) display
- Basic, one-point and SSPC mode calibration
- Low battery, error indications

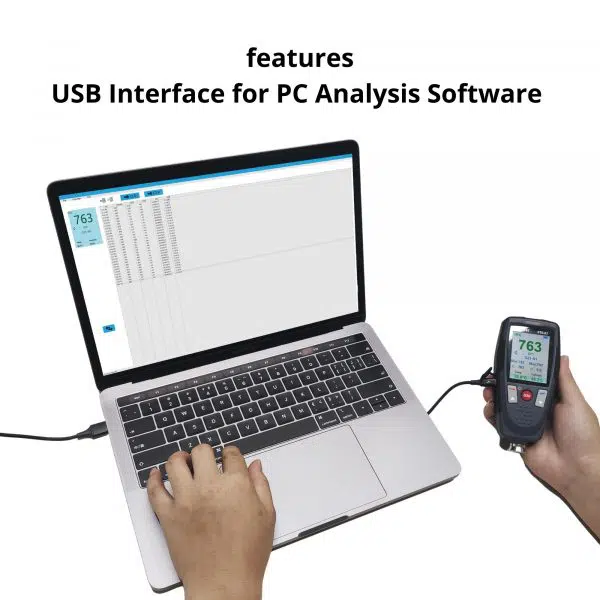

- USB interface for PC analysis software
- 10 levels of adjustable LCD backlight brightness
What's in the box?
|
Rating & Reviews
Rating
| General Specification | ||
| Sensor Probe | F | N |
| Working Principle | Magnetic Induction | Eddy Current Principle |
| Measuring Range | 0 ~ 2000μm | 0 ~ 2000μm |
| Guaranteed to Lerance (of reading) | (±2%±2)μm | (±2%±2)μm |
| Repeatability | (±1%±1)μm | (±1%±1)μm |
| Low Range Precision | 0.1μm | 0.1μm |
| Minimum Curvature Radius | 1.5mm | 3mm |
| Diameter of Minimum Area | 7mm | 5mm |
| Basic Critical Thickness | 0.5mm | 0.3mm |
| Temperature Range | 0 to 50°C / 32 to 122°F | |
| Temperature Accuracy | ±1.2°C | |
| Humidity Range | 0 to 100%RH | |
| Humidity Accuracy | +3.2%RH at 20%-70%; +4%RH other | |
| Size (HxWxD) | 35 x 64 x 137mm | |
| Weight | 175g | |
