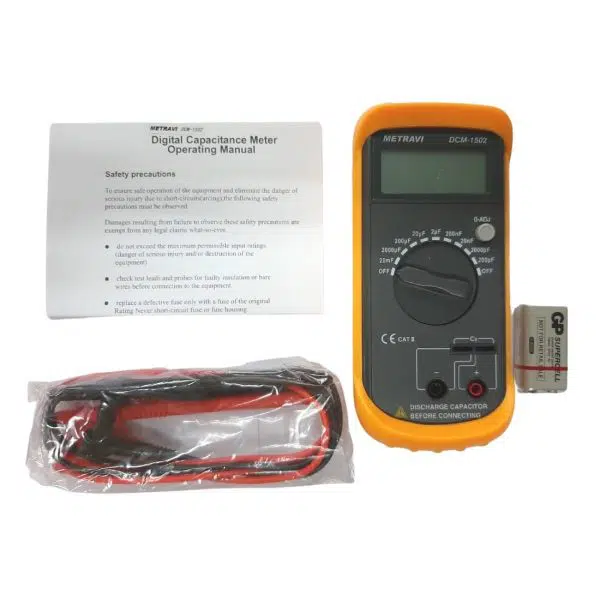

Metravi DCM-1502 Capacitance Meter
.webp "Metravi DCM-1502 Capacitance Meter")
Click To Zoom
Metravi DCM-1502 Capacitance Meter
Metravi DCM-1502 Capacitance Meter
3-1/2 Digits, LCD, Zero Adjustment, up to 20mF Capacitance Measurement.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 2,860.00
(GST inclusive price) i₹3,846.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | LCD (Liquid Crystal Display) Max. Indication 1999, 3½ digits |
| Measurement | Capacitance |
| Range | Single 9 position, whole range value (from 0.1pF to 20000uF) |
| Zero Adjustment | Manual (range:±20pF) |
| Calibrate Adjustment | Have two internal adjustments. One is panel Zero adjustment. |
| Over range | Display shows "1". |
| Sampling Time | 0~5second |
| Operating Temp | 0°C to 40°C |
| Operating Humidity | 80% max. R.H. |
| Power Supply | Single, standard 9 volt battery. NEDA 1604IEC6F22 |
| Battery Life (basic type) | Approx.: 200 hours (typical) |
| Zinc-Carbon type approx. | 100 hours |
| Typical consumption current | 3~4mA (Range:200pF-200uF) |
| Technical Specification | ||||
| Range | Accuracy | Resolution | Test Frequency | Max Indication Value |
| 200 pF | ±(0.5%+1) | 0.1pF | 800Hz | 199.9pF |
| 20 F | 1pF | 800Hz | 1.999nF | |
| 20 nF | 10pF | 800Hz | 19.99nF | |
| 200 nF | 100pF | 800Hz | 199.9nF | |
| 2 uF | 1000 pF | 800Hz | 1.999uF | |
| 20 uF | 0.01uF | 80Hz | 19.99uF | |
| 200 uF | 0.1uF | 8Hz | 199.9uF | |
| 2000 uF | ±(2%+2) | 1uF | 8Hz | 1999uF |
| 20000 uF | 10uF | 8Hz | 1999(×10) uF | |
