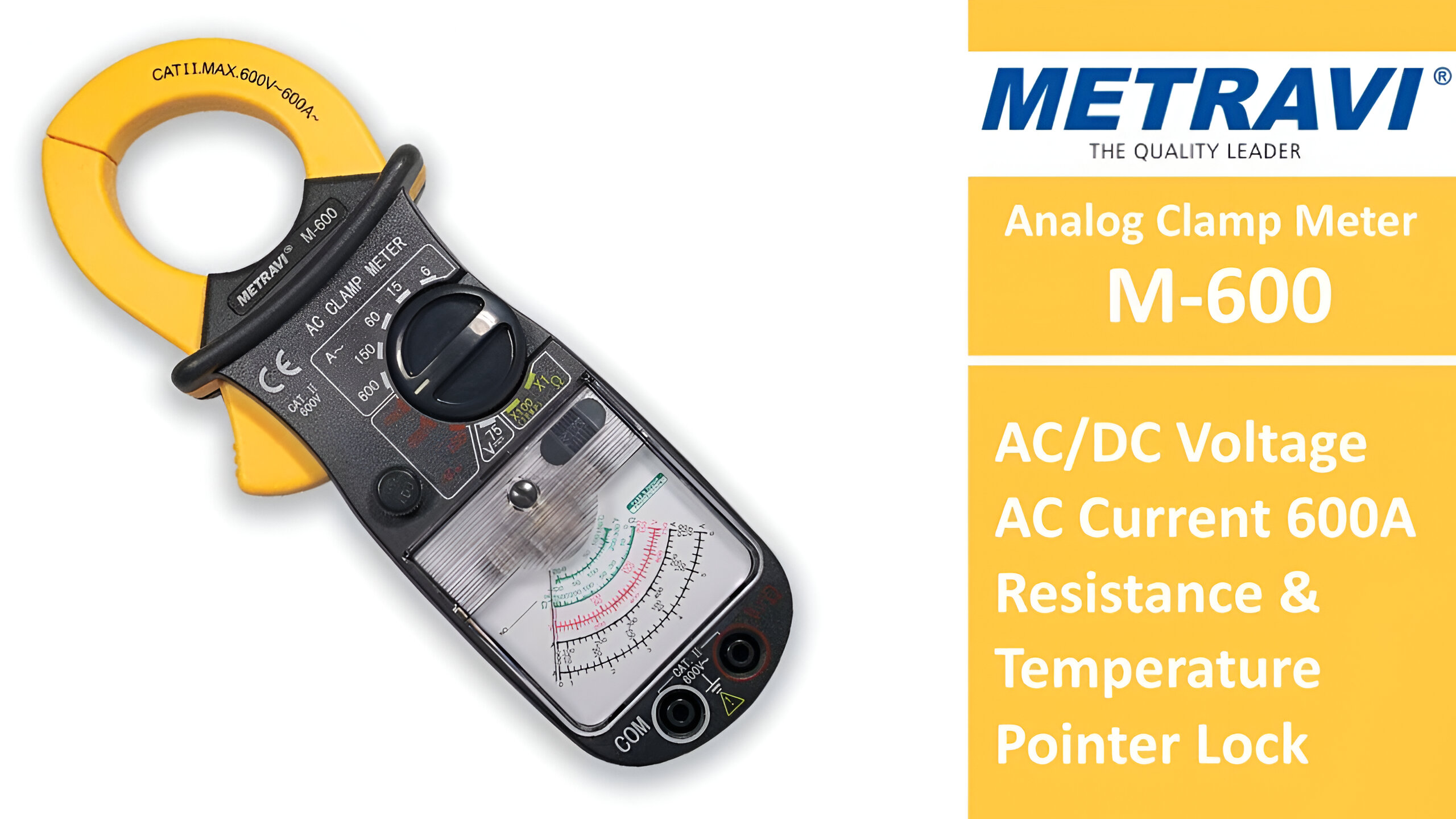

Metravi M-600 Analogue Clamp Meter
Click To Zoom
Metravi M-600 Analogue Clamp Meter
Metravi M-600 Analogue Clamp Meter
Temperature, Resistance, AC/DC Voltage, AC Current, and Clamp Jaw Diameter of 34 mm. Pointer Lock
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,210
(GST inclusive price) i-
Base Value: ₹ 2720.3
-
GST: (18) % ₹ 489.7
-
Total Value ₹ 3210
₹4,590.00
( - 30% OFF )
Description
Key Features
- All five functions in one unit measuring AC current, AC voltage, DC voltage resistance plus temperatures, and securing clamp is specially Designed convenient to operate by hand.
- Jaws with a max. opening size up to 34mm and safety Design with shielded test lead banana plugs and recessed input terminals.
- DC voltage range especially useful for checking emergency power with 75V DC range.
- Provided with a scale for temperature measurement and a terminal to prevent electric shock and the scale is efficiently designed for readings with almost no error.
- Pointer lock device to freeze readings.
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Ranges AC current | 6/15/60/150/600A |
| Voltage | 150/300/750V |
| DC voltage | 75V |
| Resistance | 0-2kΩ (mid-scale 502) RX 1 |
| Temperature | 0-200ΚΩ (mid-scale 5ΚΩ)R X 100 |
| Accuracy AC current | ±3% of full scale (6/15/150A range) ±5% of full scale (600A range) |
| Overload protection | Protected by 0.5A/250V(5.2x21) fuse and diode ranges |
| Frequency | 50HZ/60HZ |
| Core conductor diameter | Approx. 34 mm max. |
| Dimensions | 214mm (H) x85mm (W) x43mm (D) |
| Weight | Approx. 350g (battery included) |
| Power source | One 1.5V UM-3 'AA' battery or equivalent. |
