HTC DM-86-Digital Multimeter
Click To Zoom
HTC DM-86-Digital Multimeter
HTC DM-86-Digital Multimeter

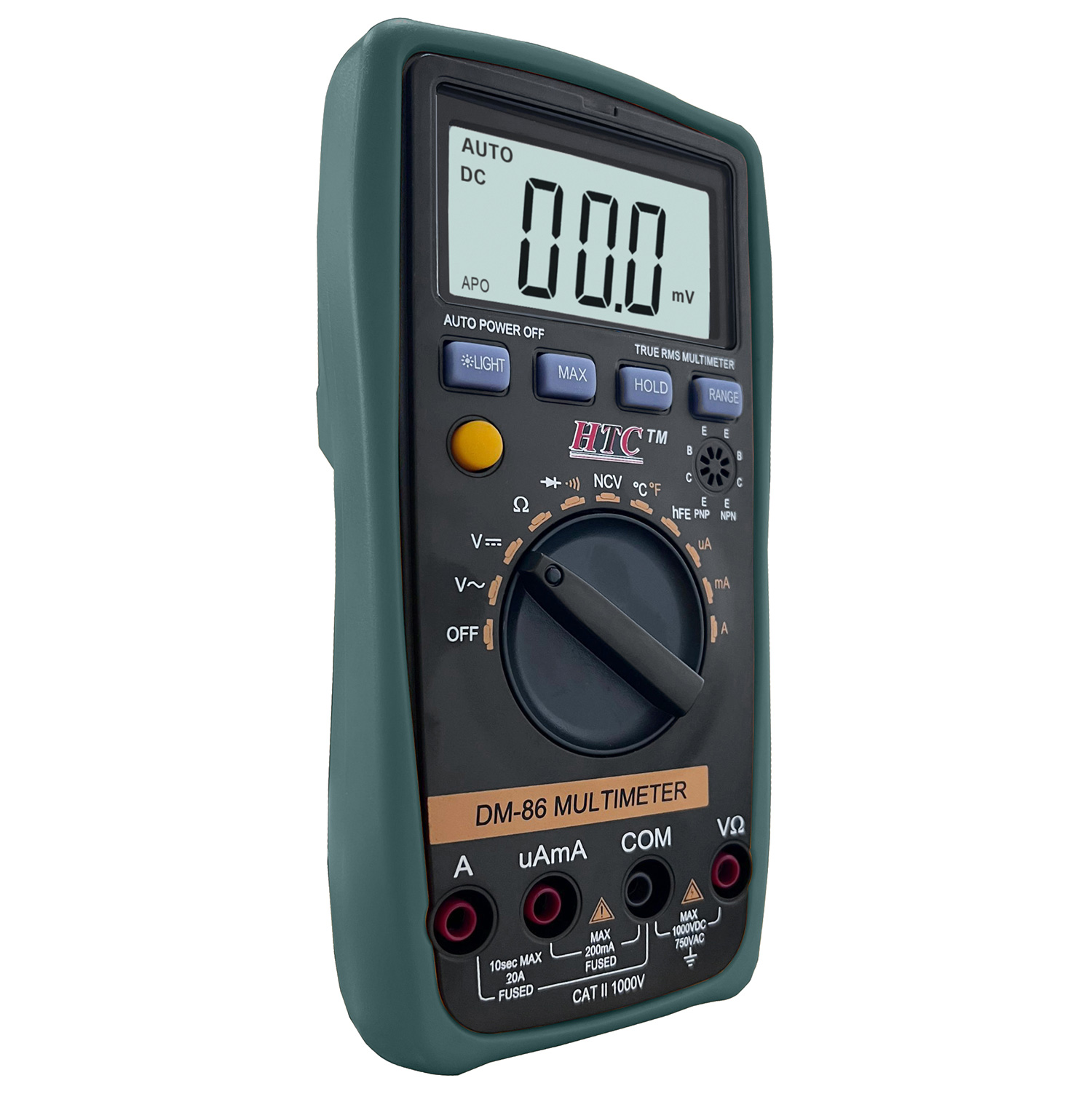

The HTC-DM-86 is a 3 ½ digit digital multimeter with a backlit LCD. It features non-contact voltage detection (NCV), auto power off, and measures AC/DC voltage/current, resistance, and offers diode/transistor testing.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 1,464
(GST inclusive price) i-
Base Value: ₹ 1240.7
-
GST: (18) % ₹ 223.3
-
Total Value ₹ 1464
₹1,677.00
( - 13% OFF )
Description
Key Features
- 3½ Digit Manual Multimeter
- 1,999 Count
- MAX / MIN Mode with Data Hold
- hFE Test
- Auto Power Off
- TRUE RMS
- NCV
- Power : 9V (6F22) x 1
- Dimension : H170 x W86 x D35 mm
- Weight : Approx. 290 Gms
What's in the box?
|
Rating & Reviews
Rating
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±0.5% of rdg ±4 digits |
| 2V | 1mV | |
| 20V | 10mV | |
| 200V | 100mV | |
| 1000V | 1V | ±1.0% of rdg ±4 digits |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 2V | 1mV | ±0.8% of rdg ±6 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 750V | 1V | ±1.0% of rdg ±6 digits |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 200µA | 0.01µA | ±1.0% of rdg±5 digits |
| 2000µA | 1µA | |
| 20mA | 10µA | |
| 200mA | 100µA | |
| 2A | 1mA | |
| 10A | 10mA | ±2.0% of rdg±10 digits |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 200µA | 0.01µA | ±1.5% of rdg±5 digits |
| 2000µA | 1µA | |
| 20mA | 10µA | |
| 200mA | 100µA | |
| 2A | 1mA | |
| 10A | 10mA | ±2.0% of rdg±10 digits |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
200Ω | 0.1Ω | ±2.0% of rdg±10 digits |
2KΩ | 1Ω | |
20KΩ | 10Ω | |
200KΩ | 100Ω | |
2MΩ | 1kΩ | |
| 200MΩ | 10KΩ | ±1.5% of rdg±3 digits |
| Temperature | ||
| Range | Resolution | Accuracy |
| -40~1000ºC | 1ºC | <400ºC±(1.0% +5) digit ≥400ºC±(1.5% +15) digit |
| 0~1832ºF | 1ºF | <750ºF±(1.0% +5) digit ≥750ºF±(1.5% +15) digit |
| TRANSISTOR hFE TEST (0-1000) | ||
| Range | Test Range | Test Current / Test Voltage |
NPN & PNP | 0~1000 | Base current is approximate 15µA Vce about 1.2V |
