HTC DM-91 Digital Multimeter
Click To Zoom
HTC DM-91 Digital Multimeter
HTC DM-91 Digital Multimeter
The HTC DM-91 is a 3½ digit digital multimeter with a 1999 count display. It offers measurements for AC/DC voltage, current, resistance, and continuity, featuring a terminal interlock for safety.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 1,620
(GST inclusive price) i-
Base Value: ₹ 1372.9
-
GST: (18) % ₹ 247.1
-
Total Value ₹ 1620
₹1,852.00
( - 13% OFF )
Description
Key Features
- 3½ Digit Manual Multimeter
- 1,999 Count
- hFE Test
- Auto Power Off under natural operation

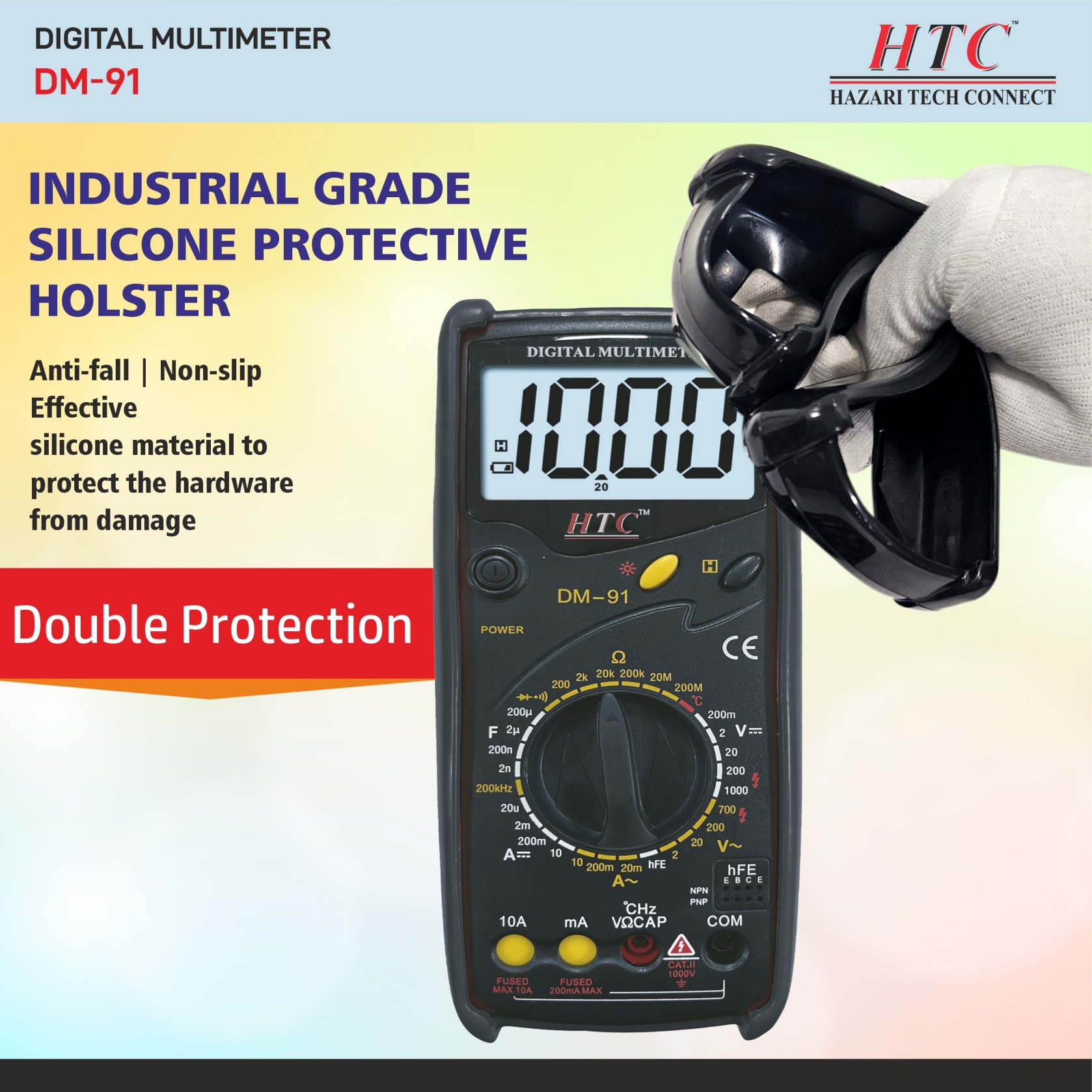

- Terminal Shutter Interlock Mechanism
- Transistor Testing
- Power : 9V (6F22) X 1

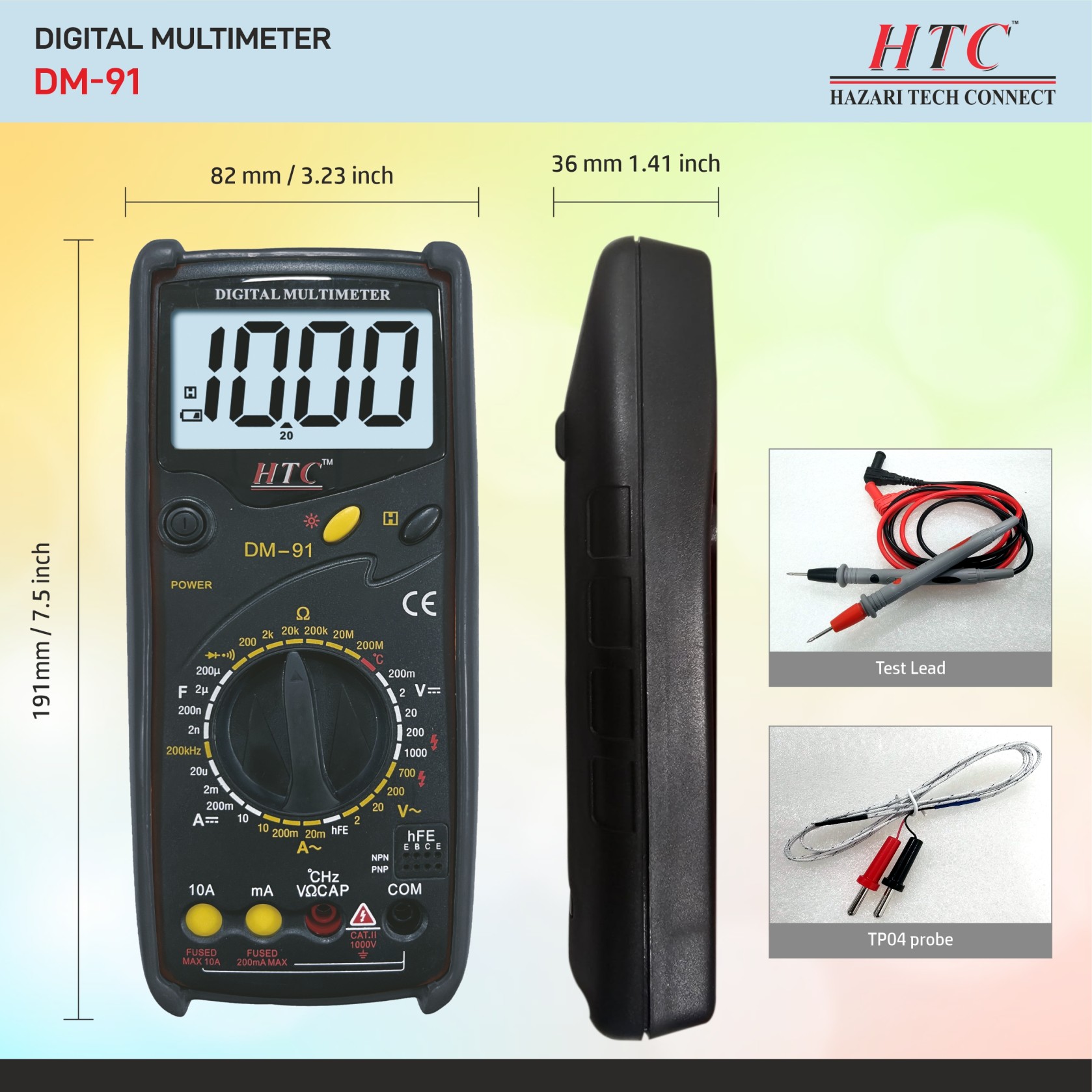

- Dimension : H191 x W82 x D36 mm
- Weight : Approx. 310 Gms
What's in the box?
|
Rating & Reviews
Rating
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 200mV | 0.1 mV | ±0.5% of rdg ±1 digit |
| 2V | 1mV | ±0.5% of rdg ±3 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 1000V | 1V | ±0.8% of rdg ±3 digits |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 2V | 1mV | ±1.0% of rdg ±5 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 700V | 1V | ±1.2% of rdg ±5 digits |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 20µA | 10nA | ±1.2% of rdg±3 digits |
| 2mA | 1µA | ±1.0% of rdg±3 digits |
| 200mA | 100µA | ±1.5% of rdg±5 digits |
| 10A | 10mA | ±2.0% of rdg±10 digits |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 20mA | 10A | ±1.2% of rdg±5 digits |
| 200mA | 100µA | ±2.0% of rdg±5 digits |
| 10A | 10mA | ±3.0% of rdg±10 digits |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±1.0% of rdg±10 digits |
| 2kΩ | 1Ω | ±1.0% of rdg±1 digits |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 20MΩ | 10kΩ | ±1.0% of rdg±5 digits |
| 200MΩ | 100kΩ | ±5.0% of rdg-10 digits±20 digits |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 2nF | 1pF | ±4.0% of rdg±3 digits |
| 200nF | 0.1nF | |
| 2µF | 1nF | |
| 200µF | 100nF | ±5.0% of rdg±3 digits |
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 200KHz | 100Hz | ±1.5% of rdg±10 digits |
| TEMPERATURE | ||
| Range | Resolution | Accuracy |
| -20~0ºC | 1ºC | ±5.0% of rdg±5 digits |
| 0~400ºC | ±1.0% of rdg±3 digits | |
| 400~1000ºC | ±2.0% of rdg±3 digits | |
| TRANSISTOR hFE TEST | ||
| Range | Test Range | Test Current / Voltage |
| NPN or PNP | 0-1000 | 1b=10µF/VCE=3A |
