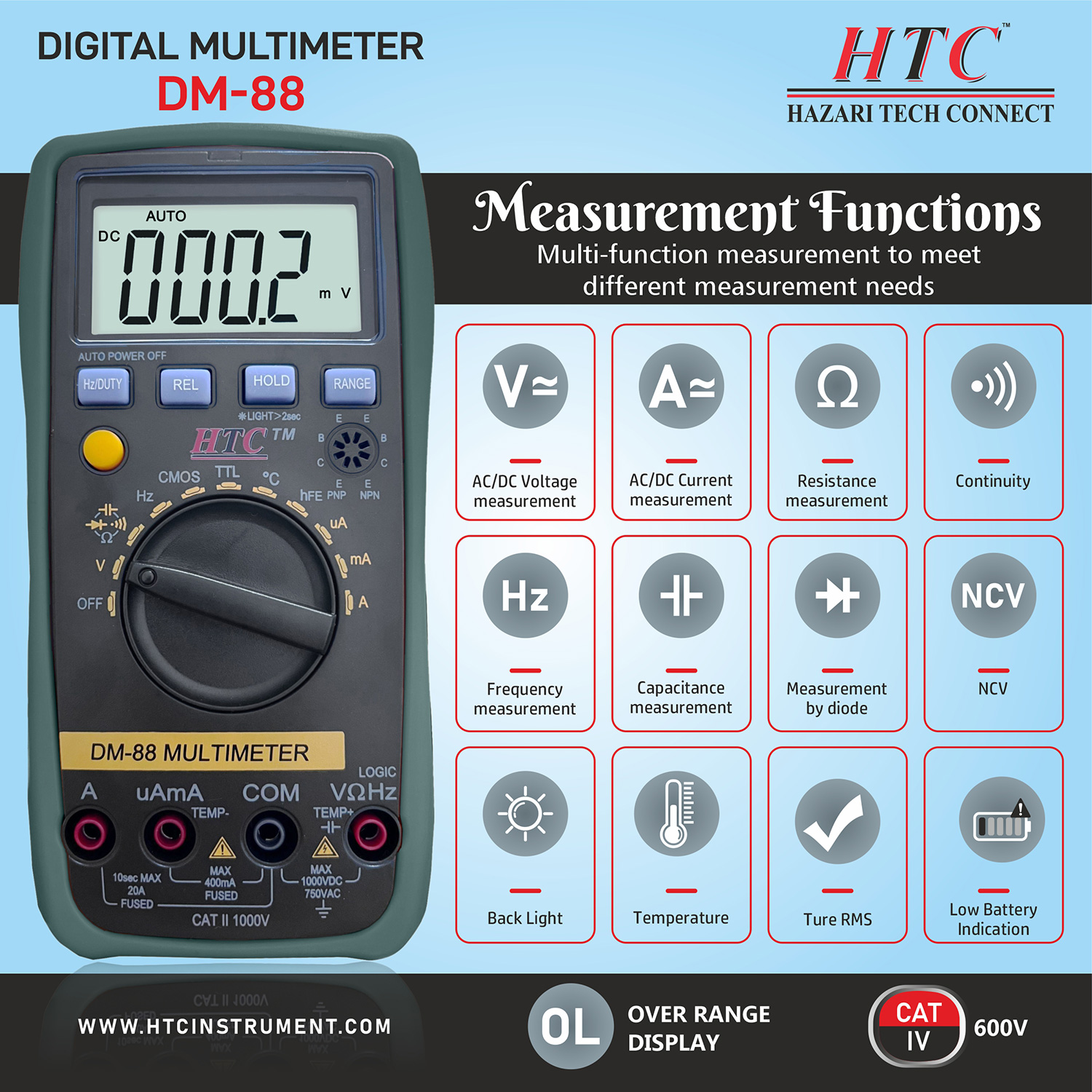

HTC DM-88 Digital Multimeter
Click To Zoom
HTC DM-88 Digital Multimeter
HTC DM-88 Digital Multimeter
This products comes with 3½ Digit Multmeter, AC / DC Current, Back light, Low Battery Indication, Frequency.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 2,132
(GST inclusive price) i-
Base Value: ₹ 1806.8
-
GST: (18) % ₹ 325.2
-
Total Value ₹ 2132
₹2,444.00
( - 13% OFF )
Description
Key Features
- 3½ Digit Manual Multimeter
- 3,999 Count
- hFE Test
- Auto Power Off
- TRUE RMS
- Duty Cycle
- COMS, TTL Logic Test
- Power : AAA 1.5V x 2
- Dimension : H170 x W86 x D35 mm
- Weight : Approx. 290 Gms
What's in the box?
|
Rating & Reviews
Rating
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400mV | 0.1 mV | ±0.5% of rdg ±4 digits |
| 4V | 1mV | |
| 40V | 10mV | |
| 400V | 100mV | |
| 1000V | 1V | ±1.0% of rdg ±4 digits |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400mV | 0.1 mV | ±1.5% of rdg ±15 digits |
| 4V | 1mV | ±0.8% of rdg ±6 digits |
| 40V | 10mV | |
| 400V | 100mV | |
| 750V | 1V | ±1.0% of rdg ±6 digits |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 400µA | 0.01µA | ±1.0% of rdg±5 digits |
| 4000µA | 1µA | |
| 40mA | 10µA | |
| 400mA | 100µA | |
| 4A | 1mA | |
| 20A | 10mA | ±2.0% of rdg±5 digits |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 400µA | 0.01µA | ±1.5% of rdg±5 digits |
| 4000µA | 1µA | |
| 40mA | 10µA | |
| 400mA | 100µA | |
| 4A | 1mA | |
| 40A | 10mA | ±2.0% of rdg±10 digits |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400Ω | 0.1Ω | ±0.8% of rdg±5 digits |
| 4kΩ | 1Ω | ±0.8% of rdg±1 digits |
| 40kΩ | 10Ω | |
| 400kΩ | 100Ω | |
| 4MΩ | 1kΩ | ±1.2% of rdg±5 digits |
| 40MΩ | 10kΩ | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 4nF | 1pF | ±5.0% of rdg±8 digits |
| 40nF | 10pF | ±3.5% of rdg±8 digits
|
| 40nF | 100pF | |
| 4µF | 1nF | |
| 40µF | 10nF | |
| 200µF | 100nF | ±5.0% of rdg±8 digits |
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 10Hz | 0.01Hz | ±0.5% of rdg±4 digits |
| 100Hz | 0.01Hz | |
| 1000Hz | 1Hz | |
| 10kHz | 10Hz | |
| 100kHz | 100Hz | |
| 1MHz | 1Hz | |
| 1MHz | 10kHz | |
| LOGIC TEST | ||
| Range | Resolution | Accuracy |
| TTL LOGIC | △ | >2.5V ±0.8V |
| ∇ | <0.8V ±0.5V | |
| CMOS LOGIC | △ | >4.0V ±1.0V |
| ∇ | <2.0V ±0.5V | |
| TEMPERATURE | ||
| Range | Resolution | Accuracy |
| (-40~1000)ºC | <400ºC±1% of rdg±5 digits | 1ºC |
| >400ºC±1.5% of rdg±15 digits | ||
