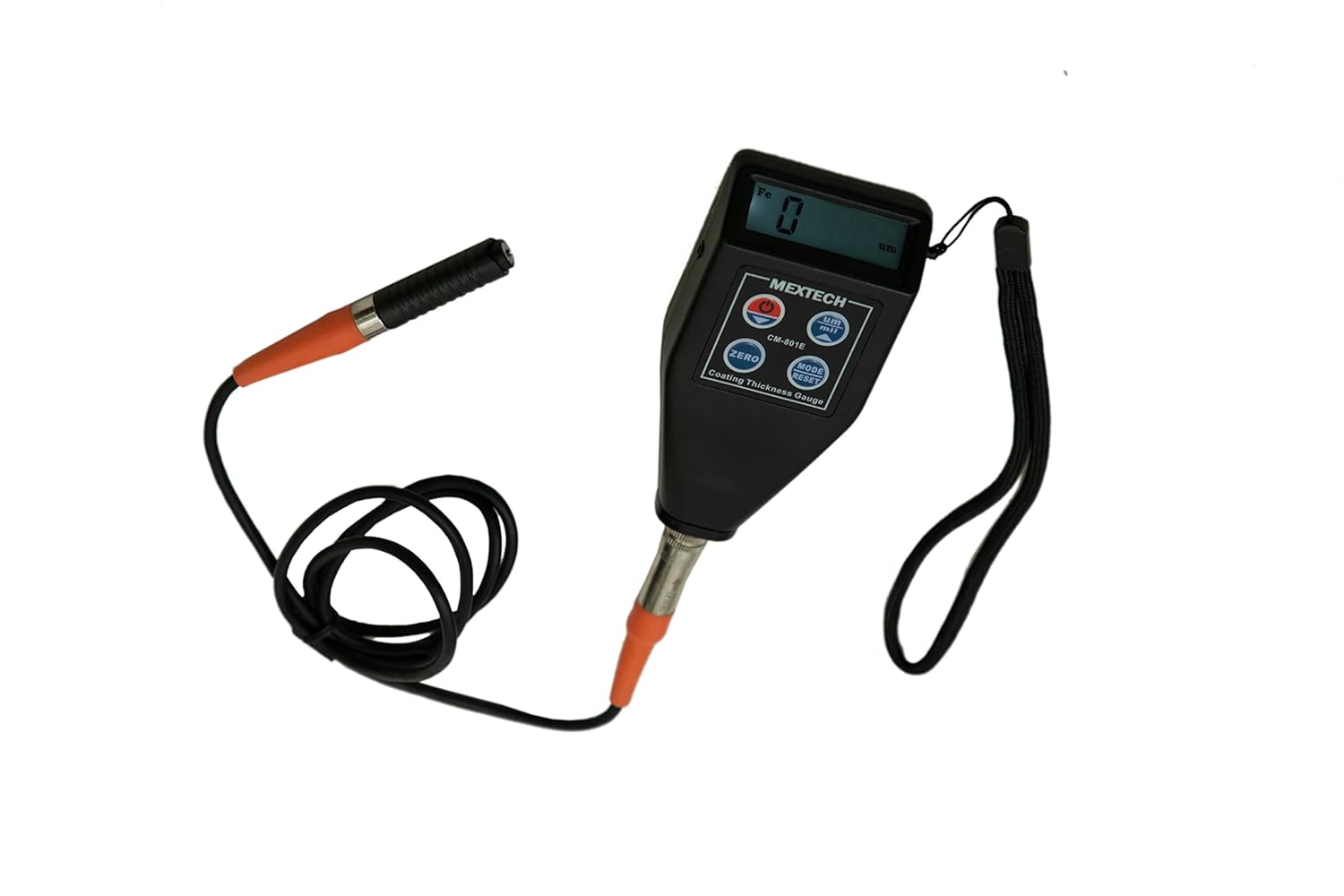

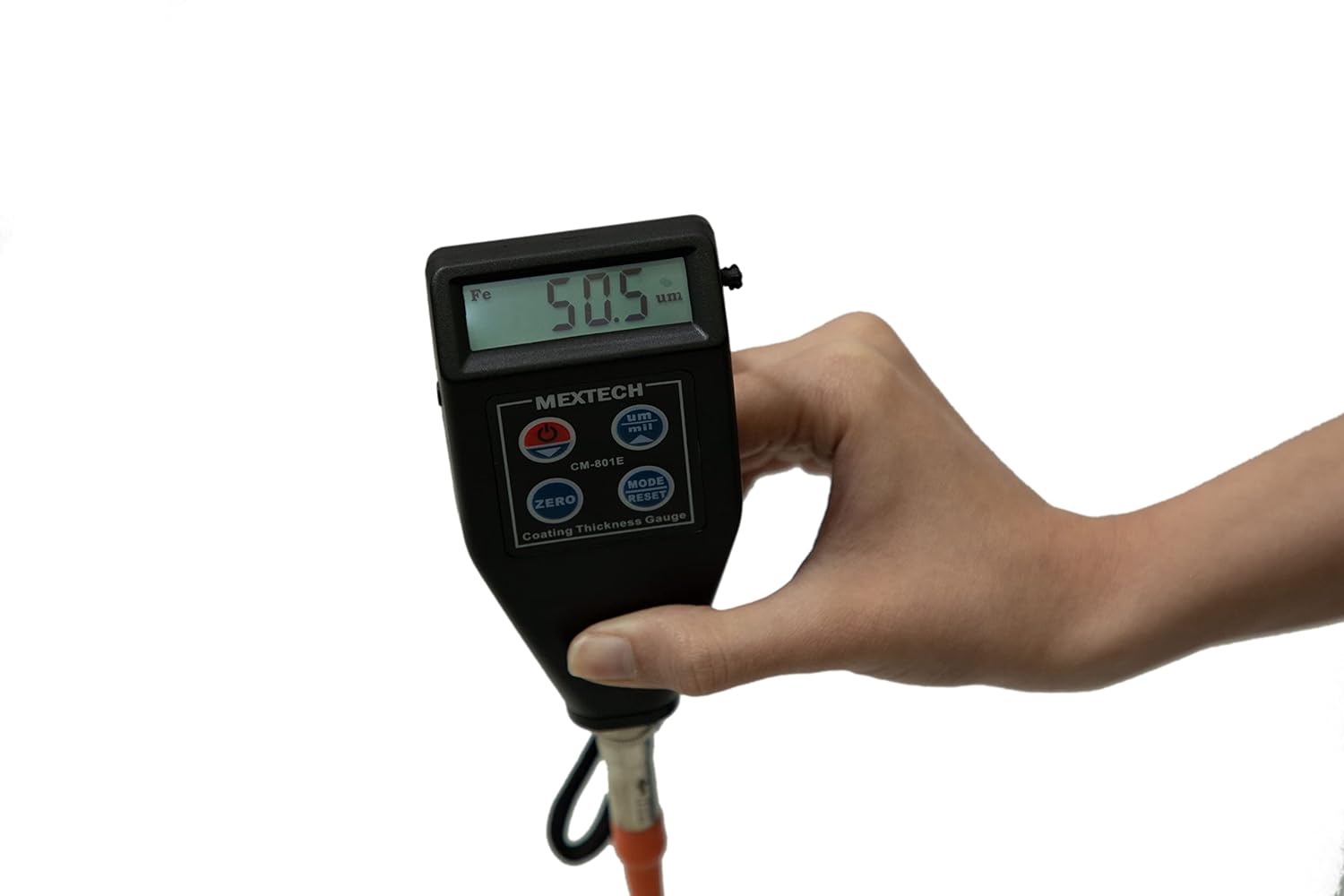

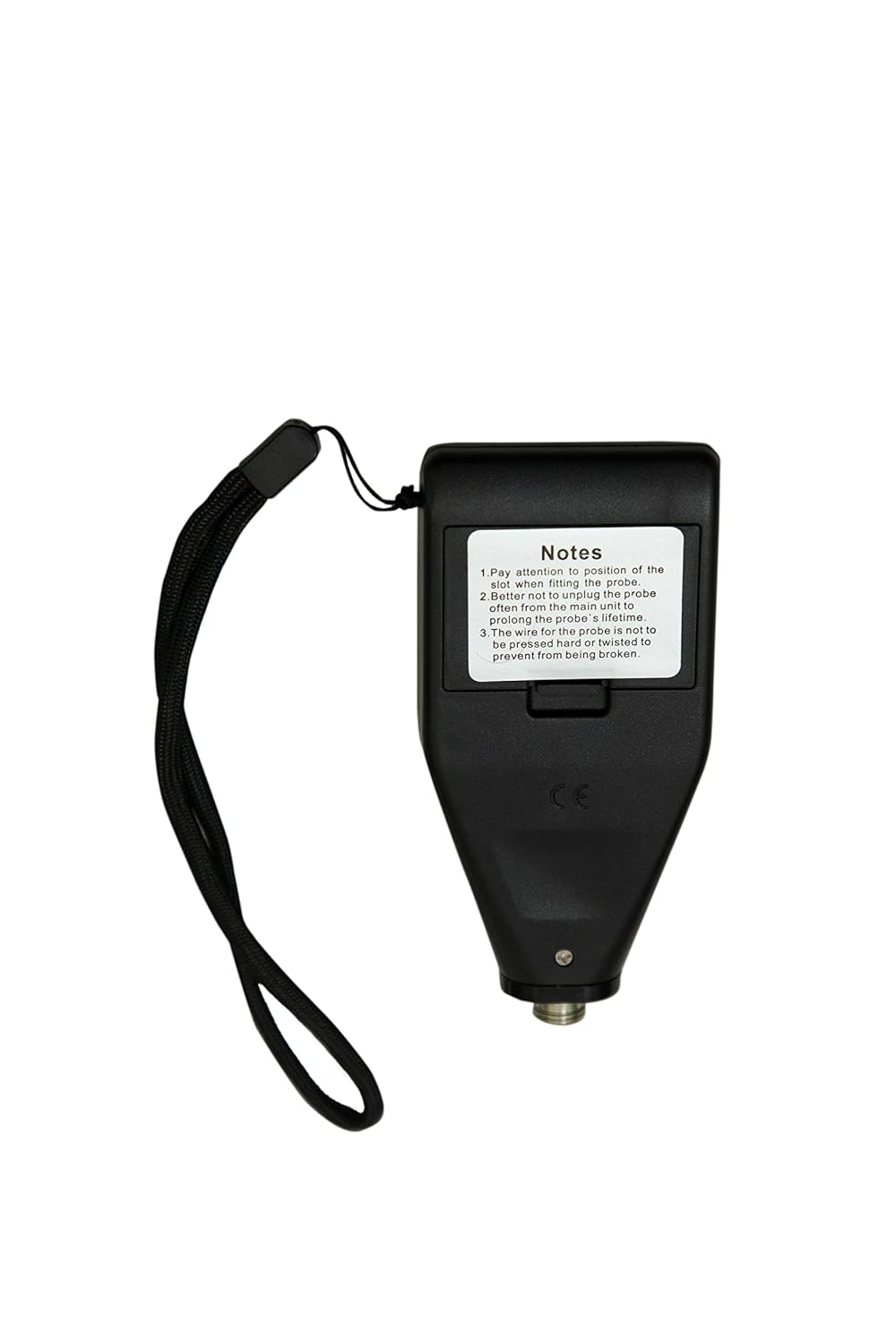

Mextech CM801E Coating Thickness Meter
Click To Zoom
Mextech CM801E Coating Thickness Meter
Mextech CM801E Coating Thickness Meter
The Fe function measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic Materials (e.g. Iron, nickel etc.). Oftenused to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.The NF function measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminium, brass, non-magnetic stainless steel, etc.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 11,000
(GST inclusive price) i-
Base Value: ₹ 9322
-
GST: (18) % ₹ 1678
-
Total Value ₹ 11000
₹14,825.00
( - 26% OFF )
Description
Key Features
- Calibration: Self Calibration
- Auto Power Off
- Battery Indicator: Low Battery Indication
- Power Supply: 2×1.5 AAA
- Buttons: 4 Buttons
- Display Size: 42 X 12 mm
- Weight: 200gm Excluding batteries
- Dimension: 115 x 57 x 26 mm

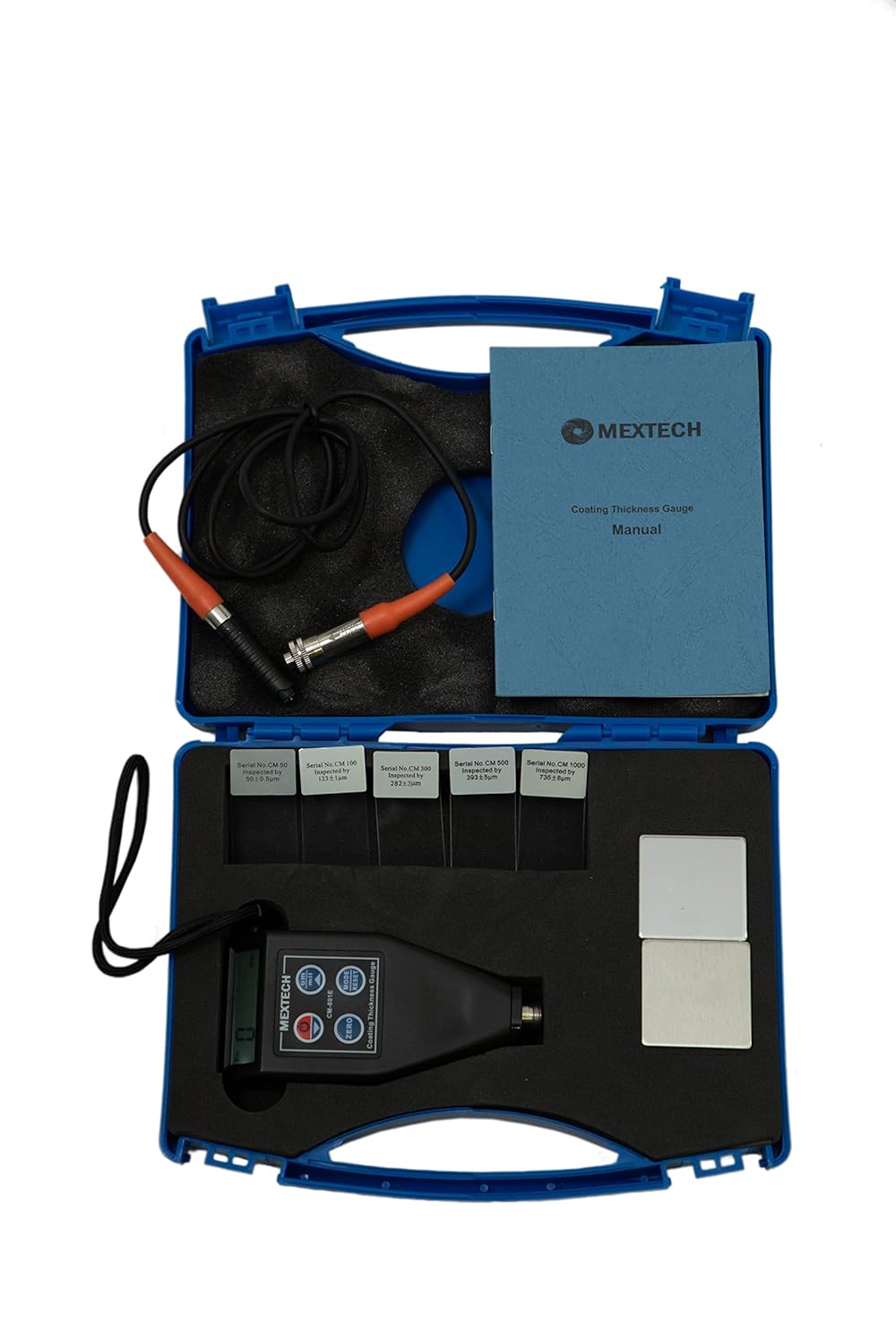

What's in the box?
|
Rating & Reviews
Rating
| Display | 4 Digit Display (10mm LCD) |
| Measuring Range | 0~1350μm/0~53mil |
| Accuracy | ±2~3%n or ±2.5μm or 0.1mil (Whichever is the greater) |
| Resolution | 0.1 um (0~99.9um) |
| 1 um (over 100um) | |
| Operating Principle | Magnetic Induction (F) |
| Min. Measuring Area | 6 mm |
| Min. Sample Thickness | 0.3mm |
| Min. Radius Work piece | Fe Type: convex 1.5mm/concave 25mm |
| NF Type: convex 3mm/concave 50mm | |
| Operating Temperature & Humidity | 0°C to 50°C,≤80%RH |
