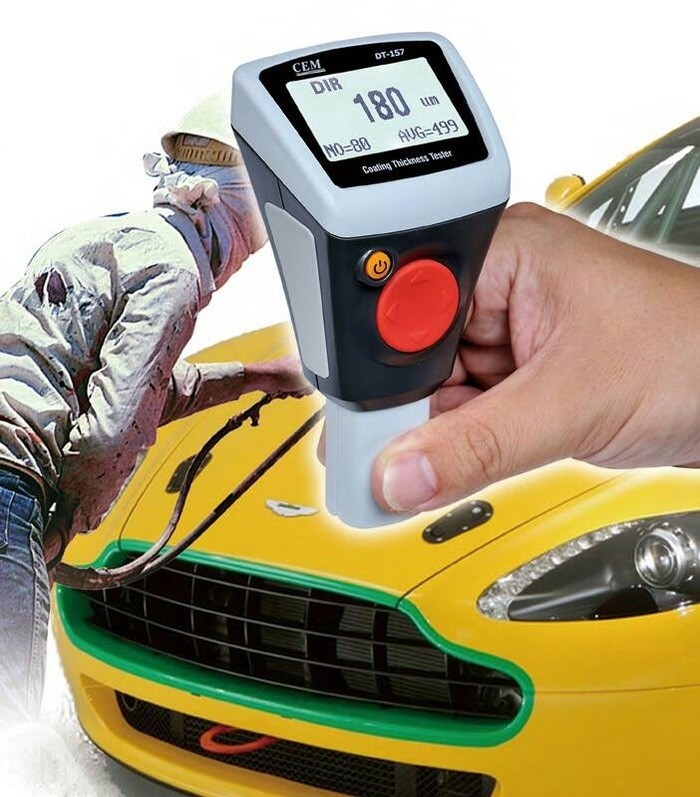

CEM DT-157 COATING THICKNESS GAUGE
Click To Zoom
CEM DT-157 COATING THICKNESS GAUGE
CEM DT-157 COATING THICKNESS GAUGE
The coating thickness gauges work either on the magnetic induction principle or on the eddy current principle, depending on the type of probe used. You can select the type of probe via MENU system, or it will work automatically.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 18,700
(GST inclusive price) i-
Base Value: ₹ 15847.5
-
GST: (18) % ₹ 2852.5
-
Total Value ₹ 18700
₹25,900.00
( - 28% OFF )
Description
Key Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint, anodizing coatings) on non-ferrous metals
- Non-ferrous metals coatings on insulating substrates
- Easy MENU operation system
- Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
- Two measuring mode : CONTINUOUS and SINGLE mode
- Two Working modes: DIRECT and GROUP
- One Point Calibration, two point calibration and basic easy calibration
- High and Low Alarm Settings
- Bluetooth Interface
- Meterbox iCTT app can be used for cloud storage
What's in the box?
|
Rating & Reviews
Rating
| Sensor probe | FERROUS | NON-FERROUS |
| Working principle | Magnetic induction | Eddy current principle |
| Measuring range | 0~2000µm 0~78.7mils | 0~2000µm 0~78.7mils |
| Guaranteed tolerance (of reading) | 0 ~ 1000 um (±2%±2um) | 0 ~ 1000 um (±2%±2um) |
| 1000~ 2000 um | 1000~ 2000 um | |
| (±3.5%) | (±3.5%) | |
| 0~39.3mils | 0~39.3mils | |
| (±2%±0.08 mils) | (±2%±0.08 mils) | |
| 39.3~78.7mils (±3.5) | 39.3~78.7mils (±3.5) | |
| Precision | 0~100um (0.1um) | 0~100um (0.1um) |
| 100um~1000um (1um) | 100um~1000um (1um) | |
| 1000um~2000um (0.01mm) | 1000um~2000um (0.01mm) | |
| 0~10mils (0.01 mils) | 0~10mils (0.01 mils) | |
| 10~78.7mils (0.1 mils) | 10~78.7mils (0.1 mils) | |
| Minimum curvature radius | 1.5mm | 3mm |
| Diameter of Minimum area | 7mm | 5mm |
| Minimum measurable thickness | 0.5mm | 0.3mm |
| Working temperature | 0°C~40°C (32°F~104°F) | |
| Working relative humidity | 20%~90% |
