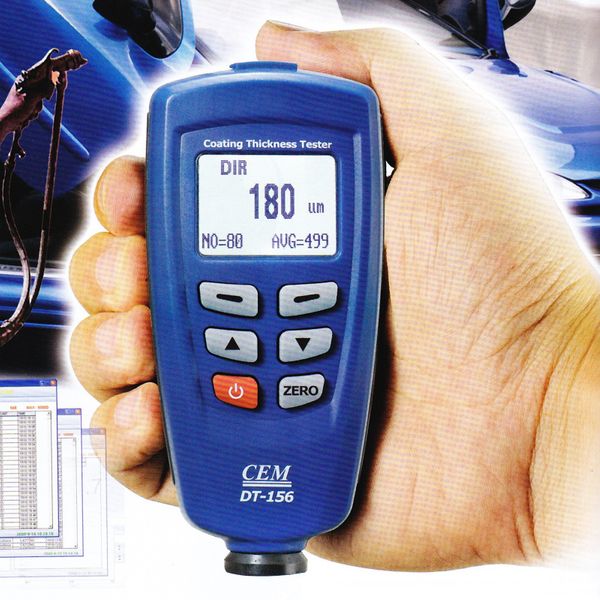

CEM DT-156 COATING THICKNESS GAUGE
Click To Zoom
CEM DT-156 COATING THICKNESS GAUGE
CEM DT-156 COATING THICKNESS GAUGE
DT-156 gauge are suitable for laboratory, workshop & outdoor use. It works either on magnetic induction principle and on eddy current principle, depends on probe used. DT-156 uses only 1 probe for both ferrous & non-ferrous metal substrates. Probe can be selected manually or automatically.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 10,500
(GST inclusive price) i-
Base Value: ₹ 8898.3
-
GST: (18) % ₹ 1601.7
-
Total Value ₹ 10500
₹14,999.00
( - 30% OFF )
Description
Key Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
- Non-ferrous metals coatings on insulating substrates
- Easy MENU operation system
- Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
- Two measuring mode : CONTINUOUS and SINGLE mode
- Two Working modes: DIRECT and GROUP
- One Point Calibration, two point calibration and basic easy calibration
- High and Low Alarm Settings
- USB PC Interface
What's in the box?
|
Rating & Reviews
Rating
| Sensor probe | FERROUS | NON-FERROUS |
| Working principle | Magnetic induction | Eddy current principle |
| Measuring range | 0~1250um 0~49.21mils | 0~1250um 0~49.21mils |
| Guaranteed tolerance (of reading) | 0~850 um (± 3%+1um) | 0~850 um(± 3%+1.5um) |
| 850um~1250 um (± 5%) | 850um~1250um (± 5%) | |
| 0~33.46 mils (± 3%+0.039mils) | 0~33.46mils (± 3%+0.059mils) | |
| 33.46um~49.21mils (± 5%) | 33.46um~49.21mils (± 5%) | |
| Precision | 0~50um (0.1um) | 0~50um (0.1um) |
| 50um~850um(1um) | 50um~850um(1um) | |
| 850um~1250um(0.01mm) | 850um~1250um(0.01mm) | |
| 0~1.968mils (0.001mils) | 0~1.968mils (0.001mils) | |
| 1.968mils~33.46mils(0.01mils) | 1.968mils~33.46mils(0.01mils) | |
| 33.46mils~49.21mils(0.1mils) | 33.46mils~49.21mils(0.1mils) | |
| Minimum curvature radius | 1.5mm | 3mm |
| Diameter of Minimum area | 7mm | 5mm |
| Basic critical thickness | 0.5mm | 0.3mm |
| Working temperature | 0℃~40℃(32℉~104℉) | |
| Working relative humidity | 20%~90% |
