HTC-DM-8045R -BENCH TYPE DIGITAL MULTIMETER
Click To Zoom
HTC-DM-8045R -BENCH TYPE DIGITAL MULTIMETER
HTC-DM-8045R -BENCH TYPE DIGITAL MULTIMETER
The HTC DM-8045R Digital Bench Multimeter 4½ Digit True RMS with Backlight is a high-performance measurement tool designed for benchtop applications. With advanced features and precision capabilities, it excels in accurately measuring various electrical parameters. The bench-type design ensures stability during measurements, providing reliability for professionals in laboratories, workshops, and educational settings.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 7,774
(GST inclusive price) i-
Base Value: ₹ 6588.1
-
GST: (18) % ₹ 1185.9
-
Total Value ₹ 7774
₹8,651.00
( - 10% OFF )
Description
Key Features
- 4½ Digit Multimeter

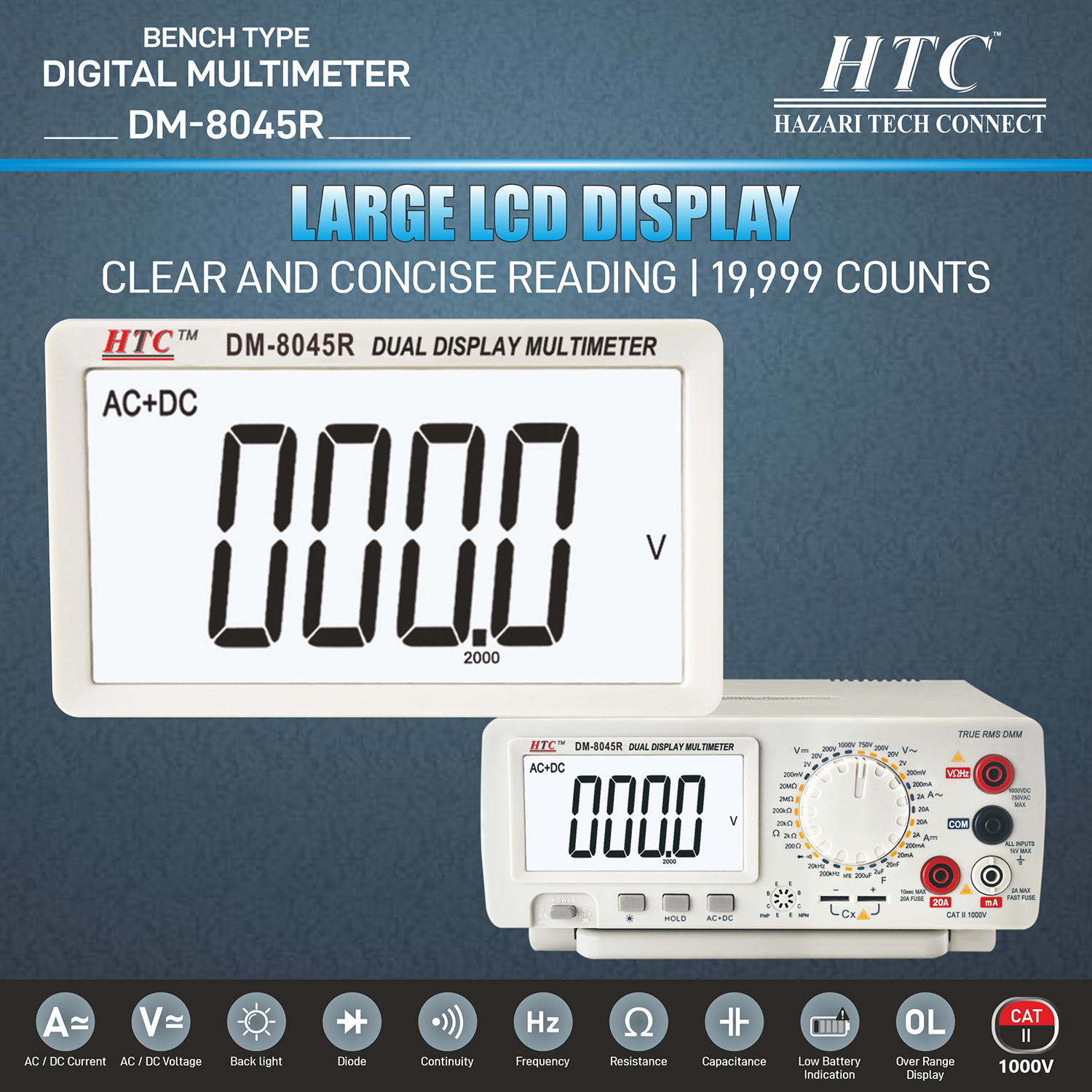

- 19,999 Count
- TRUE RMS
- Data Hold
- Auto Power Off
- hFE Test
- Fuse Protection
- Power : DC 220V

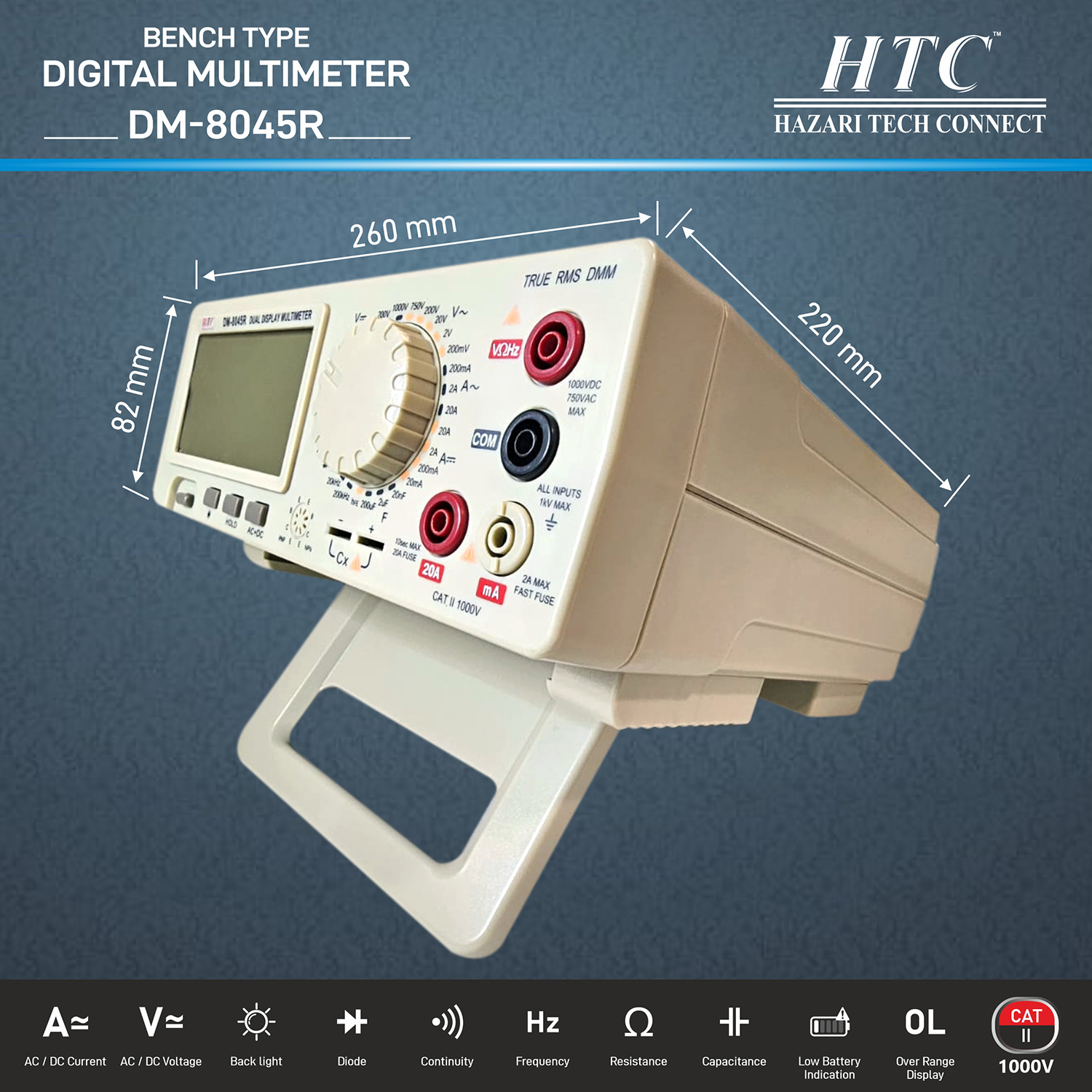

- Dimension : H260 x W220 x D82 mm
- Weight : Approx. 2Kgs

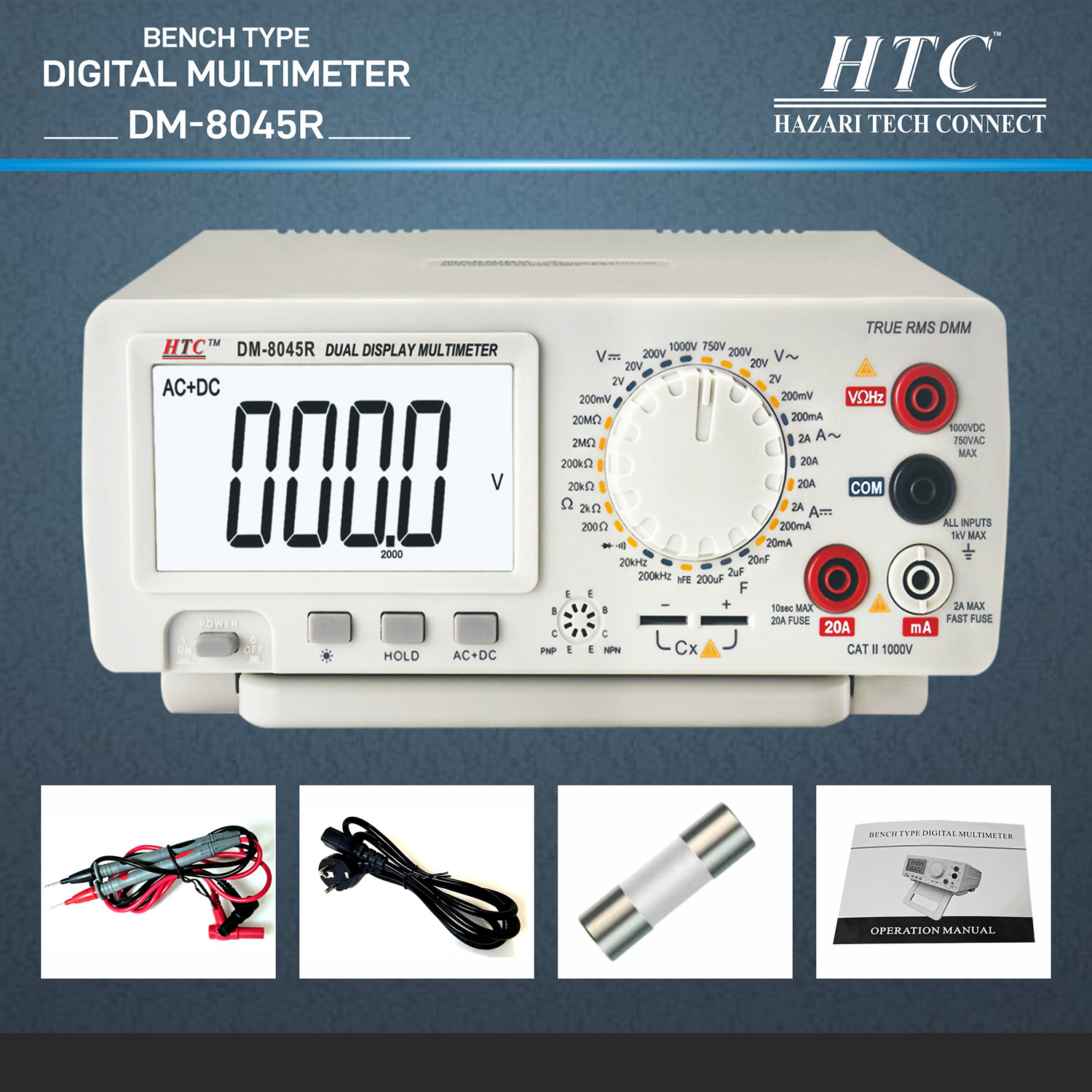

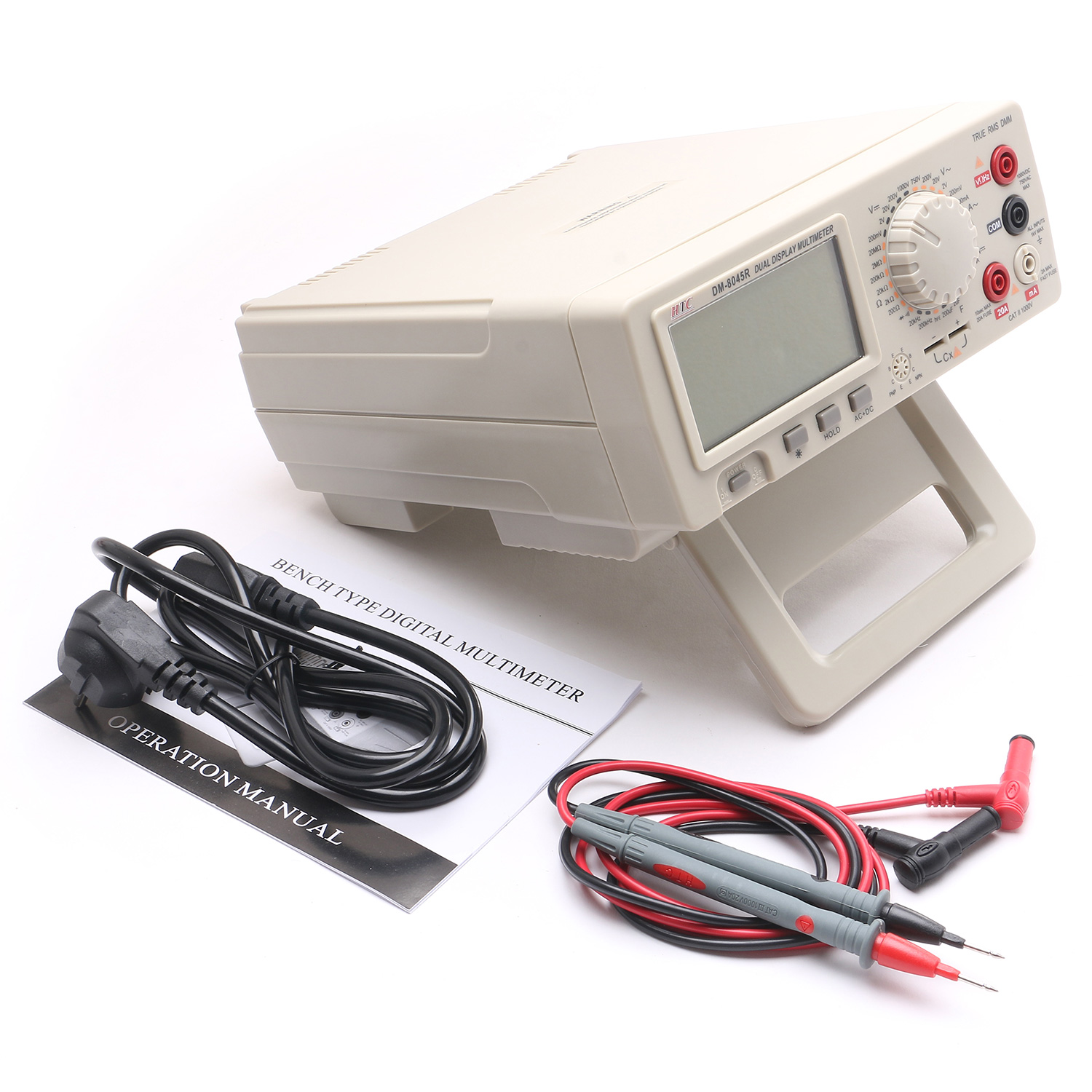

What's in the box?
|
Rating & Reviews
Rating
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 200mV | 10µV | ±0.05% of rdg ±1 digits |
| 2V | 100µV | |
| 20V | 1mV | |
| 200V | 10mV | |
| 1000V | 100mV | ±0.1% of rdg ±5 digits |
| AC VOLTAGE | |||
| Range | Resolution | Accuracy | INPUT FREQUENCY |
| 200mV | 10µA | ±0.8% of rdg ±80 digits | 50Hz-20kHz |
| 2V | 100µA | ||
| 20V | 1mV | ||
| 200V | 10mV | 50Hz-5kHz | |
| 750V | 100mV | ±1.0% of rdg ±50 digits | 50Hz-400kHz |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 20mA | 1µA | ±0.35% of rdg± 10 digits |
| 200mA | 10µA | |
| 2A | 100µA | ±1.2% of rdg± 20 digits |
| 20A | 1mA | |
| AC CURRENT | |||
| Range | Resolution | Accuracy | INPUT FREQUENCY |
| 200mA | 10µA | ±0.8% of rdg ±80 digits | 50Hz-5kHz |
| 2A | 100µA | ±1.5% of rdg ±50 digits | 50Hz-400kHz |
| 20A | 1mA | ||
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 200Ω | 0.01Ω | ±0.1% of rdg±10 digits |
| 2kΩ | 0.1Ω | ±0.1% of rdg±5 digits |
| 20kΩ | 1Ω | |
| 200kΩ | 10Ω | |
| 2MΩ | 100Ω | |
| 20MΩ | 1kΩ | ±0.6% of rdg±5 digits |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 20nF | 1pF | ±3.5% of rdg±20 digits |
| 2µF | 100pF | |
| 200µF | 10nF | ±5.0% of rdg±30 digits |
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 20kHz | 1Hz | ±1.0% of rdg±20 digits |
| 200kHz | 10Hz | |
| TRANSISTOR (hFE) TEST | ||
| Range | Resolution | Accuracy |
| NPN OR PNP | 0~1000 | Base current is approx 10µA Vce is approx 3V |
