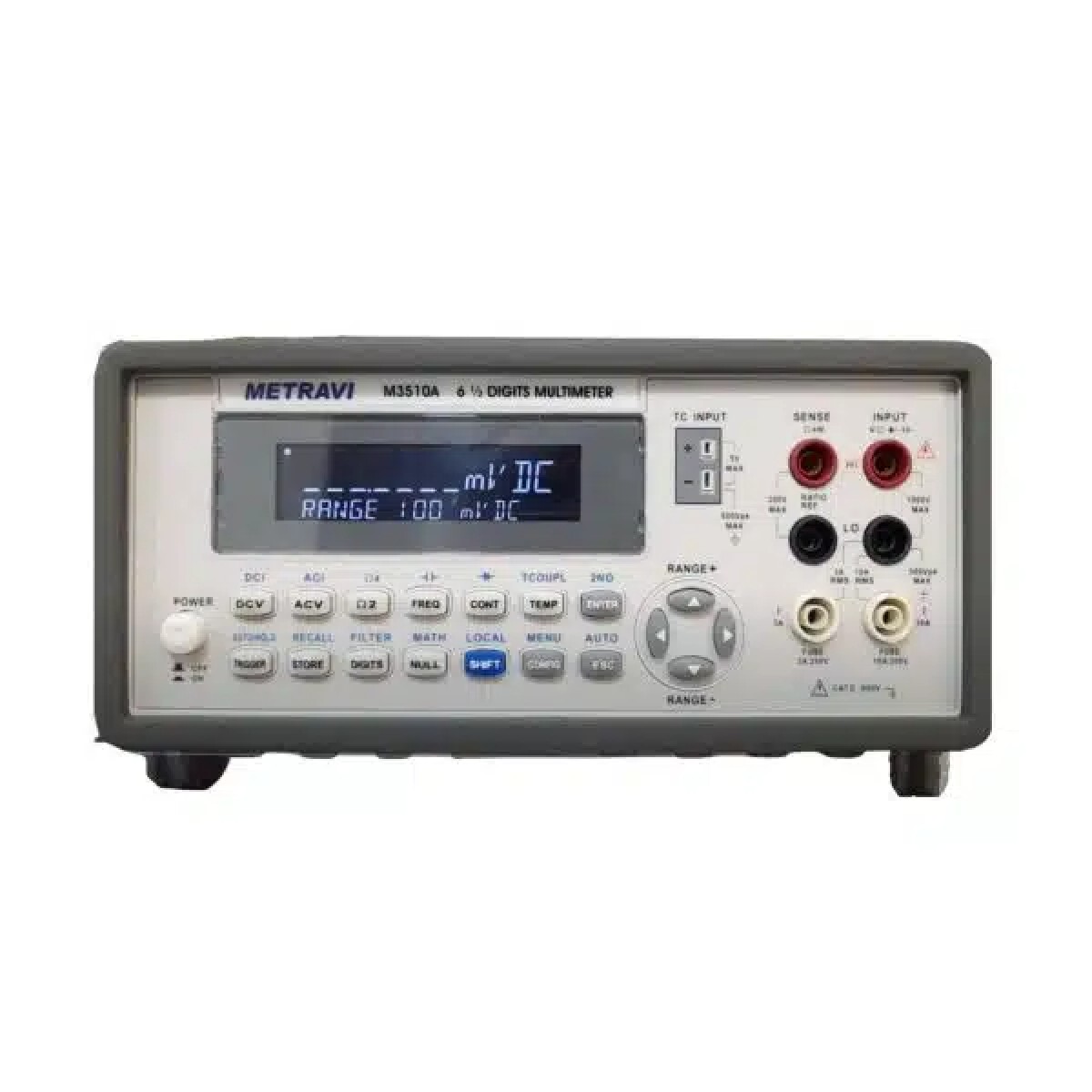

Metravi M-3510A 6 1/2 Digits Bench-type Digital Multimeter
Click To Zoom
Metravi M-3510A 6 1/2 Digits Bench-type Digital Multimeter
Metravi M-3510A 6 1/2 Digits Bench-type Digital Multimeter
The Metravi M-3511A 6 1/2 Digits Bench-type Digital Multimeter offers compact size, lightweight, fast measurement speed & throughput, expanded measurement functions, systematization capability, and highly usable interfaces, including a standard USB interface, and an optional GPIB/RS-232 interface. The device is suitable for both production and research/development use.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 94,400
(GST inclusive price) i-
Base Value: ₹ 80000
-
GST: (18) % ₹ 14400
-
Total Value ₹ 94400
₹1,35,000.00
( - 30% OFF )
Description
Key Features
- Dual Displays & Dual Measurements
- Most Cost Effective 6-1/2 Digit Multimeter
- Wide Range Current Measurement
- Basic DC Voltage Accuracy of 0.009%
- Free Software PT-TOOL (SCPI Commands) & PT-LINK
- DC Voltage: 0 – 100m / 1 / 10 / 100 / 1000V
- Accuracy: ±0.009%
- AC Voltage: 0 – 100m / 1V / 10 / 100 / 750V
- Accuracy: ±0.12%
- DC Current: 0 – 10m / 100m / 1 / 10A
- Accuracy: ±0.05%
- AC Current: 0 – 1 / 10A
- Accuracy: ±0.2%
- Frequency: up to 300kHz
- Accuracy: ±0.03%
- Capacitance: 0 – 1n / 10n / 100n / 1u / 10u / 100u / 1000u / 10000uF
- Accuracy: ±1%
- Diode & Continuity Test Facility
- Confirms to EN61326.

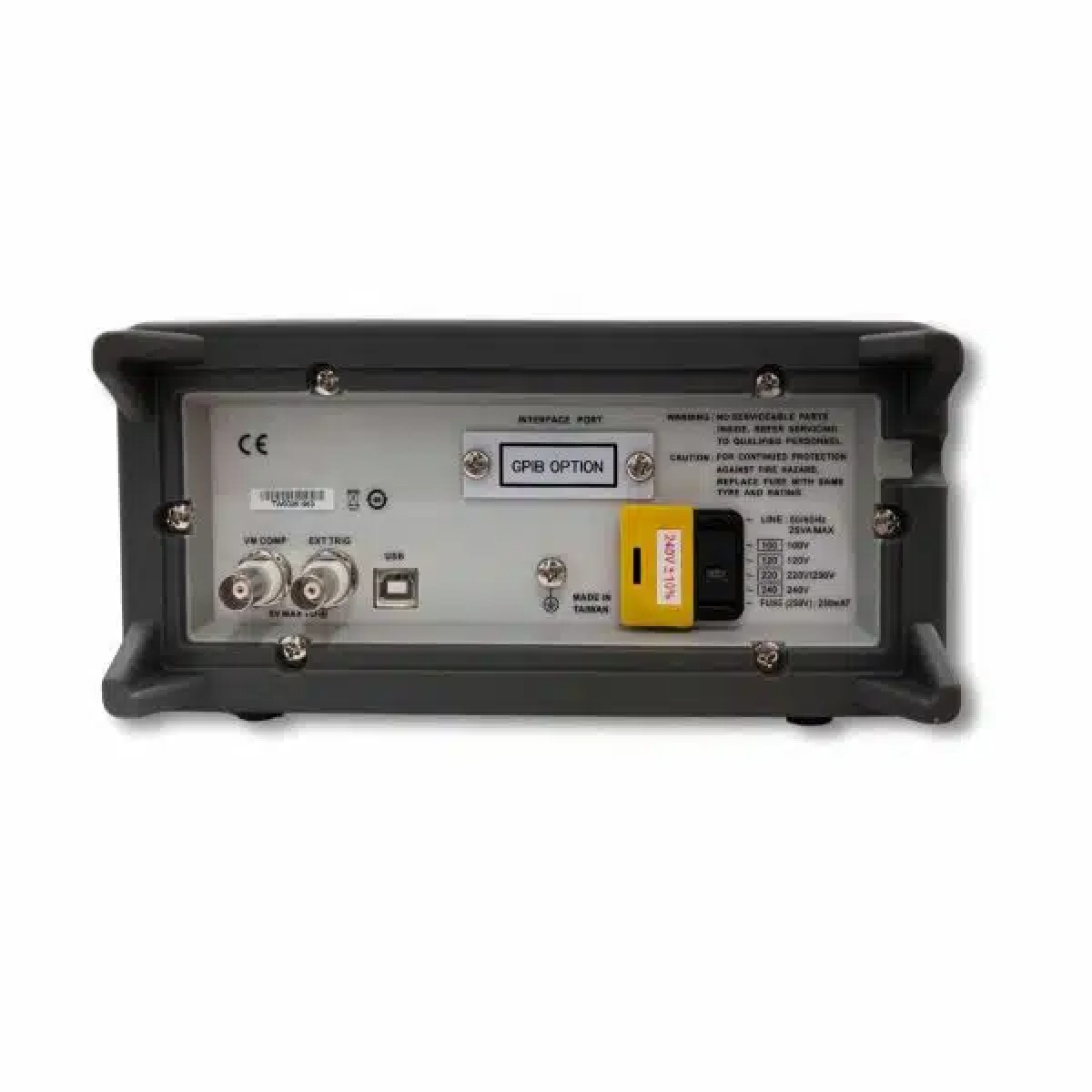

- Is provided with USB Interface and optionally GPIB and RS-232 Interface can also be provided.
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Power Supply Power Line Frequency | 100V / 120V / 220V (230V) / 240V |
| 50/60 Hz | |
| Power Consumption Operating Temperature | 25 VA Maximum 0ºC to 50ºC |
| Operating Humidity | Maximum relative humidity 80% for temperature up to 35ºC. |
| Storage Temperature Operating Altitude Bench Dimension for Rack (W x H x D) | - 40ºC to 70ºC Up to 2000 M 214.6 x 88.6 x 280.7 mm |
| Weight Safety EMC | 2230g EN61010-1:2010 (3rd Edition) EN61010-2-030:2010 (1st Edition) Installation CAT II, Measurement CAT II 600V Pollution Degree 2 EN61326-1:2006, EN61326-2-1:2006 |
| VIBRATION | MlL- 28800F, 3.8.4.2 VI VIBRATION,SINUSOIDAL CLASS 1,2 |
| SHOCK | MIL- PRF-28800F, 4.5.5.4 MECHANICAL |
| Warranty | 1 year against manufacturing defects |
| Technical Specification | |||
| DC CHARACTERISTICS | |||
| Function | Range | Resolution | 1 year Accuracy2 |
| DVC | 100.0000 mV | 0.1 µV | 0.0080 + 0.0045 |
| 1.000000 V | 1.0 µV | 0.0090 + 0.0010 | |
| 10.00000 V | 10 µV | 0.0120 + 0.0020 | |
| 100.0000 V | 100 µV | 0.0120 + 0.0020 | |
| 1000.000 V | 1 mV | 0.0200 + 0.0030 | |
| DCI | 10.00000 mA | 10 nA | 0.050 + 0.020 |
| 100.0000 mA | 100 nA | 0.050 + 0.010 | |
| 1.000000 A | 1 µA | 0.150 + 0.020 | |
| 3.00000 A | 10 µA | 0.200 + 0.030 | |
| 10.00000 A | 10 µA | 0.0250 + 0.050 | |
| 2W Ω3 / 4W Ω | 100.0000 Ω | 100 µΩ | 0.020 + 0.005 |
| 1.000000 KΩ | 1 mΩ | 0.020 + 0.002 | |
| 10.00000 KΩ | 10 mΩ | 0.020 + 0.002 | |
| FREQUENCY & PERIOD | |||
| Function | Range | Frequency | 1 year Accuracy |
| FREQUENCY & PERIOD | 100mV to 750V4 | 10-40 | 0.03 |
| 40-300K | 0.02 | ||
| DC CHARACTERISTICS | ||||
| Function | Range | Resolution | Frequency | 1 year Accuracy2 |
| ACV (TRMS) | 100.0000 mV | 0.1 µV | 10 - 20K | 0.1200 + 0.050 |
| 20K - 50K | 0.2500 + 0.050 | |||
| 50K - 100K | 0.6500 + 0.80 | |||
| 100K - 300K | 4.8000 + 0.800 | |||
| 1.000000 V to 750.0000 V | 1.0 µV to 1mA | 10 - 20K | 0.1200 + 0.040 | |
| 20K - 50K | 0.2500 + 0.050 | |||
| 50 K - 100K | 0.6500 + 0.80 | |||
| 100K - 300K | 4.8000 + 0.800 | |||
| ACI6(TRMS) | 1.000000 A | 1 µA | 10 - 1K | 0.200 + 0.040 |
| 1K - 5K | 1.00 + 0.100 | |||
| CAPACITANCE CHARACTERISTICS | |||
| Function | Range | Test Current | 1 year Accuracy |
| CAPACITANCE | 1 nF | 10 µA | 2.0 + 0.80 |
| 10 nF | 10 µA | 1.0 + 0.50 | |
| 100 nF | 100 µA | 1.0 + 0.50 | |
| 1 µV | 100 µA | 1.0 + 0.50 | |
| 10 µV | 100 µA | 1.0 + 0.50 | |
| 100 µV | 1 mA | 1.0 + 0.50 | |
| 1000 µV | 1 mA | 1.0 + 0.50 | |
| 10000 µV | 1 mA | 2.0 + 0.50 | |
| TEMPERATURE CHARACTERISTICS | |||
| Function | Range | Test Current | 1 year Accuracy |
| TEMPERATURE | B | 600ºC ~ 1820ºC | 1.5ºC |
| C | 0ºC ~ 2316ºC | 1.5ºC | |
| E | -250ºC ~ 1000ºC | 1.5ºC | |
| J | -210ºC ~ 1200ºC | 1.5ºC | |
| K | -200ºC ~ 1372ºC | 1.5ºC | |
| N | -200ºC ~ 1300ºC | 1.5ºC | |
| R | 0ºC ~ 1767ºC | 1.5ºC | |
| S | 0ºC ~ 1767ºC | 1.5ºC | |
| T | 250ºC ~ 400ºC | 1.5ºC | |
