Metravi M-45 Bench-type Digital Multimeter
.webp "Metravi M-45 Bench-type Digital Multimeter")
Click To Zoom

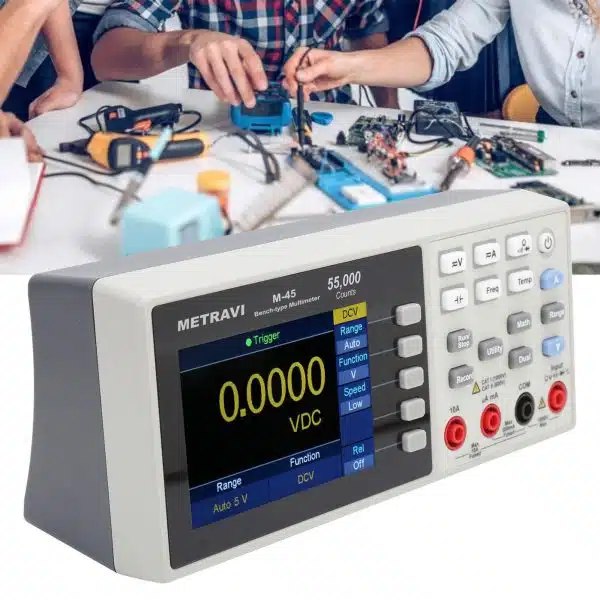

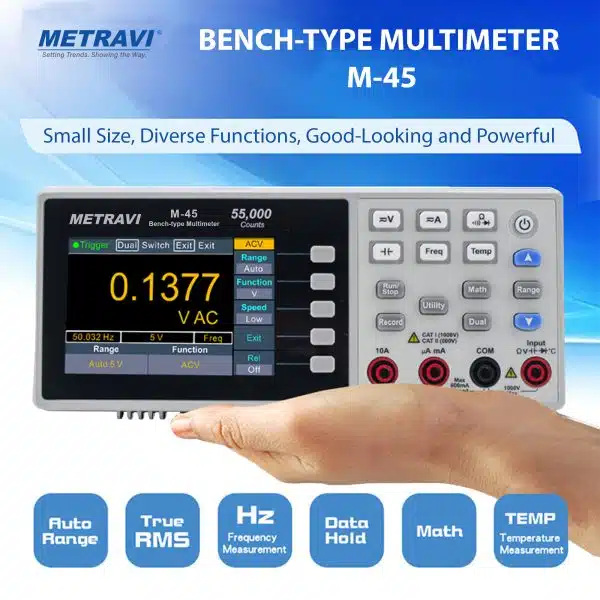

Metravi M-45 Bench-type Digital Multimeter
Metravi M-45 Bench-type Digital Multimeter
5 digits, 55000 Counts, bench-type, compact, T-RMS Multimeter with large TFT Colour Display, USB & RS232 Interfaces for Data Logging & Analysis. Supports Dual line display & SCPI. Measure Voltage, Current, Resistance, Capacitance, Frequency, RTD/K-type Temperature.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 13,700
(GST inclusive price) i-
Base Value: ₹ 11610.2
-
GST: (18) % ₹ 2089.8
-
Total Value ₹ 13700
₹19,575.00
( - 30% OFF )
Description
Key Features
- Compact, portable and ultra-light
- 3.5 inch (480x320) high resolution LCD
- 55000 Counts
- DC Voltage accuracy up to 0.05%
- Up to 60 readings per second
- True RMS AC Voltage & AC Current measurements
- Dual line display supported
- SCPI support
- Data Logging function
- USB or RS232 PC Interface support for Data Analysis

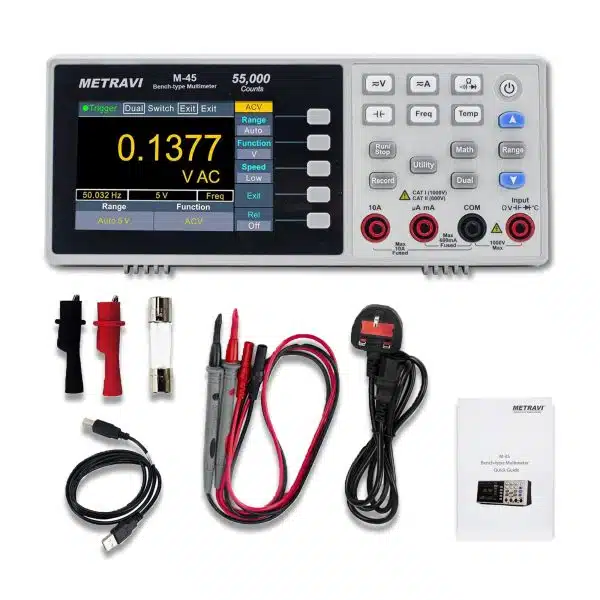

What's in the box?
|
Rating & Reviews
Rating
| Display | 3.5-inch TFT LCD with resolution 480*320 |
| Data Logging | Auto/Manual Mode, 1000 data |
| Safety Certifications | CATI 1000V, CATII 600V |
| Accessories | Test Leads, Crocodile Clips, Power Cord, Spare Fuse |
| Operating Environment | Full temperature from 0°C to 50°C, ≤80% RH and 40°C non-condensing |
| Storage Environment | Storage Temperature: -20°C to 70°C, ≤80%RH |
| Remote Interface | USB Device |
| Programmer Language | Standard SCPI, compatible with commands of main stream multimeters |
| Warm-up Time | 30 minutes |
| Dimensions | (W×H×D) 200 x 86.5 x 64 mm |
| Weight | 0.45 kgs |
| Temperature | K type, Pt100 |
| Display | 55,000 |
| Record Interval | 15 mS - 9999.999 S |
| Record Length | 1,000 points |
| DC CURRENT | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 500 uA | 0.01 uA | ±0.15% + 20 |
| 5000 uA | 0.1 uA | ±0.15% + 10 |
| 50 mA | 0.001 mA | ±0.15% + 20 |
| 500 mA | 0.01 mA | ±0.15% + 10 |
| 5 A | 0.0001 A | ±0.5% + 10 |
| 10 A | 0.001 A | ±0.5% + 10 |
| TRUE RMS AC CURRENT | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 500 uA -500 mA | 20 Hz-1 kHz | ±0.5% + 20 |
| 5A-10A | ±1.5% + 20 | |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 50.000 mV | 0.001 mV | ±0.1%+10 |
| 500.00 mV | 0.01 mV | ±0.025% + 5 |
| 5.0000 V | 0.0001 V | ±0.025% + 5 |
| 50.000 V | 0.001 V | ±0.03% + 5 |
| 500.00 V | 0.01 V | ±0.1% + 5 |
| 1000.0 V | 0.01 V | ±0.1%+5 |
| TRUE RMS AC VOLTAGE | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 500 mV- 750V | 20 Hz- 45 Hz | ±1%+30 |
| 45 Hz- 65 Hz | ±0.5%+30 | |
| 65 Hz- 1kHz | ±0.7%+30 | |
| RESISTANCE | ||
| Range | Resolution | Accuracy: ± (% of reading + LSB) |
| 500 Ω | 0.01 Ω | ±0.1%+10 |
| 5 kΩ | 0.0001 kΩ | ±0.1%+5 |
| 50 kΩ | 0.001 kΩ | ±0.1%+5 |
| 500 kΩ | 0.01 kΩ | ±0.1%+5 |
| 5 MΩ | 0.0001 MΩ | ±0.25% + 5 |
| 50 MΩ | 0.01 MΩ | ±1%+10 |
| CAPACITANCE | |
| Range | Accuracy: ± (% of reading + LSB) |
| 50 nF - 500 uF | ±2.5%+5 |
| 5 mF - 50 mF | ±5%+8 |
| FREQUENCY | |
| Range | Accuracy: ± (% of reading + LSB) |
| 10.000 Hz - 60 MHz | ± (0.2%+8) |
| CONTINUITY | |
| Range | Resolution |
| 1000 Ω | 0.1 Ω |
