Metravi 709H mV mA Loop Calibrator with HART Communication
Click To Zoom

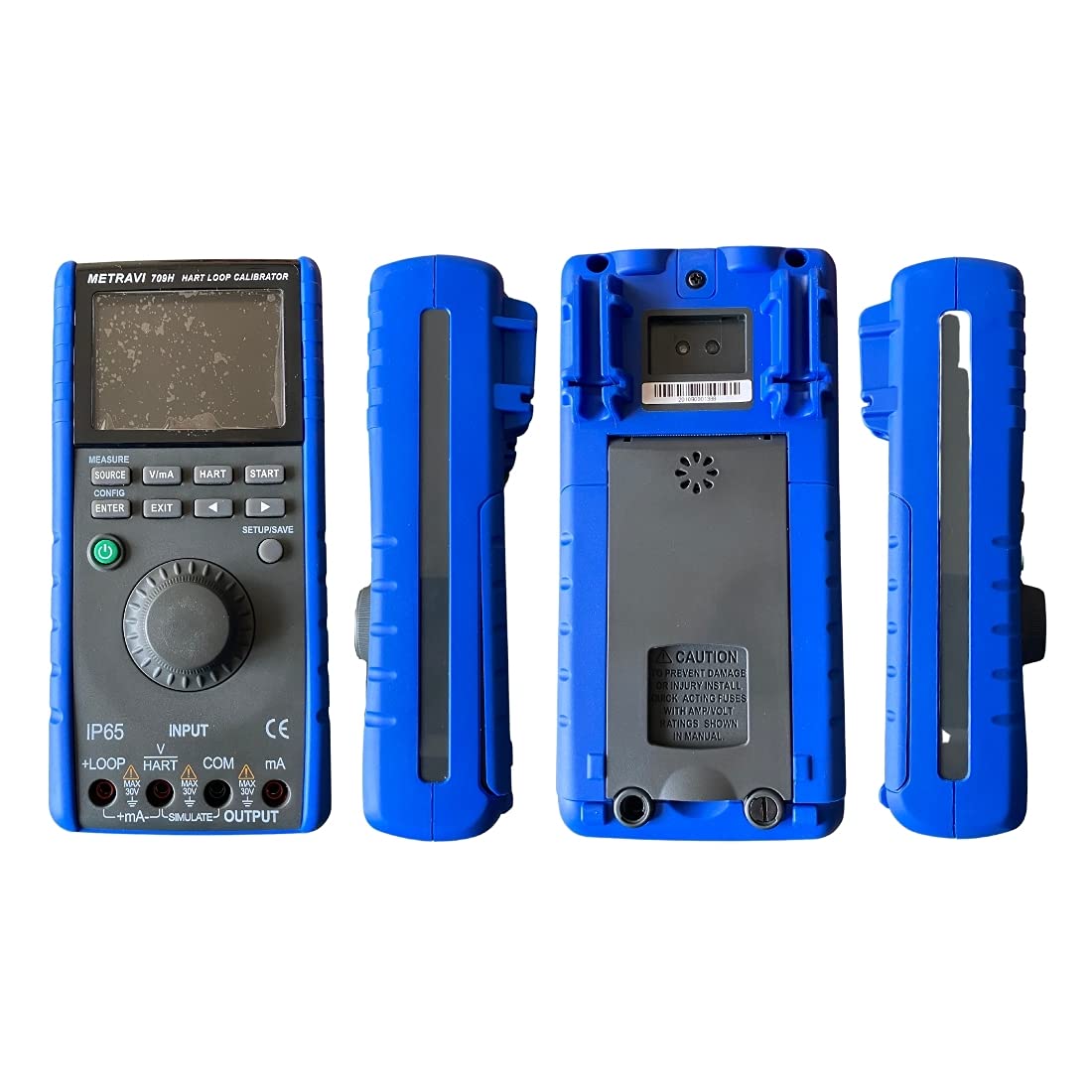

Metravi 709H mV mA Loop Calibrator with HART Communication
Metravi 709H mV mA Loop Calibrator with HART Communication
A reliable, accurate, powerful mV mA Loop Calibrator with HART COMMUNICATOR featuring high accuracy of 0.01%.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,08,560
(GST inclusive price) i-
Base Value: ₹ 92000
-
GST: (18) % ₹ 16560
-
Total Value ₹ 108560
₹1,55,250.00
( - 30% OFF )
Description
Key Features
- Compact Loop Calibrator with HART communication
- Able to read basic device information and execute diagnostic tests
- High precision ±0.01%
- High resolution 0.001mA
- Automatic Ramp & Step

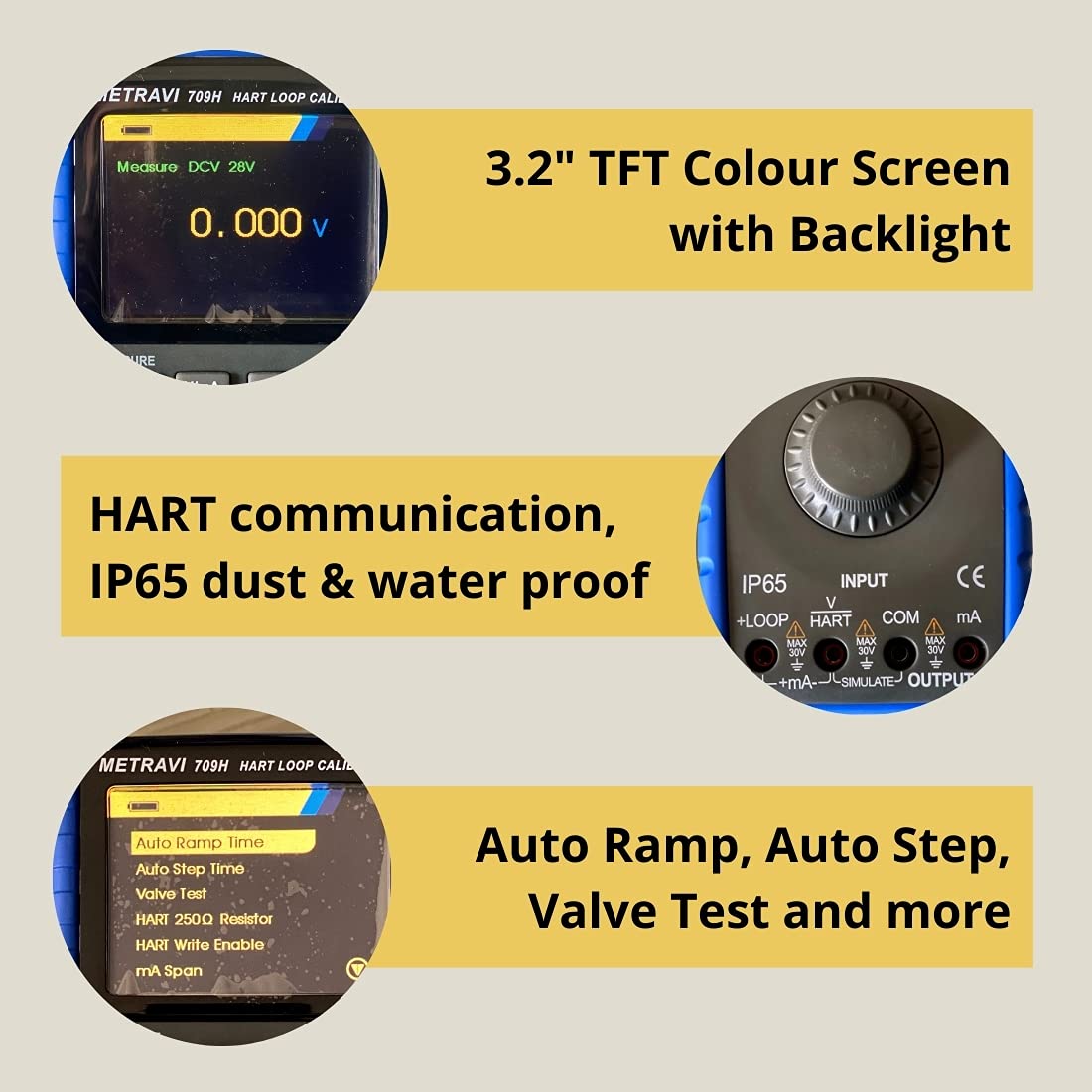

- High visibility 3.2″ TFT colour display with backlight
- Source and Measure:
Output DCA upto 20mA
Internal Loop Power Supply 24V
Loop Current upto 20mA
Voltage upto 28V
Current upto 30mA - Supports SCPI
- Auto Power Off and Low Battery display
- Max. permitted voltage: 30V (between any two terminals or between any terminal and earth ground)
- Operating temperature : 0°C ~ 50°C
- Operating relative humidity: ≤ 80%RH
- Protection level: IP65 (Dust, Water spray)
- Safety: EN61010-1:2001

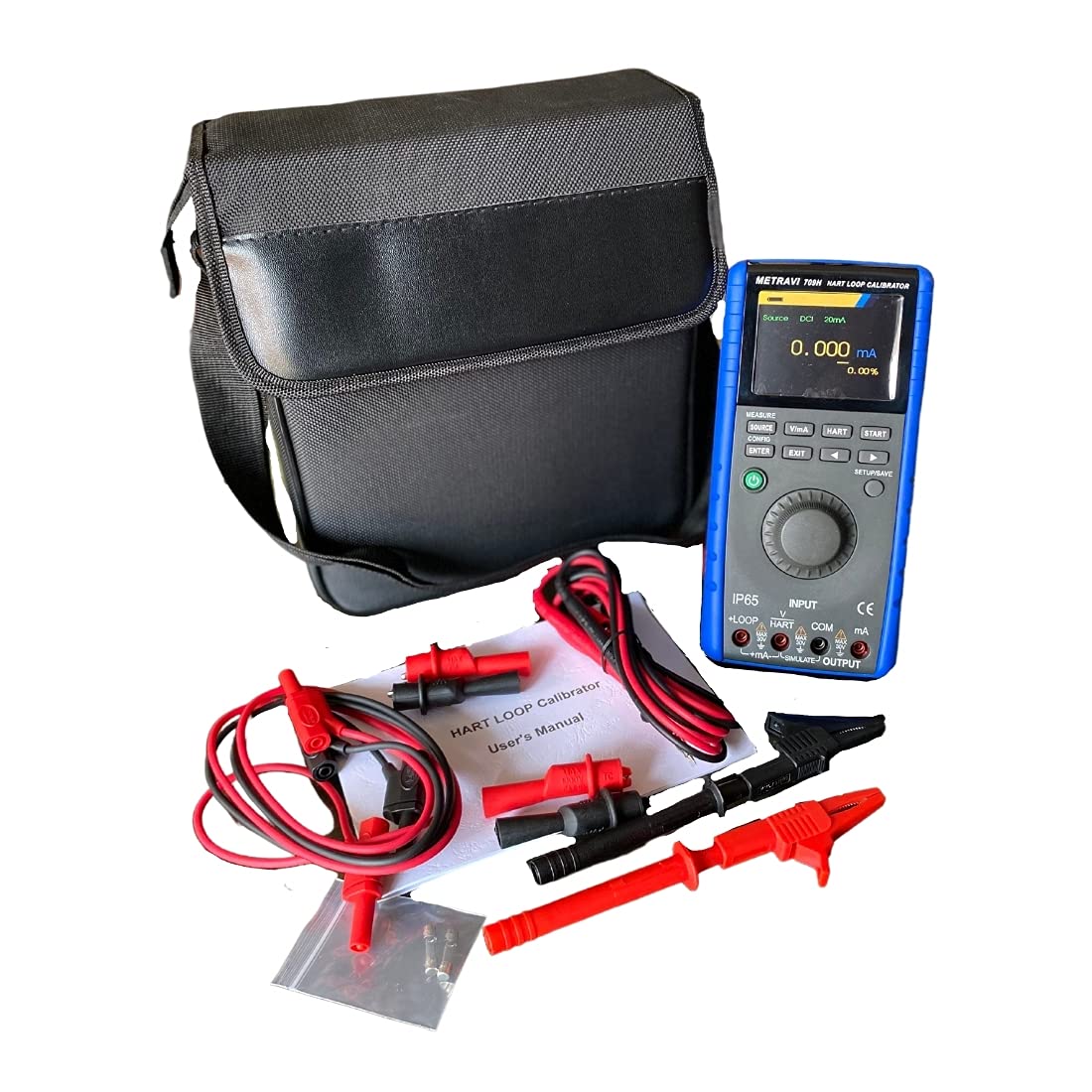

What's in the box?
|
Rating & Reviews
Rating
Product Specifications
GENERAL

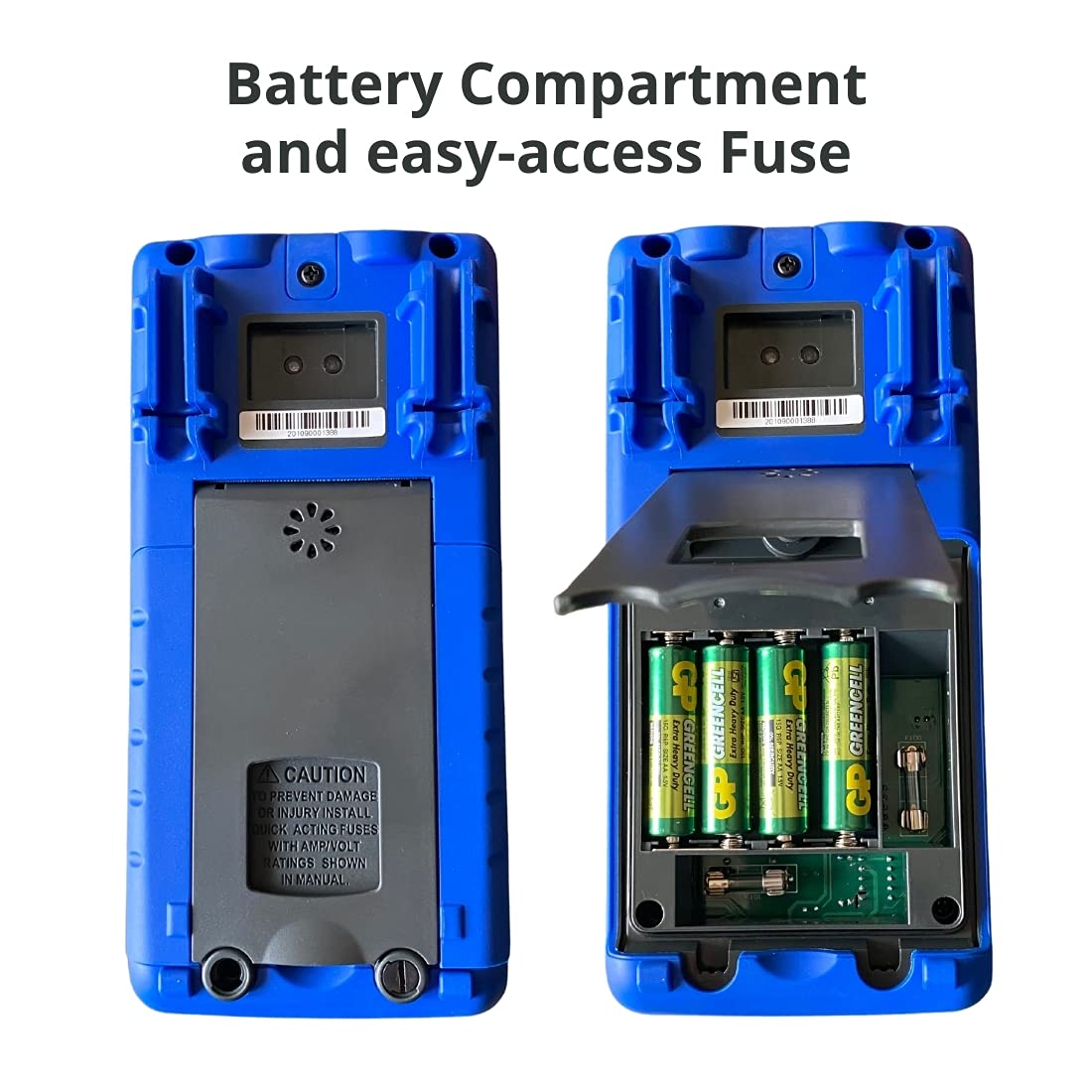

| Power supply | four 1.5V alkaline batteries (LR6) |
| Battery life | about 360mA /5V under the condition of 20mA with 1kΩ load |
| Max. permitted voltage | 30V (between any two terminals or between any terminal and earth ground) |
| Operating temperature | 0°C ~ 50°C |
| Operating relative humidity | ≤ 80%RH |
| Storage temperature | ≤ - 20°C ~ 60°C |
| Relative humidity for storage | ≤ 90%RH |
| Temperature co-efficiency | 0.1×Basic accuracy / °C (Temperature <18°C or >28°C) |
| Protection level | IP65(Dust, Water spray) |
| Display | 3.2 inch TFT color display |
| Size | 206(L) × 97(W) × 60(D) mm |
| Weight | 600g |
| Safety | EN61010-1:2001 |
TECHNICAL
| Output | Range | Output Range | Resolution | Accuracy | Remark |
| DCA | 20mA | 0.000 ~ 22.000mA | 0.001mA | ±0.01% Set Value ±0.015% Range | Max. load 1KΩat 20mA. |
| Simu-transmitter (Absorption Current) | -20mA | 0.000 ~ -22.000mA | 0.001mA | ±0.01% Set Value ±0.015% Range | Max. load 1KΩat 20mA. Note: power supply range: 5 ~ 25VDC |
| Loop Power Supply | 24V | ±10% | Max. output current up to 25mA. |
| Input | Range | Output Range | Resolution | Accuracy | Remark |
| Voltage | 28V | -2.000 ~ 28.000V | 1mV | ±0.01% Reading ±0.01% Range | Input resistance about 1MΩ |
| Current | 30mA | -4.000 ~ 33.000mA | 0.001mA | ±0.01% Reading ±0.01% Range | Input resistance about 20Ω |
| Loop Current | 20mA | 0.000 ~ 22.000mA | 0.001mA | ±0.01% Reading ±0.01% Range | providing 24V loop power |
