Fluke 715 mA Loop Calibrators
Click To Zoom
Fluke 715 mA Loop Calibrators
Fluke 715 mA Loop Calibrators
The Fluke 715 Volt/mA Calibrator delivers outstanding performance, durability and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrator is compact, lightweight and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 715 is easy to use. It is EMI tolerant, dust/splash resistant and features a removable battery door for quick battery changes.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
3.png)
3 YEARS WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,95,183
(GST inclusive price) i-
Base Value: ₹ 165409.3
-
GST: (18) % ₹ 29773.7
-
Total Value ₹ 195183
₹2,62,710.00
( - 16% OFF )
Description
Key Features
- Measure loop current (0 mA to 20 mA, 4 mA to 20 mA) signals with 0.01 % accuracy and 0.001 mA resolution
- Source precision voltage signals up to 20 V with 0.01 % accuracy
- Measure voltage output process signals from PLCs, transmitters
- Source or simulate 24 mA loop current
- 24 V loop supply with simultaneous current measurement

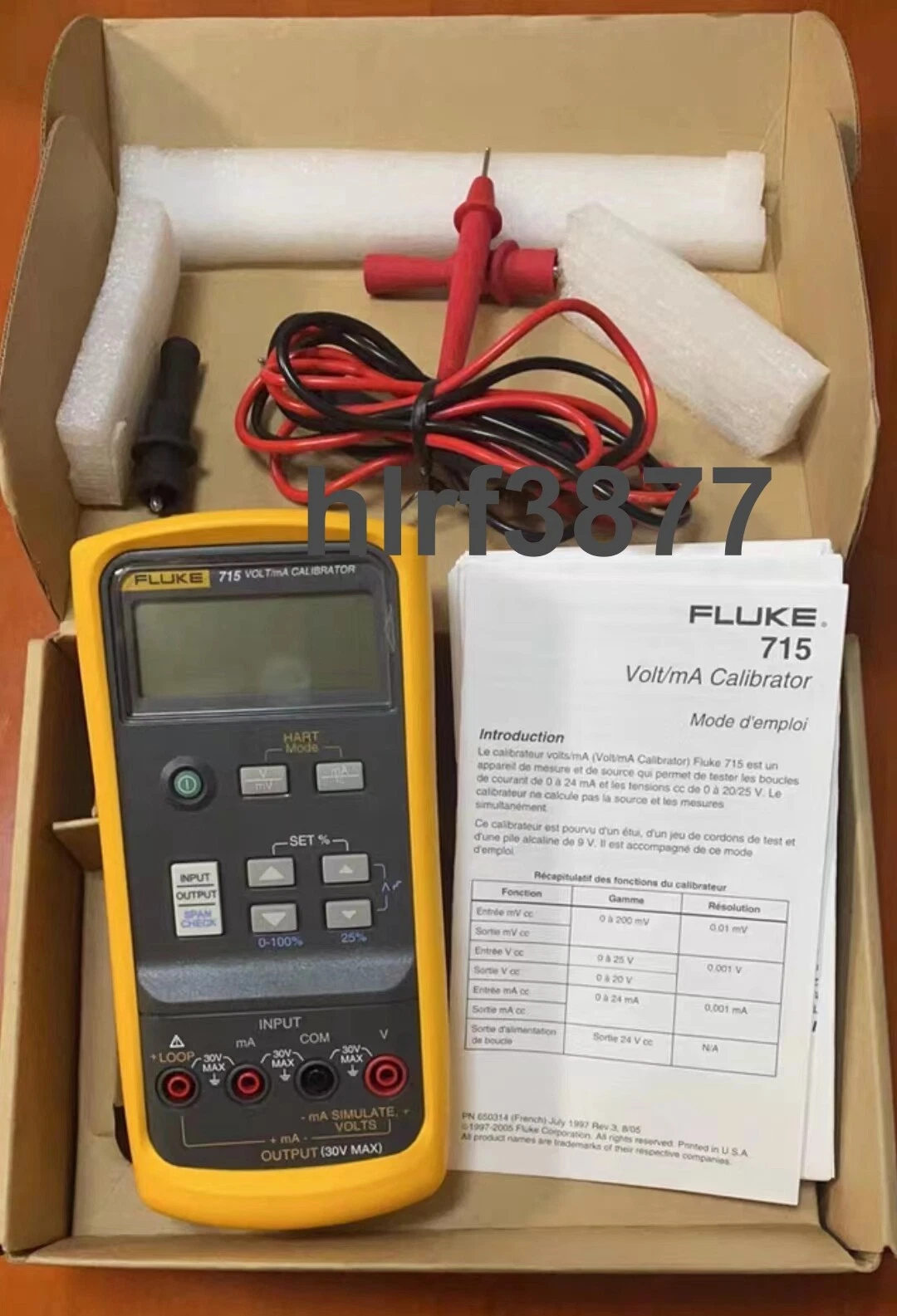

What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Maximum voltage | 30 volts: Non-operating temperature: –4 °C to 60 °C |
| Operating temperature | –10 °C to 55 °C |
| Relative humidity | 95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C) |
| Operating altitude | 3,000 m max |
| Shock | 1 m drop test |
| Vibration | Random, 2 g, 5 Hz to 500 Hz |
| Safety | CSA C22.2 No. 1010.1:1992 |
| EMC | EN50082-1:1992 and EN55022:1994 Class B |
| Power | 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718 |
TECHNICAL
| Voltage measurement | |
| Range | 0 mV to 200 mV / 0 V to 25 V |
| Resolution | 10 µV / 1 mV |
| Accuracy | 0.01 % Rdg + 2 counts |
| Voltage measurement | |
| Range | 0 mA to 24 mA |
| Resolution | 0.001 mA |
| Accuracy | 0.01 % + 2 counts |
| Voltage measurement | |
| Range | 0 mA to 20 mA or 4 mA to 20 mA |
| Accuracy | 0.01 % Rdg + 2 counts |
| Drive capability | 1000 Ω @ 24 mA |
| Loop power while measuring mA | 24 V |
| Voltage sourcing | 0 mV to 200 mV or 0 V to 20 V |
| Display current and % of span | mA or % |
| Auto step, auto ramp | Yes |
| Span Check | Yes |
| Battery life | 18 hours typical, at 12 mA |
