Metravi CAL-400-3 mV mA Calibrator
Click To Zoom

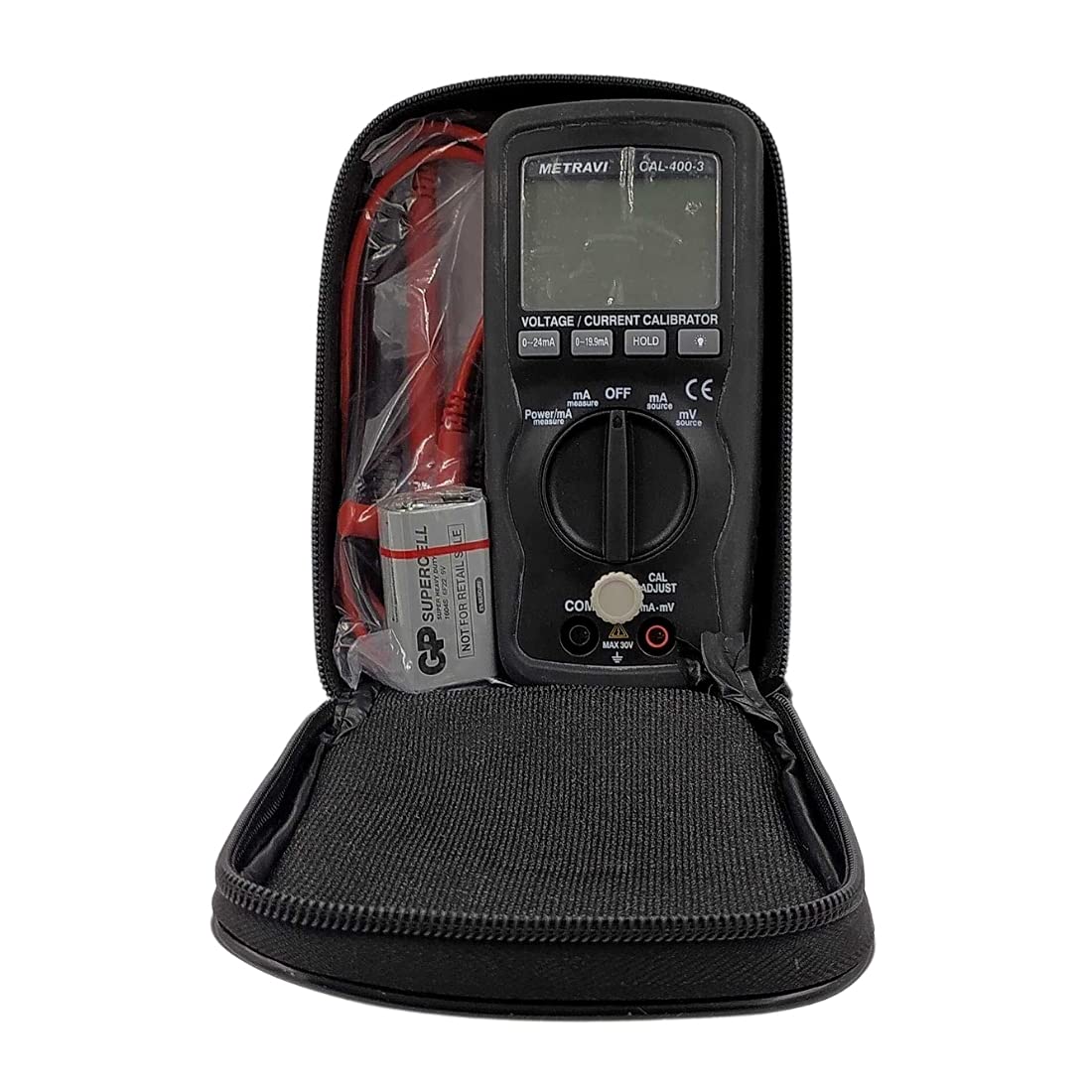

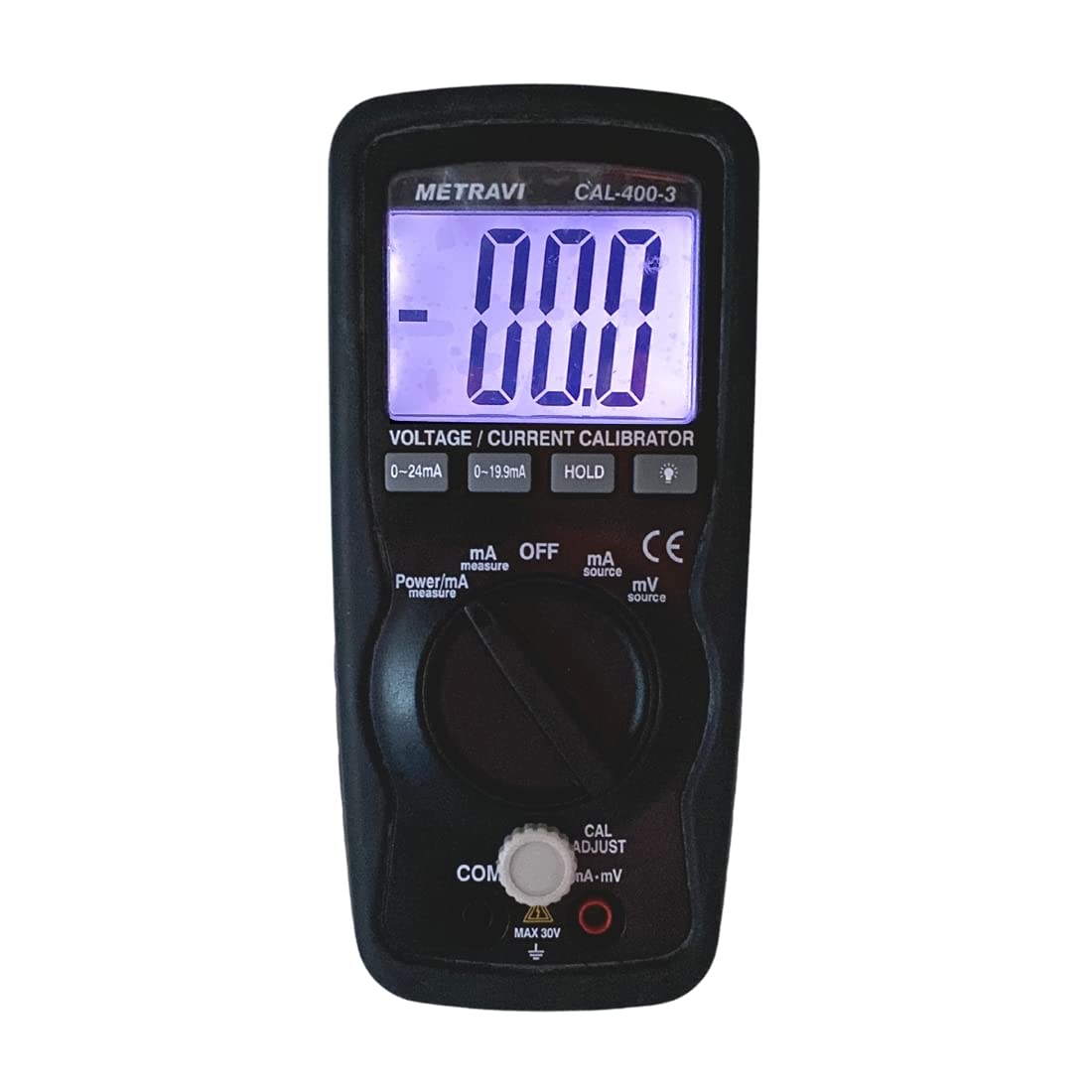

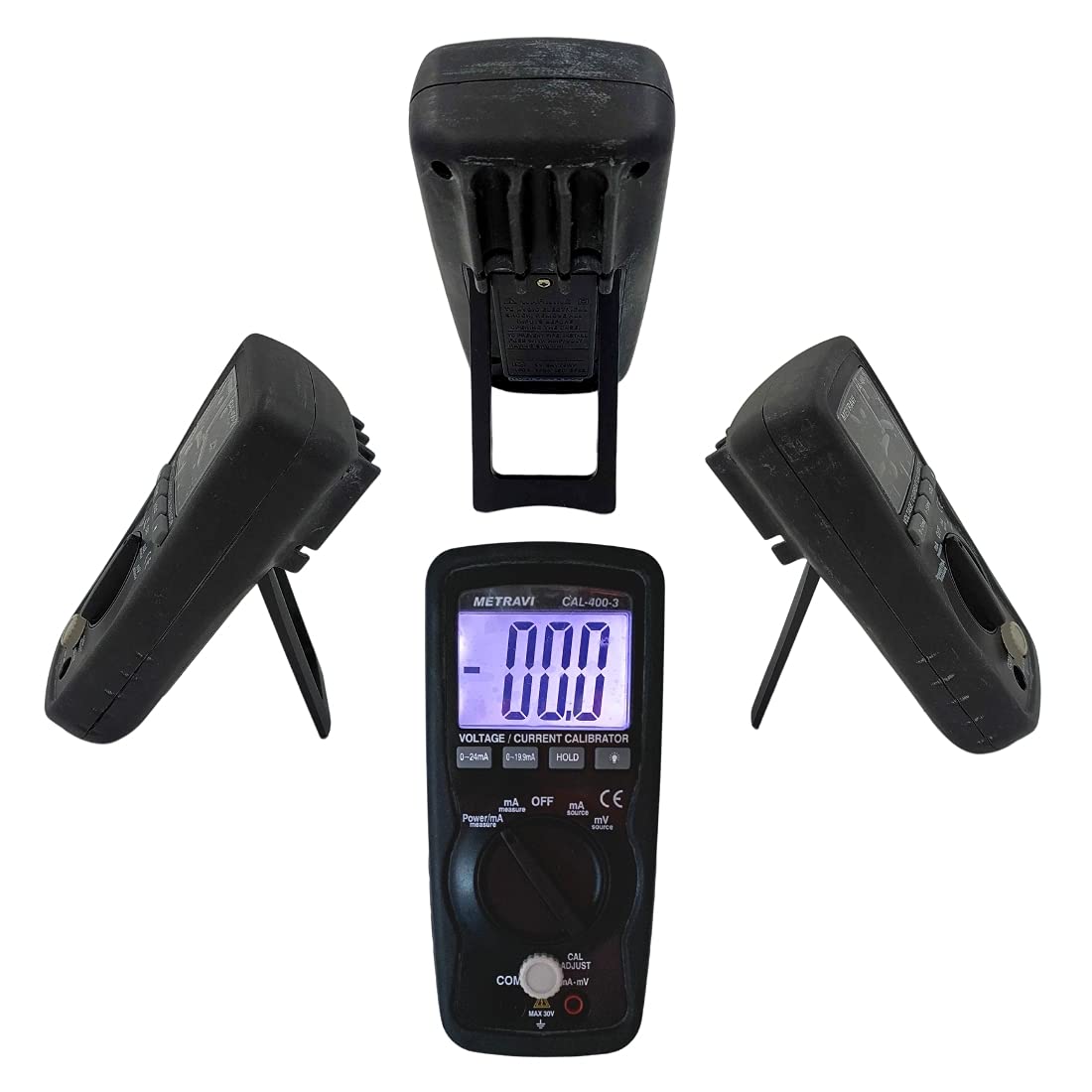

Metravi CAL-400-3 mV mA Calibrator
Metravi CAL-400-3 mV mA Calibrator
Hand Held, 3-1/2 Digits, Battery Operated, 0 – 19.99/24mA, -199.9mV to 199.9mV source and current & power measurement.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 5,950
(GST inclusive price) i-
Base Value: ₹ 5042.4
-
GST: (18) % ₹ 907.6
-
Total Value ₹ 5950
₹8,505.00
( - 30% OFF )
Description
Key Features
- Process Calibrator: Specifically for calibrating industrial process devices.
- Milli-Amp Source: Generates adjustable 0-24mA current.
- Milli-Volt Source: Generates adjustable ±199.9mV DC voltage.
- Current Measurement: Measures 0-24mA signals.
- 2-Wire Loop Power/Measure: Powers and measures 2-wire current loops.
- High Accuracy: Offers high precision, typically ±(0.25% FS+1 d).
- Portable Design: Handheld, compact, and battery-operated.
- Clear LCD Display: Easy to read measurements.
- Drives Loads: Can drive loads up to 500 ohms.
- Multiple Functions: Combines source and measurement capabilities for versatility.
What's in the box?
|
Rating & Reviews
Rating
GENERAL SPECIFICATIONS
| Display | LCD display, max display counts 1999. |
| Function | Current source |
| Current measurement | |
| Power and current measurement | |
| DC mV source | |
| Sampling Time | Approx. 0.4 second. |
| Over input Indication | Indication of "1". |
| Operating environment | Current measurement: Approx. DC 12mA Power and current measurement: Approx. DC 33mA Current source(under 10 mA signal out put): Approx. DC 33mA DC mV source(under 100mV signal out put):Approx. DC 12mA |
| Power Supply | DC9V,NEDA1604/IEC6F22 battery or equivalent. Alkaline type or heavy duty type. |
| Power Consumption | 0°C to 50°C (32° to 122°). at < 70% relative humidity. |
| Dimension | 150 (H) x 70 (W) x 40 (D) mm |
| Weight | Approx.: 232g (incluing battery.) |
TECHNICAL SPECIFICATIONS
| Current source | ||
| Range | display resolution | Accuracy |
| 0-19.99mA | 0.01mA | ± (0.25%FS+1d) |
| 0-24mA | 0.1mA | ± (0.5%FS+1d) |
| Current measurement | ||
| Range | Display Resolution | Accuracy |
| 0-19.99mA | 0.01mA | ±(0.25%FS+1d) |
| 0-24mA | 0.1mA | ±(0.5%FS+1d) |
| Power and current measurement of two wire loop | ||
| Range | Display Resolution | Accuracy |
| 0-19.99mA | 0.01mA | ±(0.25%FS+1d) |
| 0-24mA | 0.1mA | ±(0.5%FS+1d) |
| DC mV source | ||
| Range | Display Resolution | Accuracy |
| -199.9mV to +199.9mV | 0.1mV | ±(0.25%FS+1d) |
