Metravi M-05S mV mA Loop Calibrator
Click To Zoom
Metravi M-05S mV mA Loop Calibrator
Metravi M-05S mV mA Loop Calibrator
5 Digits, 0.05% Accuracy, Sources DC Current, Analogue Transducer & Loop Power and Measures DC Voltage, DC Current and Loop Power Supply. IP40 and 1m drop test.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 30,070
(GST inclusive price) i-
Base Value: ₹ 25483.1
-
GST: (18) % ₹ 4586.9
-
Total Value ₹ 30070
₹42,998.00
( - 30% OFF )
Description
Key Features
- Basic functions: DC Voltage DCV, DC Current DCI
- Maximum measurement accuracy is 0.05% • Display is 5 digits.
- Measurement rate: 2-3 times/sec.
- Loop detection function
- Internal 24V circuit power supply
- Simultaneous measurement of current.
- mA has a percentage display mode
- Basic functions: DC current DCI
- Maximum measurement accuracy is 0.05%
- Measurement display is 5 digits
- Output settings can be manually increased or decreased by position
- DCI output includes active output (internal 24V power supply)
- Passive output (external 24V power supply).
- mA has a percentage display mode.
- During DCI output, it can provide manual stepping and automatic waveform output functions
- The manual stepping output mode includes: 25% stepping and 100% stepping.
- The output current is selectable from 0~20mA or 4~20mA.
- Automatic wave output type includes automatic step, sawtooth wave, triangle wave, and automatic waveform working parameters can be configured.
- Internal 24V circuit power supply
- It has maintenance setup functions, including Auto power-off, backlight and flashlight
- The segment code is displayed on the LCD with a white backlight.
- LED flashlight for lighting.
- Powered by 3 AA battery cells
- Battery compartment door is convenient for battery replacement.
- Low-battery detection
- Small, firm, reliable, suitable for field use

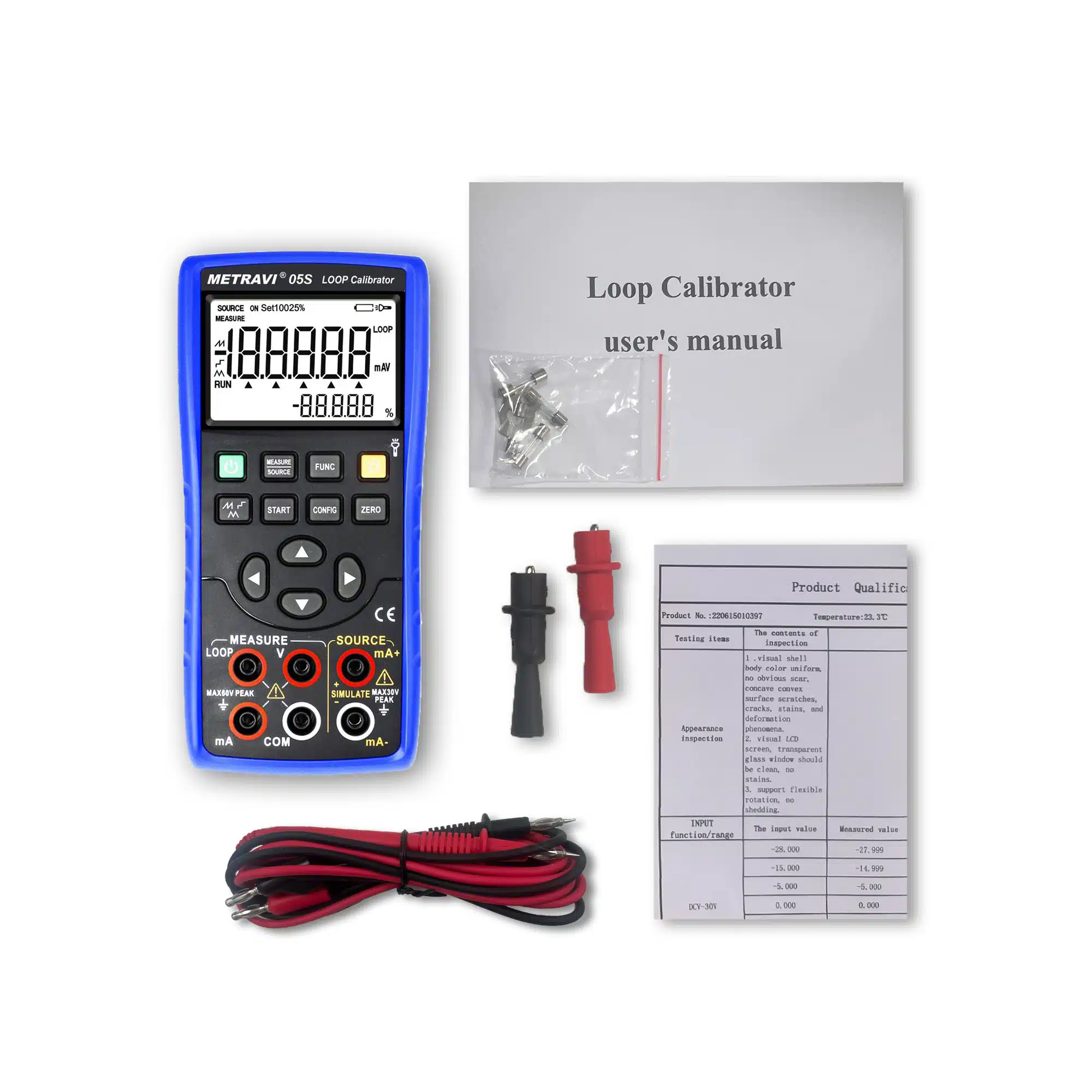

What's in the box?
|
Rating & Reviews
Rating
GENERAL
- Operating temperature and humidity: 0 to 50ºC ≤80%RH without condensation; 40 to 50ºC ≤70%RH.
- Storage temperature and humidity: -25 to 60ºC ≤90%RH without condensation.
- Electrical safety: EN61010-1:2001 • Withstand voltage: AC3540V(50/60Hz)/5 seconds between terminal and housing.
- Insulation impedance: DC1000V/100MΩ or more between terminal and housing.
- Electromagnetic compatibility (EMC): EN61326-1:2006
- Performance criterion 2 is met, i.e. the function and performance are temporarily reduced or lost, but can be recovered by themselves.
- Protection grade IP40.
- Vibration and fall: IEC 60068-2-64:2008, IEC 60068-2-32:2008
- Random, 2g, 5-500Hz; 1m drop test.
- CE certification.
- Quality standard: developed, designed and manufactured in accordance with TUV ISO 9001.
- Calibration period and preheating time:
- To ensure the accuracy of the Table, the calibration period is one year.
- The startup preheating time is more than 30 minutes.
- Instrument display and key
- Segment code LCD display, white backlight
- Rubber key is adopted
- Instrument power supply
- Power: 3 pcs of AA alkaline batteries
- Dimension and weight
TECHNICAL
ANALOGUE MEASUREMENT FUNCTIONS
| Output function | Range | Output range | Resolution | Accuracy | Remarks |
| DC current DC | 30mA | 0.000mA~30.000mA | 0.001mA | 0.05%+4uA | At 20 mA, maximum load 1000Ω resistance. When simulating the transmitter, the external circuit power supply is 5~28V |
- Used within one year after calibration, 23°C ± 5°C, 20-70% RH, Accuracy=± (% set value+% reading).
- Uncertainty includes standard uncertainty, hysteresis, nonlinearity, repeatability, and typical long-term stability over the period mentioned (K = 2).
- Maximum applied voltage at input end: about 30Vpk; Maximum applied current at input end: about 25mA
- The temperature range of internal temperature compensated sensor RJC is -10 to 50°C. The temperature measurement accuracy at 18 to 28°C is ±0.5°C, and the temperature measurement accuracy at other temperature is ±1°C. Cold end compensation time is 10S/ times.
- Temperature coefficient: 0.1 × basic accuracy/℃ (temperature range < 18°C or > 28°C)
| Output function | Range | Output range | Resolution | Accuracy | Remarks |
| DC voltage D | 35V | -35.000V~35.000V | 0.001V | 0.02%+2mV | Input resistance: approximately 1MΩ |
| DC current D | 30mA | -35.000mA~35.000 mA | 0.001mA | 0.02%+4uA | Shunt resistance: approximately 10Ω Input resistance: approximately 20Ω |
| Loop power supply LOOP | 24 V | 10% | Short circuit protection Maximum current: 22 mA Maximum input voltage: 60 V DC |
- Used within one year after calibration, 23°C ± 5°C, 20-70% RH, Accuracy=± (% set value+% reading).
- Uncertainty includes standard uncertainty, hysteresis, nonlinearity, repeatability, and typical long-term stability over the period mentioned (K = 2).
- Display refresh rate: 2~3 times / second.
- Maximum applied voltage at input end: 60 Vpk; Maximum applied current at input end: 50mA.
- Current input protection: 100mA/250V Fast FUSE
- Input common-mode rejection: 50Hz /60 Hz > 120 db; Input serial-mode rejection: 50Hz /60 Hz > 60 db
- The temperature range of internal temperature compensated sensor RJC is -10 to 50°C. The temperature measurement accuracy at 18 to 28°C is ±0.5°C, and the temperature measurement accuracy at other temperature is ±1°C. Cold end compensation time is 10S/ times.
- Temperature coefficient: 0.1 × basic accuracy / °C (temperature range <18°C or >28°C)
