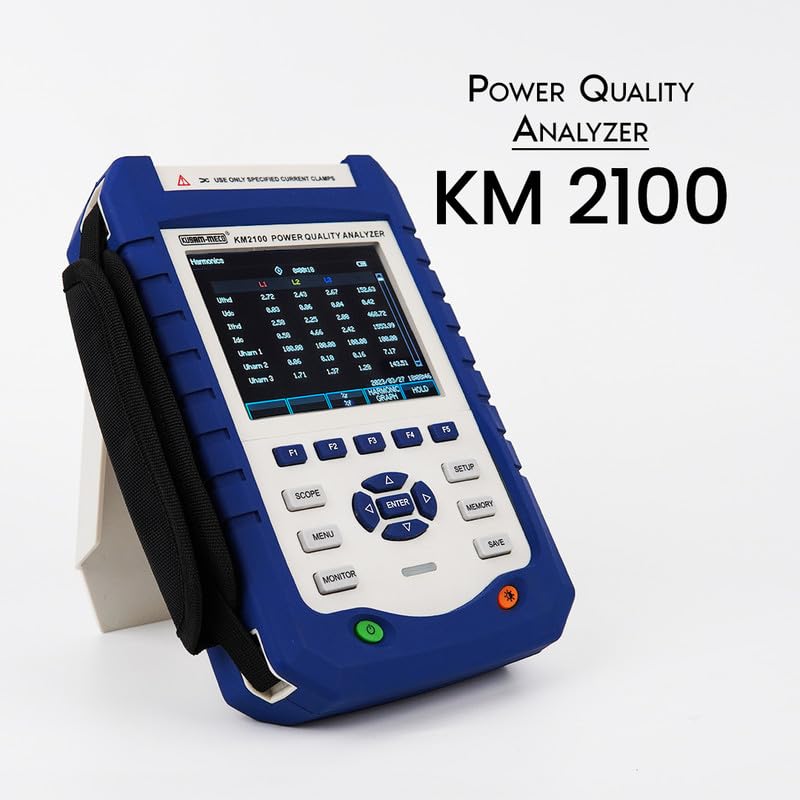

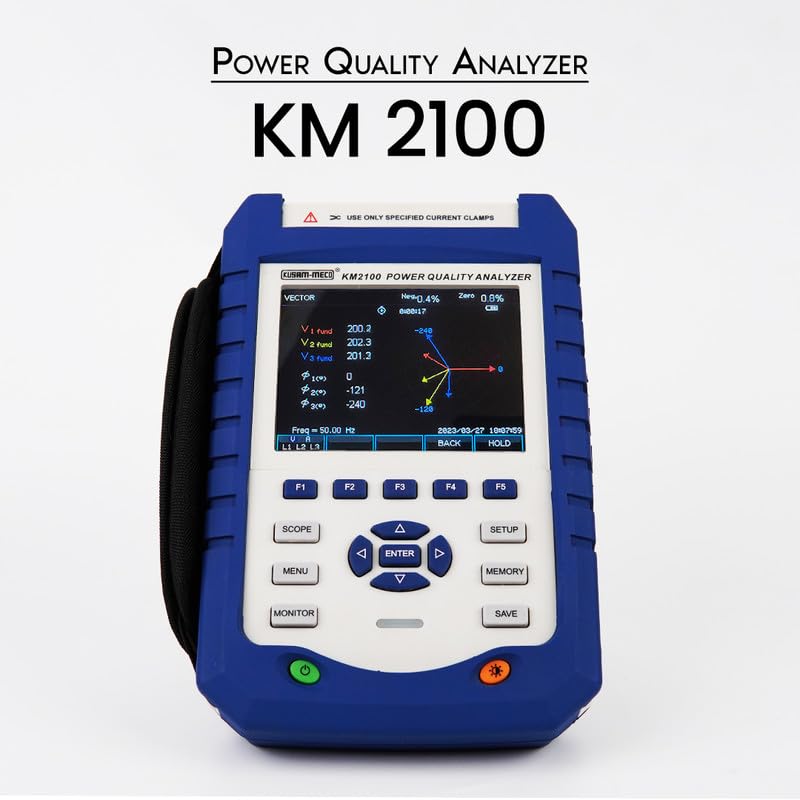

Kusam Meco KM 2100 Power & Harmonics Analyzer
Click To Zoom
Kusam Meco KM 2100 Power & Harmonics Analyzer
Kusam Meco KM 2100 Power & Harmonics Analyzer
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 1,99,100
(GST inclusive price) i-
Base Value: ₹ 168728.8
-
GST: (18) % ₹ 30371.2
-
Total Value ₹ 199100
₹3,27,950.00
( - 23% OFF )
Description
Key Features
- Full electrical parameter measurement.
- Harmonics analysis up to 50th.
- Supports single and three-phase.
- 5.6-inch high-resolution TFT display.
- Large internal data storage.
- USB for PC connectivity.
- LAN for remote access.
- High safety rating compliant.
- Meets power quality standards.
- Lightweight, portable for field use.

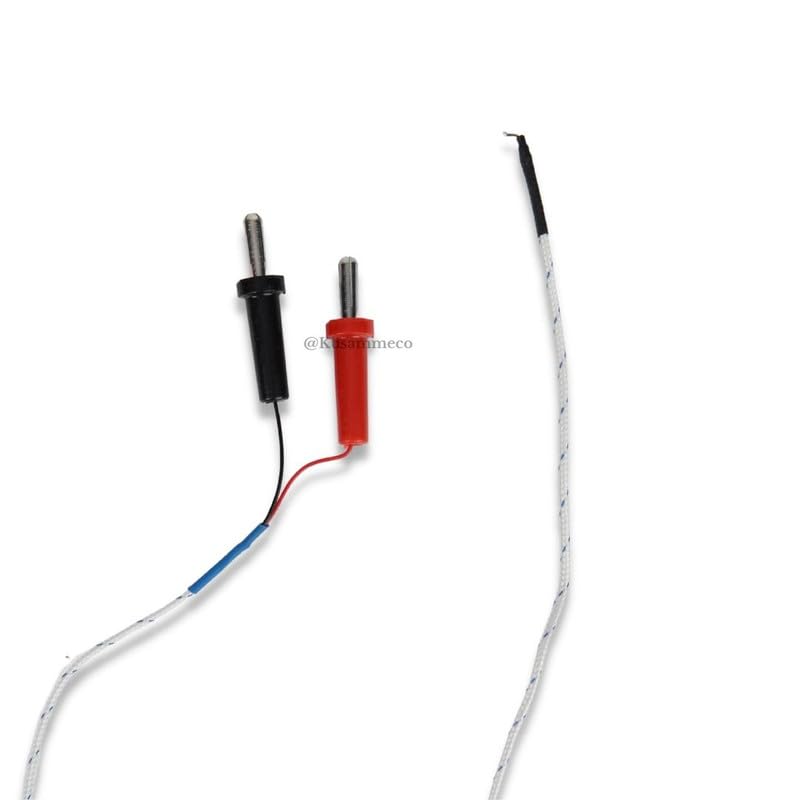

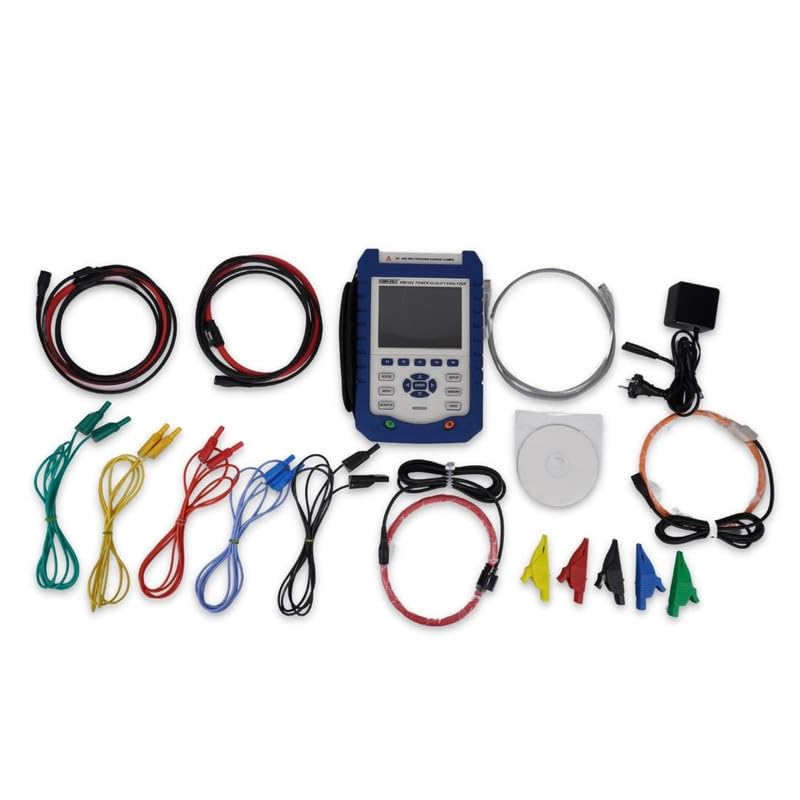

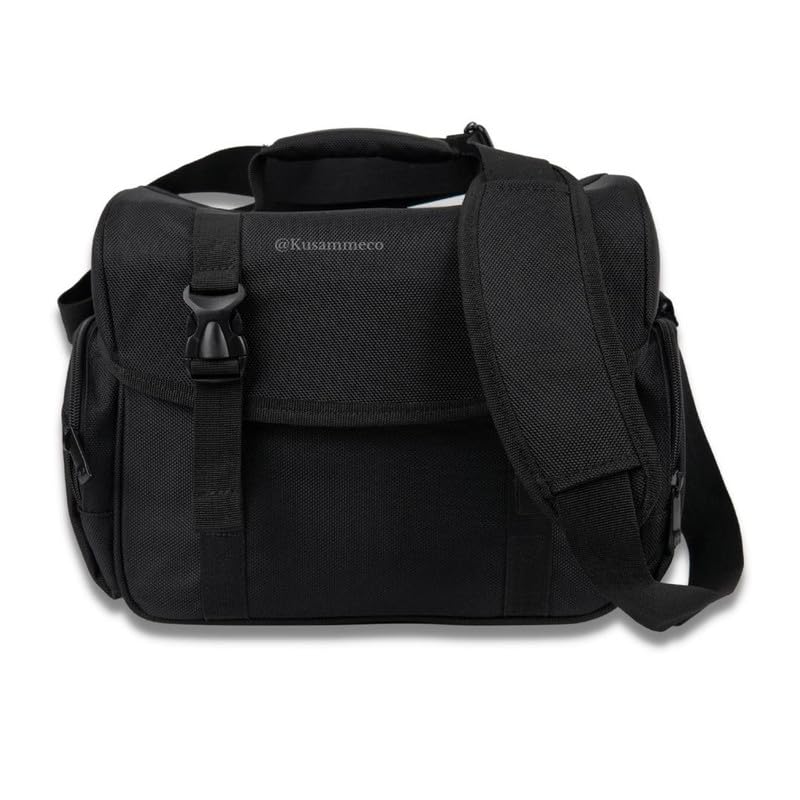

What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Interface (USB Host) | download file to PC by U disk for analyze with PC software |
| Lan | For remote control of the Analyzer & measurement data transmission |
| Working Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 90% relative humidity |
| Power Supply | |
| Adapter input | 90 ~ 264V |
| Adapter output | 12V 2A |
| Battery | Rechargeable Ni-MH 7.2V 3.8Ah |
| Battery working time | > 7 hours |
| Battery charge time | 6 hours |
| Sampling System | |
| Resolution | 8 channels 16 bits AD |
| Sampling Rate | 20kS/s for each channel, 8 channels sample synchronously |
| RMS Sampling | 5000 points for 10/12 cycles (according to IEC 61000-4-30) |
| PLL Sync | 4096 points for 10/12 cycles (according to IEC61000-4-7) |
| Current Input | |
| Number of Input | 4 (3 phase + neutral) DC coupling |
| Type | Clamp current sensor with mV output |
| Input Range | 1 to 5000 Arms with supplied current clamps |
| Input Impedance | 50kW |
| Bandwidth | >3kHz |
TECHNICAL
| VOLTAGE / CURRENT / FREQUENCY | ||||
| Functions | Range | Resolution | Accuracy | |
| Vrms(AC+DC) | 1 ~ 1000Vrms | 0.1 Vrms | ±0.5% of nominal voltage | |
| Vpk | 1 ~ 1400Vpk | 0.1 Vpk | ±0.5% of nominal voltage | |
| V(Crest Factor) | 1.0 ~ >2.8 | 0.01 | ± 5% | |
| Arms (AC | 10mV/A | 0 ~ 100A | 0.1A | ±0.5% ± 0.2A |
| 1mv/A | 1 ~1000A 0.1A | 0.1A | ±0.5% ± 0.2A | |
| 50mV (65mV)/ 1000A | 15 ~ 5000A | 1A | ±1% ± 2A | |
| A(Crest Factor) | 1 ~ 10 | 0.01 | ± 5% | |
| Frequency | 42.5 ~ 57.5Hz (50Hz nominal) | 0.01Hz | ± 0.01Hz | |
| 385 ~ 414Hz (400Hz nominal) | 0.01Hz | ± 0.01Hz | ||
| DIPS AND SWELLS | |||
| Functions | Range | Resolution | Accuracy |
| Vrms 1/2 | 0 ~ 200% of nominal Voltage | 0.1 Vrms | ± 1 % |
| Arms 1/2 | 1 ~ 3000% A | 1A | ± 1 % ± 2A |
| Threshold levels | Thresholds is settable according to nominal voltage percentage Detectable events type : Dips, Swells, Interruption, Voltage Rapid Change | ||
| Duration | hour-minute-secondmicrosecond | 0.5 cycle | 1 cycle |
| HARMONIC | |||
| Functions | Range | Resolution | Accuracy |
| Harmonic Number | 1 ~ 50 | ||
| Inter-Harmonic (KM 2100) | 1 ~ 49 | ||
| Harmonic Voltage | 0.0 ~ 100.0 % | 0.1 % | ± 0.1 % ± nx0.1 % |
| Harmonic Current | 0.0 ~ 100.0 % | 0.1 % | ± 0.1 % ± nx0.1 % |
| THD | 0.0 ~ 100.0 % | 0.1 % | ± 2.5 % |
| DC Relative | 0.0 ~ 100.0 % | 0.1 % | ± 0.2 % |
| Frequency | 0 ~ 3500Hz | 1Hz | 1Hz |
| Phase | -360° ~ 0 | 1° | ± nx1.5° |

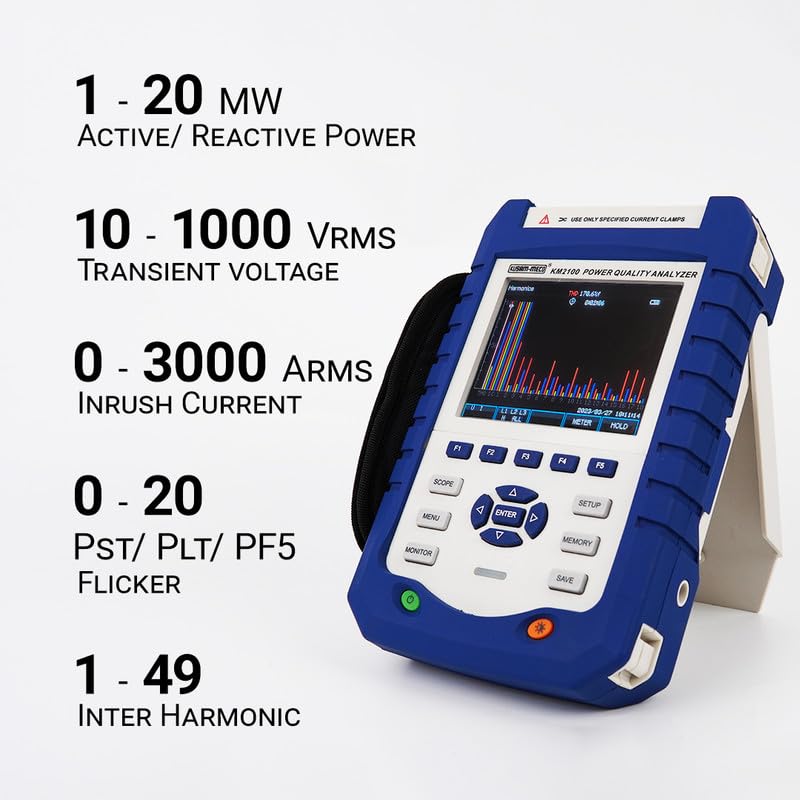

| POWER AND ENERGY | |||
| Functions | Range | Resolution | Accuracy |
| Active Power | 1.0 ~ 20.00 MW | 0.1KW | ± 1.5 ± 10 counts |
| Apparent Power | 1.0 ~ 20.00 MW | 0.1KW | ± 1.5 ± 10 counts |
| Reactive Power | 1.0 ~ 20.00 MW | 0.1KW | ± 1.5 ± 10 counts |
| Kwh | 0.00 kWh ~ 200 GWh | 10Wh | ± 1.5 ± 10 counts |
| Power Factor | 0 ~ 1 | 0.01 | ± 0.03 |
| Displacement Power Factor | 0 ~ 1 | 0.01 | ± 0.03 |
| VOLTAGE TRANSIENT | |||
| Functions | Range | Resolution | Accuracy |
| Vpk | 6000Vpk | 1 V | ± 15 % |
| Vrms | 10 ~ 1000Vrms | 1 V | ± 2.5 % |
| Min. Test Time | 50 us | ||
| Sampling Rate | 20 kS / s | ||
| FLICKER | |||
| Functions | Range | Resolution | Accuracy |
| Pst (1min), Pst, Plt, PF5 | 0.00 ~ 20.00 | 0.01 | Within ± 5% of table value according to IEC61000-4-15 |
| INRUSH CURRENT | |||
| Functions | Range | Resolution | Accuracy |
| Arms (AC + DC) | 0 ~ 3000 Arms | 0.1 | ± (1 % ± 5 counts) |
| Inrush Duration | 6s ~ 32min selectable | 10 ms | ± 20 ms |
| DISTORTION FACTOR | |||
| Functions | Range | Resolution | Accuracy |
| THD | 0.0 ~ 100.0% | 0.1% | ± 2.5% |
| DISTORTION FACTOR | |
| Functions | Range |
| Recording | User-defined parameters for 4 phases at the same time |
| Memory | Data stored in TF Card, 8GB |
| Duration time | 2hrs to 1 year |
| Interval | 1s to 1 hrs |
