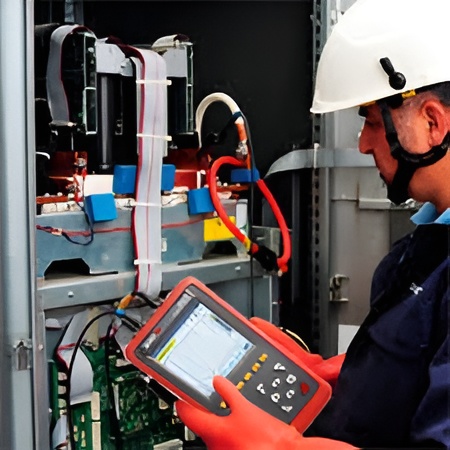

Metravi PRO 531 Portable Power Quality Analyser
.jpeg "Metravi PRO 531 Portable Power Quality Analyser")
Click To Zoom
Metravi PRO 531 Portable Power Quality Analyser
Metravi PRO 531 Portable Power Quality Analyser
The Metravi PRO 531 is a comprehensive test instrument carefully developed and specially designed for field tests of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use with a large LCD screen display, high resolution, shock-proof shell structure, and so on.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,98,240
(GST inclusive price) i-
Base Value: ₹ 168000
-
GST: (18) % ₹ 30240
-
Total Value ₹ 198240
₹2,83,500.00
( - 30% OFF )
Product Accessories
Description
Key Features
- Comprehensive analysis and diagnosis of all the voltage, current, power, electrical energy, harmonic, phase, and other electric parameters.
- Many kinds of current sensors provide a choice to cope with a variety of measurement sites.
- 4-channel current and 4-channel voltage measurement, simultaneously capturing and recording electric parameters and waveforms, to provide with all the power quality information for working
What's in the box?
|
Rating & Reviews
Rating
Technical Specification | |||
Host Model | PRO 531 Power Quality Analyzer | ||
Power Supply | Rechargeable lithium battery 9.6V, 4500mAH, external charger; working current about 490mA, battery can continuously working 8 hours | ||
Display Mode | LCD colour screen, 640×480, 5.6 inches, display field 116mm × 88mm | ||
Current Test | Current Clamps: 008B; 040B; 068B; 300F (optional at extra cost) | ||
Voltage Test | Line voltage: 1.0V ~ 2000V; Phase voltage: 1.0V ~ 1000V | ||
Electricity Energy Parameter | W, VA, var, PF, DPF, cosφ, tanφ, Wh, Varh, Vah | ||
Number of Channels | 4 Voltages, 4 Currents | Three-Phase Unbalance | Yes |
Frequency | 40Hz ~ 70Hz | Start Current Mode | Yes, 100 seconds |
Harmonic Wave | Yes, 0 - 50 times | Peak Value | Yes |
Total Harmonic Distortion | Yes, 0 - 50 times, each phase | Phasor Diagram Display | Automatic |
Expert Mode | Yes | Screenshot Capacity | 60PCS |
Transient Record Groups | 150 groups | Menu Language | Chinese, English |
Voltage Flicker | Yes | Communication Interface | USB |
Alarm | 40 different types of parameter selection, 12800 group alarm logs | ||
Automatic Shut Down | In the alarm/trend graph recording/transient capture mode (waiting or in progress), the instrument does not automatically shut down | ||
In other test modes, there is no button operation within 15 minutes, prompting to automatically shut down after 1 minute. | |||
Min/Max Recorded Value | Yes, the max min value can be measured for a certain time | ||
Record | 300 days (record 20 parameters simultaneously, every 5 seconds record 1 point) | ||
Backlight Function | Yes, suitable for dark places and night-time use | ||
Meter Size | 240mm×170mm×68 mm | ||
Weight | 10.5 Kg | ||
Input Resistance | Test voltage input impedance: 1MΩ | ||
Suitable Safety Standard | IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution Degree 2 | ||
CURRENT SENSOR CHARACTERISTICS (Optional) | |||
Current Sensor Model | Current True RMS | Current True RMS | Phase Angle φ |
CLAMP-10 | 10mA ~ 99mA | ±(1 % + 3dgt) | ±(1.5°), Arms≥20mA |
100mA ~ 10.0A | ±(1 % + 3dgt) | ±(1°) | |
CLAMP-100 | 0.10A ~ 0.99A | ±(1 % + 3dgt) | ±(1.5°) |
1.00A ~ 100A | ±(1 % + 3dgt) | ±(1°) | |
CLAMP-1000 | 1.0A ~ 9.9A | ±(2 % + 3dgt) | ±(3°) |
10.0A ~ 1000A | ±(2 % + 3dgt) | ±(2°) | |
CLAMP-FLEX | 10A ~ 99A | ±(1 % + 3dgt) | ±(3°) |
100A ~ 6000A | ±(1 % + 3dgt) | ±(2°) | |
