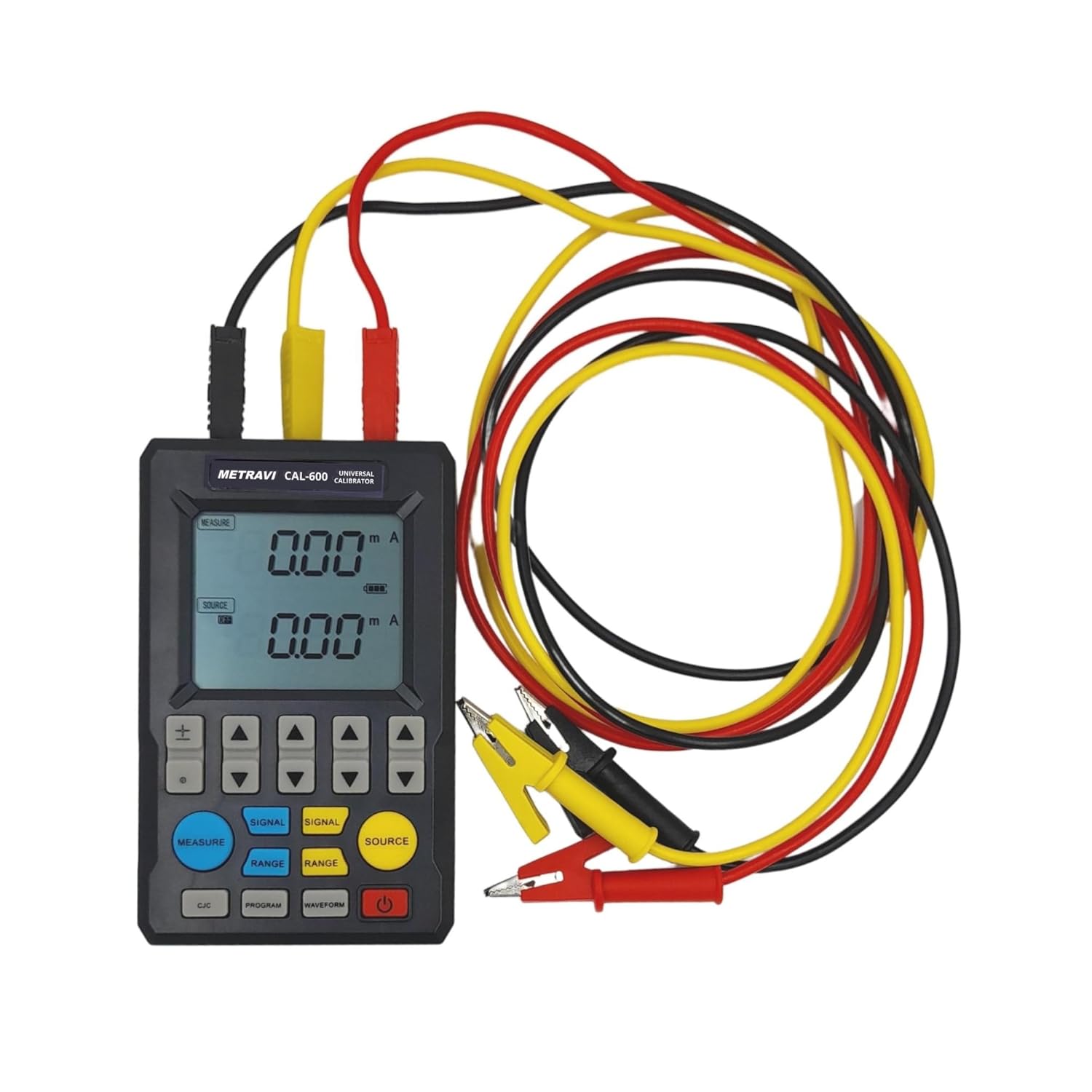

Metravi CAL-600 Universal Calibrator
Metravi CAL-600 Universal Calibrator
Hand Held, 4 Digits Large LCD Display, Measures and Provides output for 20mV / 100mV / 15V DC, Current output up to 24mA, 24V Loop Power, Resistance output and measurement and outputs for K, E, J, T, R, S, B, N types of thermocouples and PT-100 temperature sensor.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 12,460
(GST inclusive price) i-
Base Value: ₹ 10559.3
-
GST: (18) % ₹ 1900.7
-
Total Value ₹ 12460
₹17,820.00
( - 30% OFF )
Description
Key Features
- Universal Calibrator: Tests everything.
- S/M Voltage: Generates/reads DC volts.
- S/M Current: Generates/reads DC amps.
- S/M Thermocouple: Works with all common TCs.
- S/M RTD: Generates/reads RTD signals.
- S/M Resistance: Generates/reads ohms.
- High Accuracy: Super precise.
- Clear Display: Easy-to-read screen.

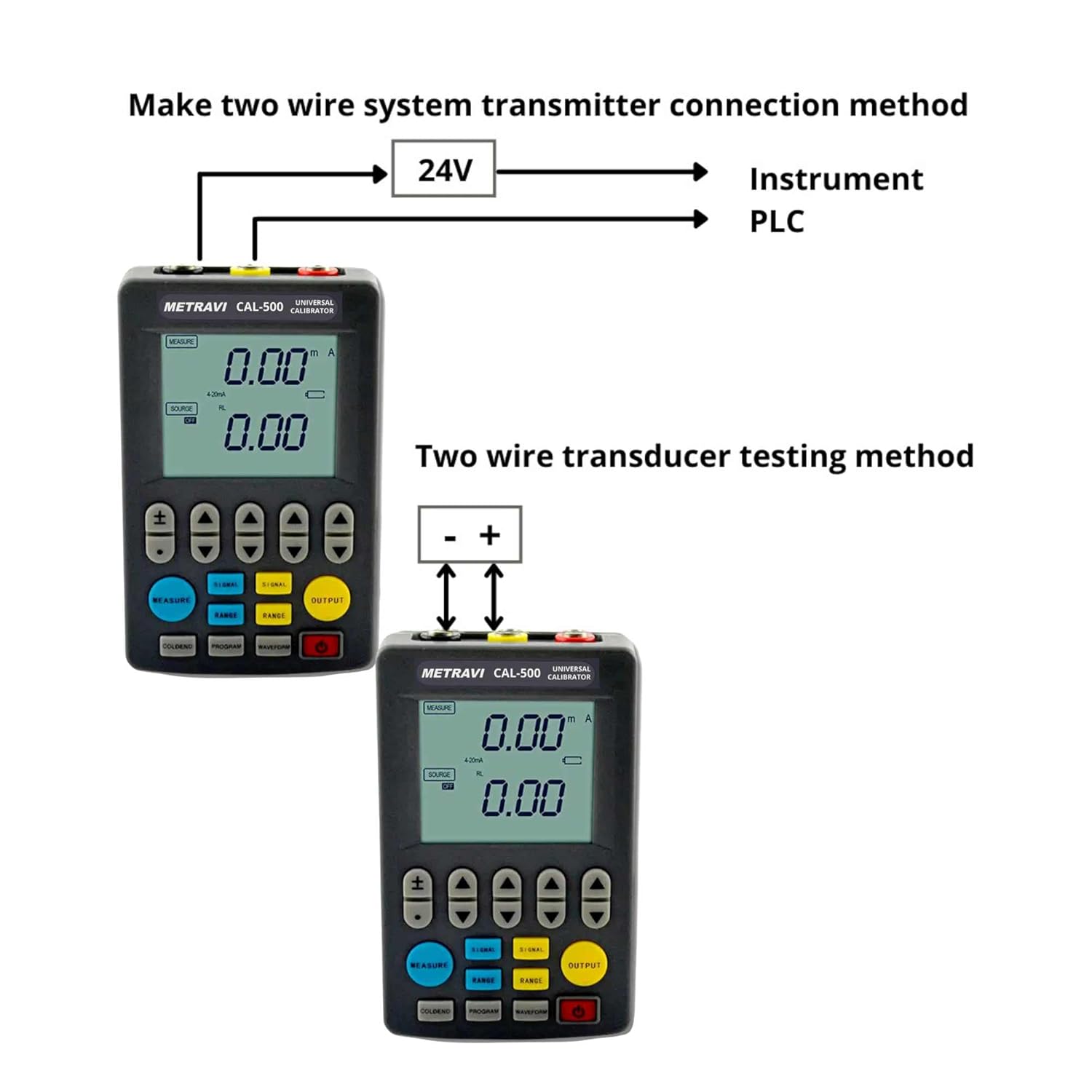

- Loop Power: Powers 2-wire devices.
- Programmable: Sets custom outputs

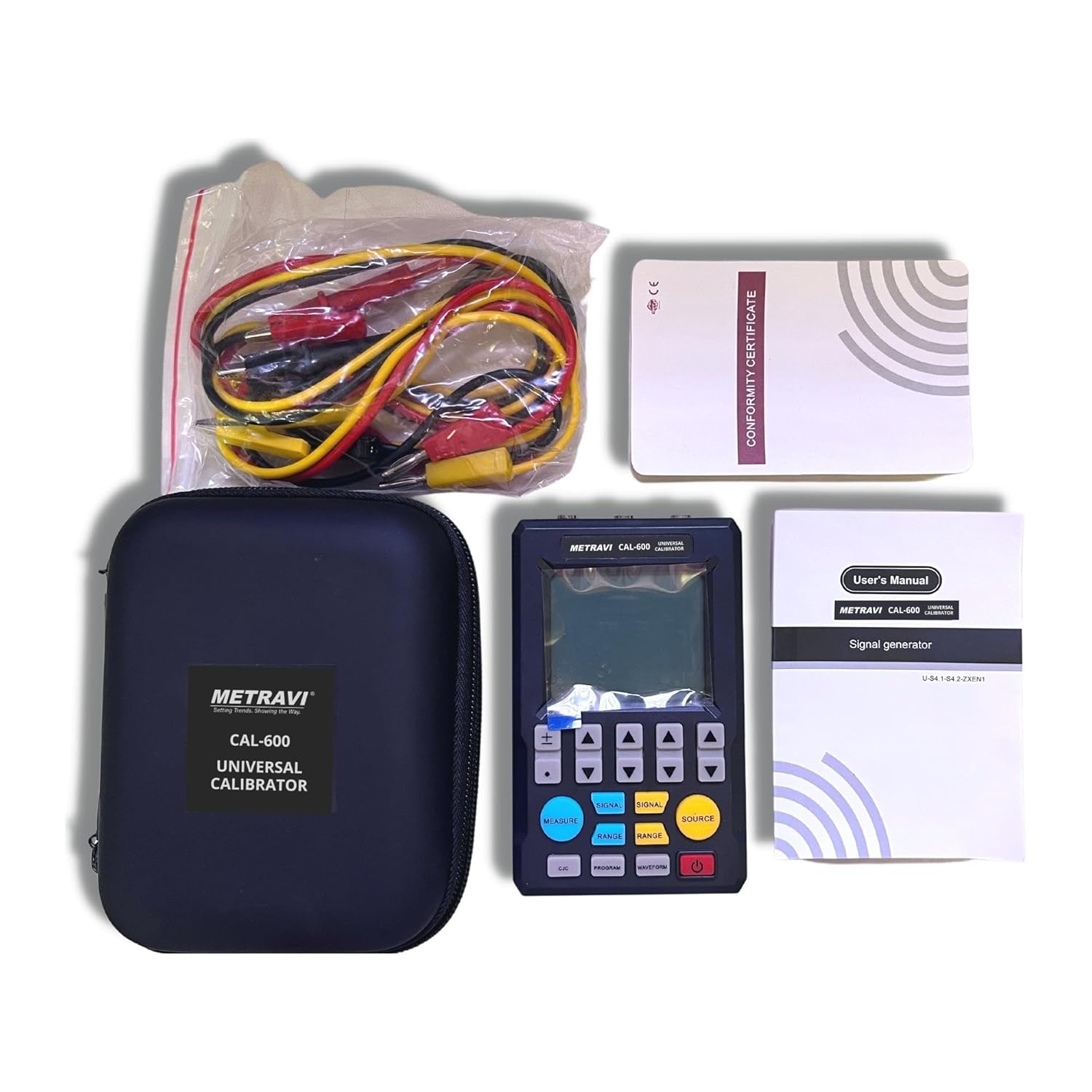

What's in the box?
|
Rating & Reviews
Rating
| Measure & Output Signal | |||||
| No. | Signal Type | Range | Accuracy | Resolution | Remarks |
| DC Voltage | 20mV | 0.00 ~ 24.00mV | ±0.2% | 0.01mV | |
| 100mV | 0.0 ~ 100.00mV | ±0.2% | 0.1mV | ||
| V | 0.00 ~ 15.00V | ±0.2% | 0.01V | Output : Maximum Current 30mA | |
| DC mA | mA | 0.00 ~ 30.00mA | ±0.2% | 0.01A | Active Current |
| 4 ~ 20mA | 4/8/12/16/20mA | ±0.2% | 0.01mA | ||
| Passive Current | mA | 0.00 ~ 24.00mA | ±0.2% | 0.01mA | Output : External Current 16·30V |
| Power Distribution Output | 24VLOOP | 24V/16V | ±0.2% | 0.01V | Drive Current : 24mA |
| Thermocouple | K | 0 ~ 1372°C | ±1% | 1°C | The output or measured temperature cannot be lower than Cold Junction Compensation. Note: The minimum exitation current is 0.5mA and the maximum exitation current is 3mA. |
| E | 0 ~ 1000°C | ±1% | 1°C | ||
| J | 0 ~ 1200°C | ±1% | 1°C | ||
| T | 0 ~ 400°C | ±1% | 1°C | ||
| R | 0 ~ 1768°C | ±1% | 1°C | ||
| B | 250 ~ 1820°C | ±1% | 1°C | ||
| S | 0 ~ 1768°C | ±1% | 1°C | ||
| N | 0 ~ 1300°C | ±1% | 1°C | ||
| Resistance** | Ω | Output 15 ~ 400Ω | ±0.2% | 0.1Ω | |
| Measure 0 ~ 400Ω | |||||
| Thermal Resistance** | PT-100 | -199° ~ 650°C | ±0.2% | 0.1Ω | |
