Fluke 725 Multifunction Process Calibrator

Fluke 725 Multifunction Process Calibrator
Fluke 725 Multifunction Process Calibrator
Fluke 725 Multifunction Process Calibrator

Fluke 725 Multifunction Process Calibrator

Click To Zoom

Fluke 725 Multifunction Process Calibrator

Fluke 725 Multifunction Process Calibrator

(Based On 10 Reviews)

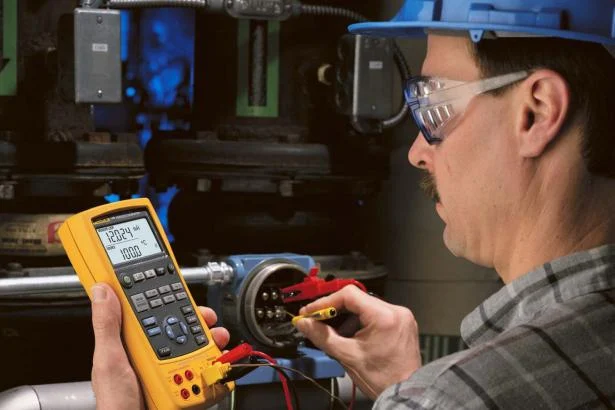

The new Fluke 725 Multifunction Process Calibrator is a powerful yet easy-to-use field calibrator. Use the measure and source functions to test and calibrate almost any process parameter

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

3 YEARS WARRANTY
3 Years Warranty Against Any Manufacturing Defects.

3 YEARS WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 3,08,422

(GST inclusive price) i
  • Base Value: ₹ 261374.6
  • GST: (18) % ₹ 47047.4
  • Total Value ₹ 308422

₹4,15,125.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Calibration of both temperature and pressure transmitters
  • Measure/source/simulate mA loop parameters
  • Measure and source mA, Volts DC, frequency, and resistance
  • Built-in 24 V loop power supply
  • Store and recall frequently used calibration set ups





What's in the box?

  • Fluke 725 Multifunction Process Calibrator

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

Maximum voltage 30V
Storage temperature-40°C to 71°C
Operating temperature10°C to 55°C
Relative humidity95% (10°C to 35°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)
Shock30g, 11ms, half-sine shock (or 1meter drop test)
VibrationRandom, 2g, 5-500 Hz
Safety0 to 30V (measure)CSA C22.2 No. 1010.1:1992
EMCEN50082-1:1992 and EN55022:1994 Class B
Size/weight96 x 200 x 47 mm (3.8 x 7.9 x 1.9 inches) 650g (23 oz)
BatteryFour AA alkaline batteries. Battery life: 25 hours typical

TECHNICAL

Function Measure or SourceRangeResolutionAccuracyNotes
Voltage

0 to 100 mV

0 to 10V (source)

0 to 30V (measure)

0.01 mV

0.01V

0.01V

02% Rdg + 2 LSDMax load, 1 mA
mA0 to 240.001 mA.02% Rdg + 2 LSDMax load, 1000Ω
mV (TC terminals)-10.00 mV to +75.00 mV.01 mV.02% Rdg + 2 LSD
Resistance15Ω to 3200Ω0.01Ω to 0.1Ω0.10Ω to 1.0Ω
Frequency

2.0 to 1000.0 CPM

2.0 to 1000.0 CPM

1.0 to 10.0 kHz

0.1 CPM

1 Hz

0.1 kHz

±.05%

±.05%

±.25%

For frequency source ,waveform is 5V p-p squarewave, -0.1V offset
Loop Supply24V dcNA

Thermocouple accuracy

ThermocoupleMeasure or Source
J

-200 to 0°C

0 to 1200°C

1.0°C

0.7°C

K

-200 to 0°C

0 to 1370°C

1.2°C

0.8°C

T

-200 to 0°C

0 to 400°C

1.0°C

0.8°C

E

-200 to 0°C

0 to 950°C

0.9°C

0.7°C

R

-20 to 0°C

0 to 500°C

500 to 1750°C

2.5°C

1.8°C

1.4°C

S

-20 to 0°C

0 to 500°C

500 to 1750°C

2.5°C

1.8°C

1.5°C

B

600 to 800°C

800 to 1000°C

1000 to 1800°C

2.2°C

1.8°C

1.4°C

L

-200 to 0°C

0 to 900°C

0.85°C

0.7°C

U

-200 to 0°C

0 to 400°C

1.1°C

0.75°C

N

-200 to 0°C

0 to 400°C

1.5°C

0.9°C
