Metravi PRO PA-800 Portable Power Quality Analyser

Metravi PRO PA-800 Portable Power Quality Analyser
Metravi PRO PA-800 Portable Power Quality Analyser
Metravi PRO PA-800 Portable Power Quality Analyser
Metravi PRO PA-800 Portable Power Quality Analyser
Metravi PRO PA-800 Portable Power Quality Analyser
Metravi PRO PA-800 Portable Power Quality Analyser
Metravi PRO PA-800 Portable Power Quality Analyser
Metravi PRO PA-800 Portable Power Quality Analyser
Metravi PRO PA-800 Portable Power Quality Analyser

Click To Zoom

Metravi PRO PA-800 Portable Power Quality Analyser

Metravi PRO PA-800 Portable Power Quality Analyser

(Based On 10 Reviews)

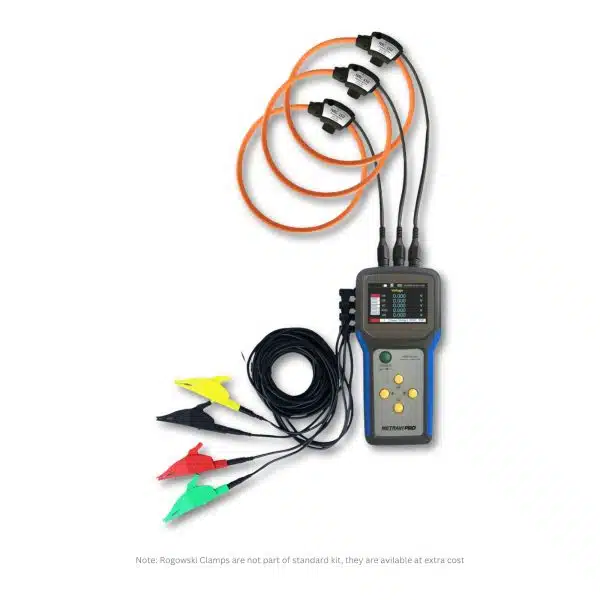

Compatible with flexible Rogowski coils CT & clamp-on CTs. Measures Currents, Voltages & reports real-time RMS values for all 3-phases & neutral. Measure/Calculate Current, Voltage, Frequency, Active Power, Reactive Power, Apparent Power, Power Factor, Voltage Angle, Current angle, Current Unbalance, Voltage Unbalance. With Data Logging, 3.5 inch color TFT Display, 51st Harmonic,  external Rogowski Coil & BNC inputs. IEC/EN 61010-1, CAT III 300V, IP20. Comes in a hard carrying case with all accessories. AA Battery Operated.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 60,099.00

(GST inclusive price) i
  • Base Value: ₹ 50931.4
  • GST: (18) % ₹ 9167.6
  • Total Value ₹ 60099

₹81,000.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Accurate Energy Measurement: Capable of measuring energy usage with high precision, ensuring detailed and reliable data for comprehensive energy analysis.
  • Wide Operating Temperature Range: Functions seamlessly in environments ranging from -25°C to +55°C, making it suitable for diverse operational conditions.
  • Durable & Portable Design: With a compact size of 21.5x10x3.5cm, it is easy to handle and transport, enhancing usability in the field
  • Multi-Functional Display: Features a 3.5-inch TFT screen display for clear visibility and efficient monitoring of power consumption and system performance.
  • User-Friendly Interface: Powered by either 4xAA batteries or USB Type-C, allowing for up to 7 hours of battery operation or continuous use when plugged into a power source.
  • Building Energy Load Profiling: Track energy usage over time to understand load distribution.
  • Peak Power Usage Determination: Identify when and where peak demand occurs.
  • Power Quality Testing: Assess supply quality, voltage dips, and harmonics to ensure compliance with standards.
  • Solar PV System Planning: Optimize panel count and placement based on energy usage data.
  • Backup Power System Planning: Determine the required inverter and battery capacity for backup solutions.
  • Generator Sizing & Planning: Ensure the correct generator capacity for reliable backup power.
  • Enhance energy efficiency and reduce wastage.
  • Improve Power Factor to lower energy costs.
  • Monitor peak-demand (KVA) usage to identify cost-saving measures.
  • Prevent phase imbalances and avoid overloading issues.

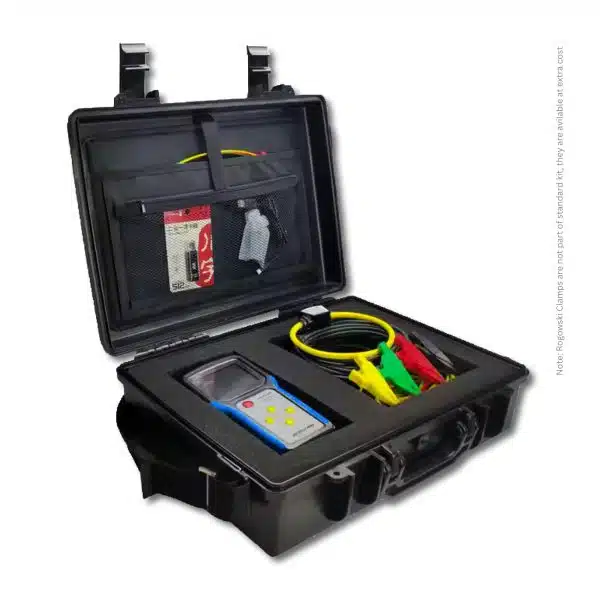

What's in the box?

  • Metravi PRO PA-800 Portable Power Quality Analyser
  • 4pcs Voltage Clamp Wires with banana plug (2 meters,1.5mm²)
  • 85-265 AC to 9V DC Power Adaptor, SD card 1GB.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL SPECIFICATIONS

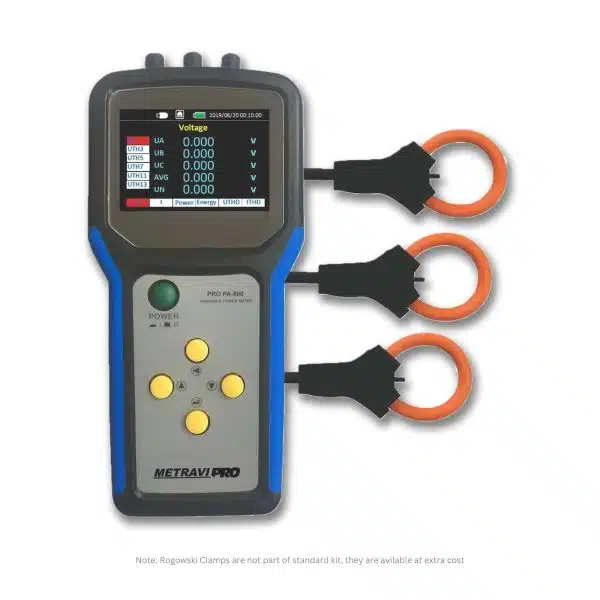

Display3.5 inch TFT backlit display
Power4*AA battery (working time: approx 7 hours) Or USB Type-C
Storage4GB SD card(Max 4GB) (save intervals 1mins default)
Weight350g
Dimensions L*W*D:21.5*10*3.5CM
Maximum Altitude 3000m max.
Operating Temperature-25°C to +55°C
Storage Temperature-40°C to +85°C
Humidity Rating 5 to 95% RH at 50°C (non-condensing)
TECHNICAL SPECIFICATIONS
Poles3PH4W 3PH3W 1PH2W (L-N) 1PH2W(L-L);1PH3W(L-L-N)
Sampling Rate 8k samples per second
Harmonic 52nd Max

Rated Current

(5 levels selectable)

100A (0.5% from 10A to 120A)

600A(0.5% from 10A to 720A)

1000A(0.5% from 10A to 1200A)

3000A(0.5% from 30A to 3600A)

6000A(0.5% from 60A to 7200A)

CurrentPer phase, neutral, and average of 3 phases
Voltage L-L, L-N, and average of 3 phases 0.2% from 60V to 500V
Power Factor (true) Total and per phase; 0.000 to 1 (signed)±0.005
Active / Apparent Power Total and per phase (signed); IEC62053-22 Class 0.5
Reactive Power Total and per phase (signed); IEC62053-21 Class 2
Frequency 0.01% from 45 to 65Hz
Angle Voltage angle, Current angle
Current Imbalance Per phase, most unbalanced of 3 phases
Voltage ImbalanceMost unbalanced of 3 phases
Active Energy 0 to 999.9GWh ; IEC62053-22 Class 0.5s
Reactive Energy 0 to 999.9GVARh ; IEC62053-21 Class 2
Primary Current Range0 to 999.9GVAh
Primary Current Range Input

100A: 0.5A to 120A

600A: 0.5A to 720A

1kA: 1A to 1200A

3kA: 3A to 3600A

6kA: 6A to 7200A

Measurement Input Range 1/225mV-333mV
Permissable Overload 600mV for 10s/hours
MAX / MIN View & reset functions, with time stamping

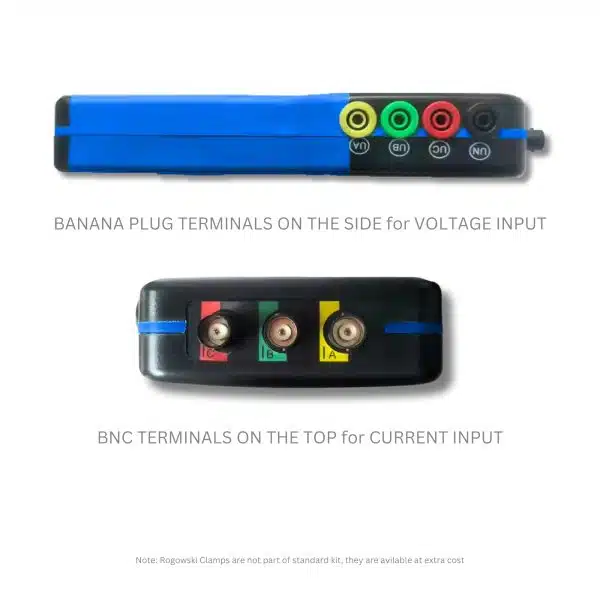

Terminals

Current Input: BNC Connectors

Voltage Input: Banana Plugs

DC Power Supply: DC 5.5*2.1 Plug

Input TypeExternal Rogowski Coil; External CT (333mV only)

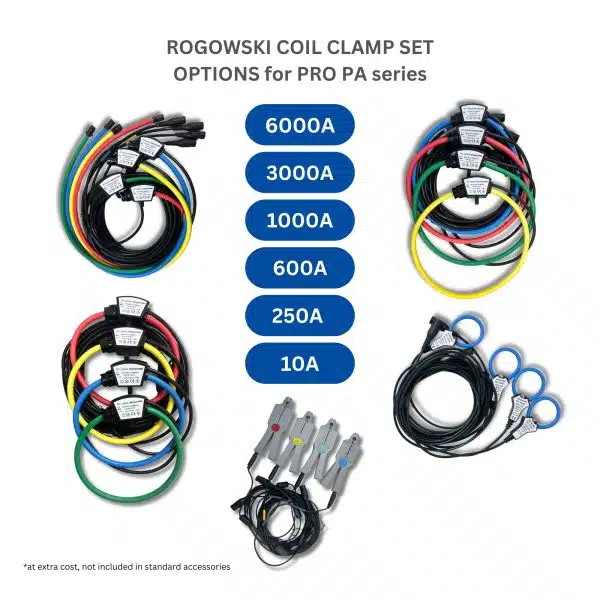

Compatible Sensors

3pcs BNC terminal 333mV CT

3pcs BNC terminal 320mV Current Clamp

3pcs BNC terminal Rogowski Coil

Safety & ComplianceOvervoltage Category III for distribution systems up to 277/480VAC
Dielectric Withstand

As per IEC61010-1, doubled insulated front panel display

EN 62052-11,EN61557-12,EN 62053-21,EN 62053-22,EN 62053-23, EN 50470-1,EN 50470-3, EN 61010-1,EN 61010-2,EN 61010-031

ProtectionIP20 conforming to IEC 60629
EMC Ratings

Electrostatic discharge Level IV (IEC61000-4-2)

Immunity to radiated fields Level III (IEC61000-4-3)

Immunity to fast transients Level IV (IEC61000-4-4)

Immunity to surge Level IV (IEC61000-4-5)

Conducted immunity Level III (IEC61000-4-6)

Immunity to power frequency magnetic fields 0.5mT (IEC61000-4-8)

Conducted and radiated emissions Class B (EN55022 )

Storage4GB SD card (Max 4GB) (save intervals 1min default)
Data LoggingMicro SD card 4GB (default) ; store about 1K Bytes data each time ;
Recording Interval1s to 9999s（default 1min）
Recording Formatcsv format
