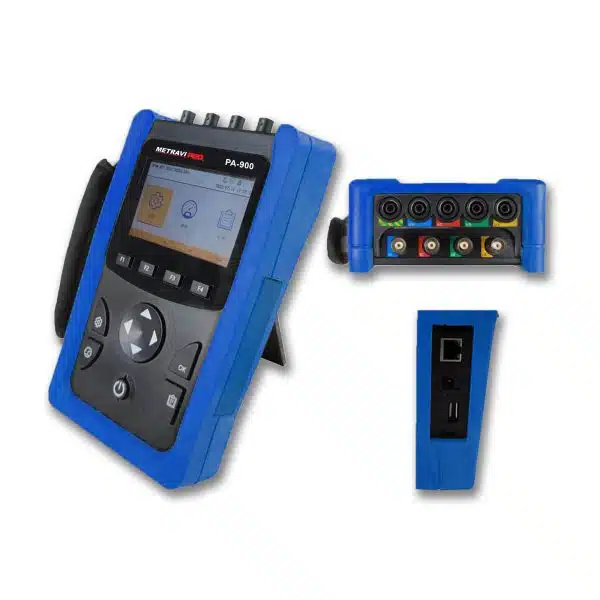

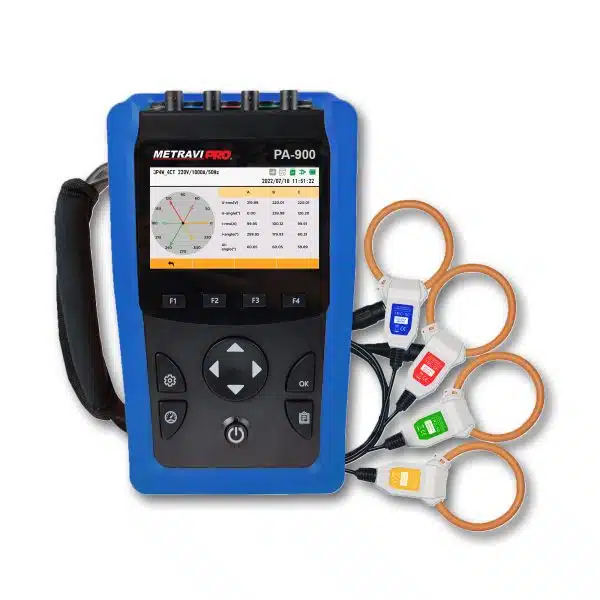

Metravi PRO PA-900 3-Phase Power Quality & Harmonics Analyser
Click To Zoom
Metravi PRO PA-900 3-Phase Power Quality & Harmonics Analyser
Metravi PRO PA-900 3-Phase Power Quality & Harmonics Analyser

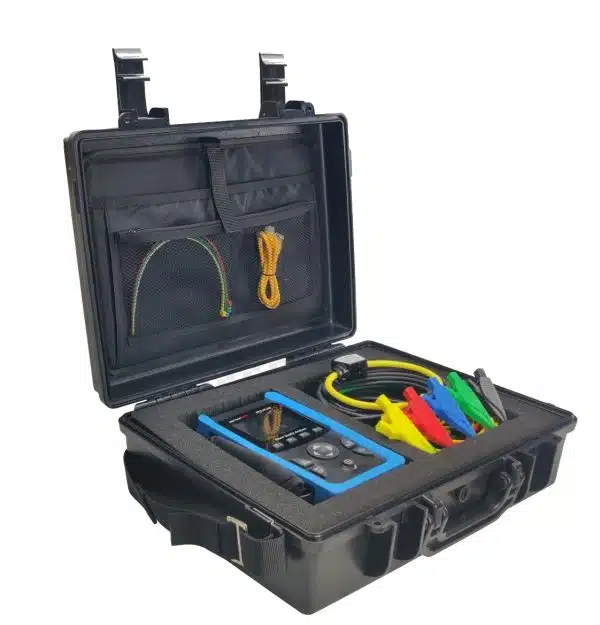

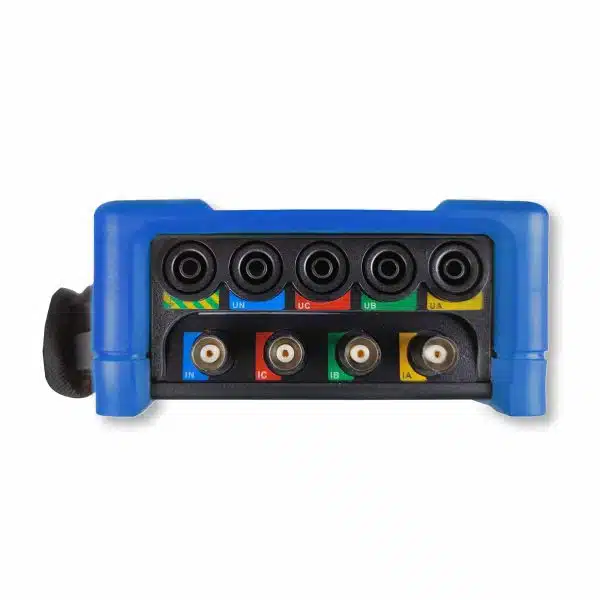

Compatible with flexible Rogowski coils CT and clamp On CTs. Measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. Measure/Calculate Current, Voltage, Frequency, Active Power, Reactive Power, Apparent Power, Power Factor, Voltage angle, Current angle, Current Unbalance, Voltage Unbalance, measures PE-N Voltage, Neutral Current, Sag-Swell measurement, Waveform Display . Data Logging, 3.97 inch Colour TFT Display, 51st Harmonic, Rechargeable Battery, External Rogowski Coil and BNC inputs. IEC/EN 61010-1, CAT III 600V, IP30. RJ45 Ethernet Internface. Comes in an IP65 rated Pelican Hard Carrying Case.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 1,40,999.00
(GST inclusive price) i₹1,89,844.00
( - 26% OFF )
Description

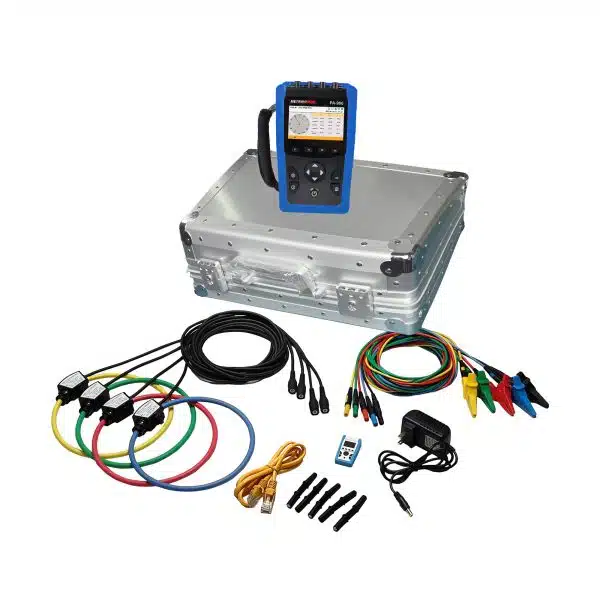

What's in the box?
|
Rating & Reviews
Rating
| GENERAL SPECIFICATIONS | |
| Display | 3.97 inches 480*800px IPS Display |
| Sampling Rate | User-settable |
| Operating Environment | Temperature -20°C to 55°C, Humidity below 90%RH |
| Storage Environment | Temperature -40°C to 70°C, Humidity below 95%RH (non-condensing) |
| Power | Rechargeable 4000mAH 2xLithium battery Or Mains 5VDC, 2A Adaptor |
| Battery Charging Time | ≥5h |
| Battery Working Time | ≥6h |
| Allowable Altitude | ≤ 2kms |
| Protection & Certifications | CAT III 600V |
| IP Protection | IP30 |
| Interface | RJ45- Ethernet |
| Protocol | Modbus-TCP |
| Data Storage | 32GB TF card |
| Data Export | U disk export (U disk file is AT32 system) |
| Dimensions & Weight | LxWxD : 215x130x60 mm, 850g (with accessories 2kgs) |
| TECHNICAL SPECIFATIONS | |
| REAL TIME MEASUREMENTS | |
| Voltage | Phase voltage: Phase ABC N phase to ground voltage Line voltage: UAB, UBC, UCA Voltage peak coefficient: Phase ABC Voltage peak: Phase ABC |
| Current | Phase current: Phase ABCN Current peak coefficient: Phase ABC K Factor: Phase ABC |
| Frequency | Line frequency |
| Power | Active power: Phase ABC and total Reactive power: Phase ABC and total Apparent power: Phase ABC and total |
| Power Factor | Phase ABC and total |
| Fundamental Harmonic Power Factor | Phase ABC and total |
| Electrical Energy | Active Energy: Phase ABC and total (import / export) Reactive Energy: Phase ABC and total (import / export) Apparent Energy: Phase ABC and total CO2 emissions |
| HARMONIC MEASUREMENT DATA | |
| Voltage Harmonics | THD (Total harmonic percentage), TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase ABC 1-50th harmonic percentage, phase ABC 1-50th harmonic voltage value |
| Current Waveform | Phase ABC current waveform |
| PHASE ANGLE | |
| Voltage Phase Angle | Phase ABC |
| Current Phase Angle | Phase ABC |
| Phase Angle between Voltage and Current | Phase ABC |
| UNBALANCE | |
| Unbalance | Voltage unbalance, current unbalance |
| DEMAND | |
| Power Demand & PEAK Demand | Phase ABC active power and total power, phase ABC reactive power and total power, phase ABC apparent power and total power |
| Current Demand & PEAK Demand | Phase ABC |
| Wiring System | 3P4W 4CT 3P4W 3CT 3P3W 3CT 3P3W 2CT 1P3W 1P2W |

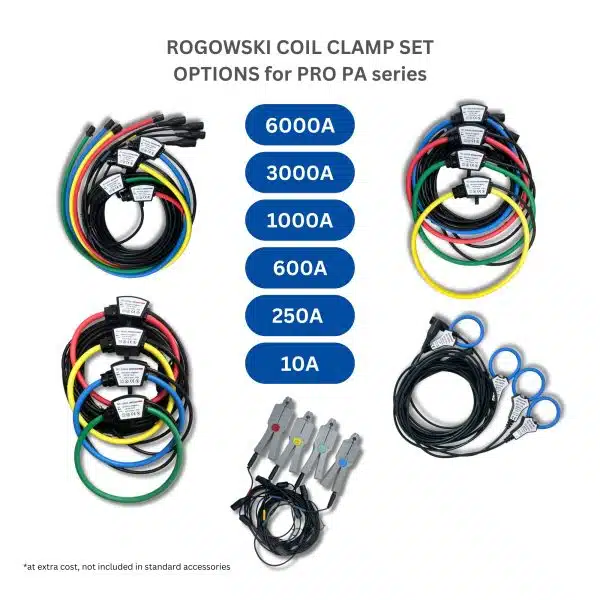

| Current Sensor | Rogowski Coil Voltage-output Current Clamps |
| Voltage Access | Direct access Connected through voltage transformer |
| Voltage | Channel Input Voltage Range: 0-600VAC |
| Measurement Range: 0-600VAC | |
| Measurement Range: 0-600VAC | |
| Current | Channel Input Voltage Range: 0-420mVAC |
| Measurement Range: Different current sensors have different mea ring ranges | |
| Measurement Accuracy: 0.2%+ Accuracy of current sensor | |
| Frequency | Measurement Range: 45Hz-65Hz |
| Measurement Accuracy: ±0.001Hz | |
| Power Factor | Measurement Range: -1-+1 |
| Measurement Accuracy: 0.5% | |
| Power | Active Power Accuracy: 0.5% |
| Reactive Power Accuracy: 1% | |
| Apparent Power Accuracy: 0.5% | |
| Energy | Active Energy Accuracy: 0.5% |
| Reactive Energy Accuracy: 1% | |
| Apparent Power Accuracy: 0.5% | |
