Kusam Meco-KM-CAL-811-TEMPERATURE CALIBRATOR

Kusam Meco-KM-CAL-811-TEMPERATURE CALIBRATOR
Kusam Meco-KM-CAL-811-TEMPERATURE CALIBRATOR

Click To Zoom

Kusam Meco-KM-CAL-811-TEMPERATURE CALIBRATOR

Kusam Meco-KM-CAL-811-TEMPERATURE CALIBRATOR

(Based On 10 Reviews)

The KUSAM-MECO KM-CAL-811  is a handheld temperature/process calibrator used in industrial applications to source and measure DC voltage, resistance (Ohm), thermocouples (TC), and thermal resistance (RTD) signals. It features high accuracy and a built-in temperature sensor for cold-end compensation.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

₹ 26,900.00

(GST inclusive price) i
  • Base Value: ₹ 22796.6
  • GST: (18) % ₹ 4103.4
  • Total Value ₹ 26900

₹34,850.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Basic functions DC voltage DCV, resistance OHM, thermocouple TC, thermal resistance RTD  The maximum output accuracy is 0.05% and the output display is 5 digits.
  • H/L settings are available for OHM excitation current.
  • The output temperature value and the corresponding temperature signal are displayed on the same screen.
  • It has a built-in high-precision temperature sensor for high-precision cold-end compensation.
  • Auto power-off, backlight, flashlight, etc.
  • LCD display with a white backlight.
  • It has a LED flashlight for lighting.
  • User-optional large-suction magnetic sling is provided.
  • Uncertainty includes standard uncertainty, hysteresis, nonlinearity, repeatability, and typical long-term stability over the period mentioned (K = 2).
  • Maximum applied voltage at input end: about 30Vpk; Maximum applied current at input end: about 25mA
  • Load characteristics: capacitive load ≥ 0.01uF (DCV / OHM / TC / RTD / FREQ); Inductive load ≥ 0.01uF 100uH (DCA) Output load affects DC mV (0.001% full scale + 1nV)/mA; DCV (0.001% full scale + 1nV) / mA
  • The temperature range of internal temperature compensated sensor RJC is -10 to 50°C. The temperature measurement accuracy at 18 to 28°C is ± 0.5°C, and the temperature measurement accuracy at other temperature is ± 1°C. Cold end compensation time is 10S / times.
  • Temperature coefficient: 0.1 × basic accuracy / °C (temperature range < 18°C or > 28°C)

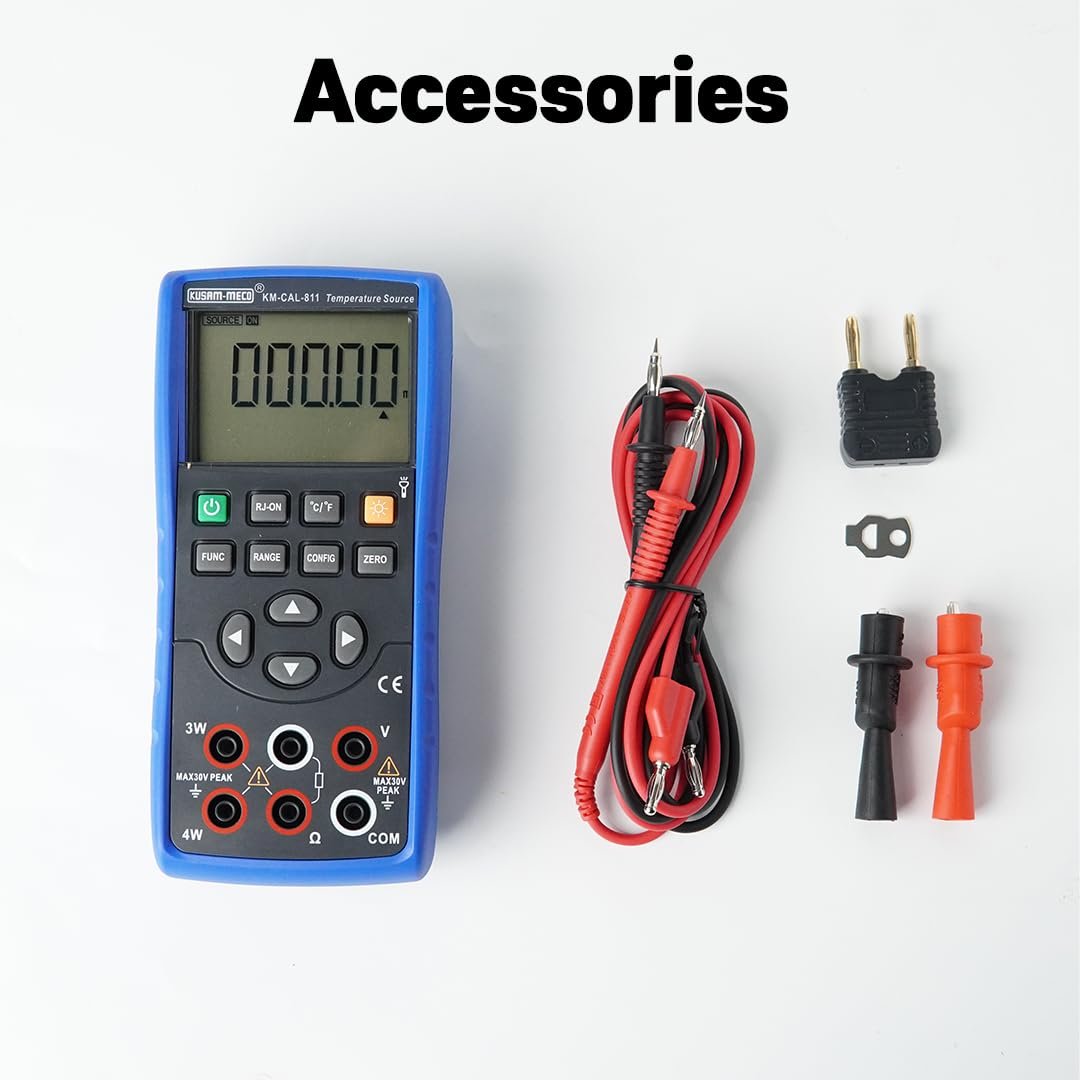

What's in the box ?

  • 1 pair, AA alkaline battery
  • 3 pcs Thermocouple adapter,
  •  User Manual

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specification

General

Accuracy0.02%
Display5 Digit
Weight500 g
Model NoKM-CAL-811
Product Dimensions180x90x47 mm
Power Consumption60 m to 6 V
Insulation ImpedanceDC 1000V / 100MΩ
Withstand VoltageAC 3540V(50 / 60Hz)

Electrical Specification
