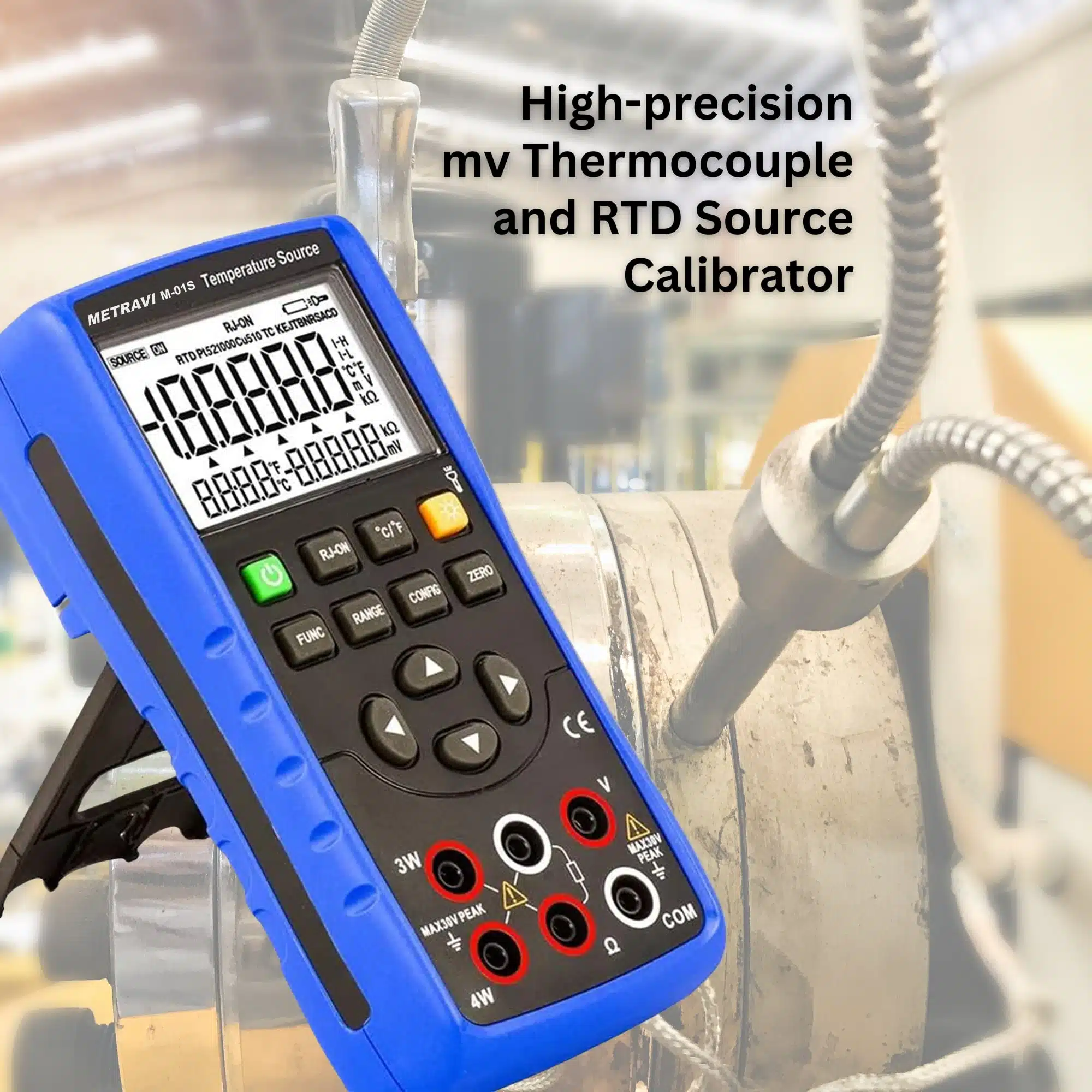

Metravi M-01S mV Thermocouple and RTD Source Calibrator
Click To Zoom
Metravi M-01S mV Thermocouple and RTD Source Calibrator
Metravi M-01S mV Thermocouple and RTD Source Calibrator
5 Digits LCD Display, 0.05% accuracy, provides output only for DC Voltage, Resistance, Thermocouples – R, S, K, E, J, T, N, B, A, C, D and Thermal Resistance RTD – PT-100, PT-200, PT-500, PT-1000, Cu-50.
The output temperature value and the corresponding temperature signal are displayed on the same screen. With Auto power-off, backlight, flashlight.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 29,099.00
(GST inclusive price) i₹39,150.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
• Operating temperature and humidity : 0 to 50ºC; ≤80%RH without condensation; 40 to 50ºC ≤70%RH
• Storage temperature and humidity : -25 to 60ºC; ≤90%RH without condensation
• Electrical safety : EN61010-1:2001, CE
• Withstand voltage : AC3540V (50/60Hz) / 5 seconds between terminal and housing
• Insulation impedance : DC1000V/100MΩ or more between terminal and housing
• Electromagnetic compatibility (EMC) : EN61326-1:2006
• Performance : criterion 2 is met, i.e. the function and performance are temporarily reduced or lost, but can be recovered by themselves.
• Protection : IP40, 1m drop-tested
• Vibration and fall : IEC 60068-2-64:2008, IEC 60068-2-32:2008
• Quality standard : developed, designed and manufactured in accordance with TUV ISO-9001
• Calibration period : To ensure the accuracy of the Table, the calibration period is 1 year
• Preheating time : Startup preheating time is more than 30 minutes.
• Display : 5 digits, segment code LCD with white backlight
• Power Supply : 3 x AA alkaline batteries

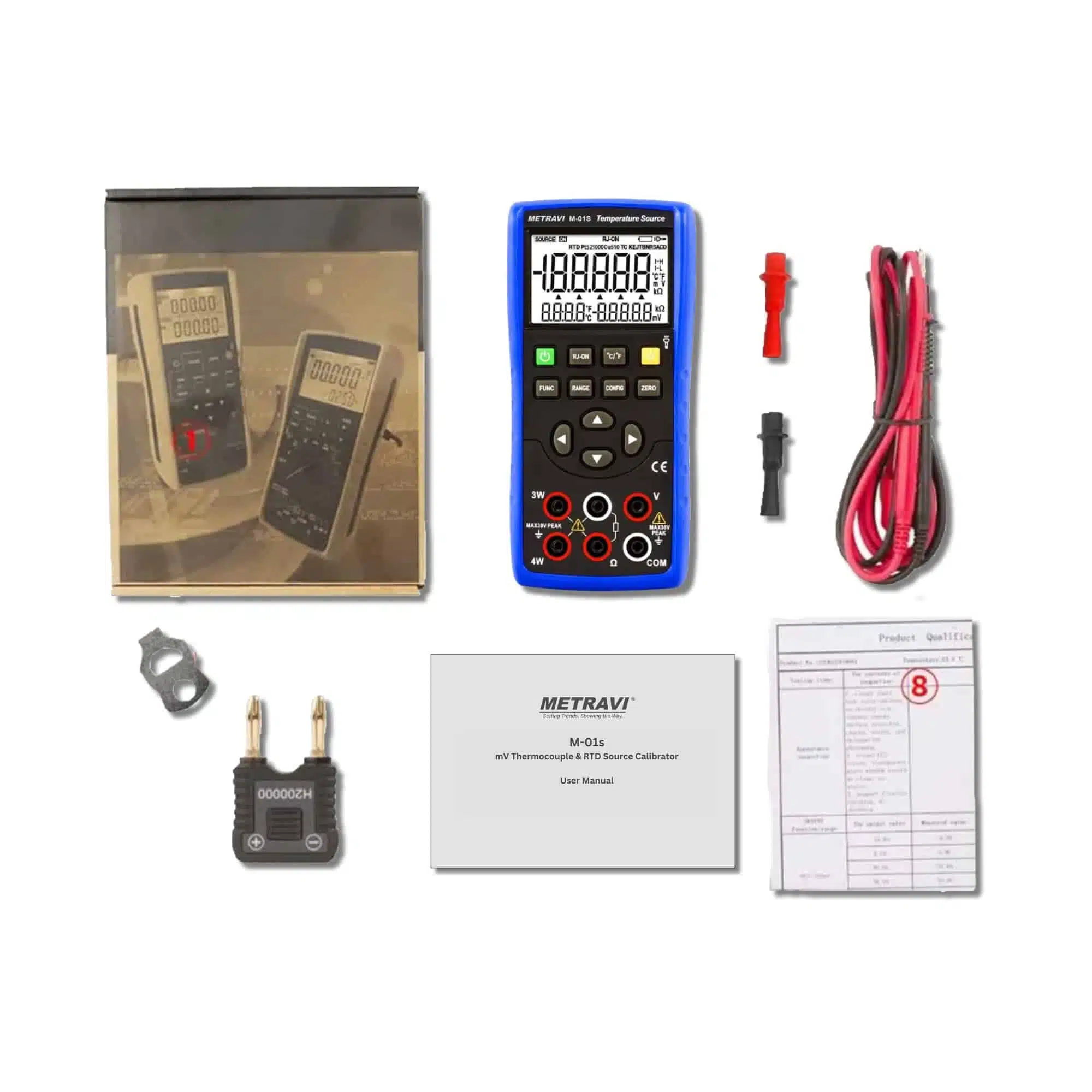

• Accessories : 1 pair Industrial test leads, User Manual, 3 units AA alkaline battery, Thermocouple Adapter
• Dimension and weight : 9.84 x 3.94 x 7.87 inches, 60
| Output function | Range | Output range | Resolution | Accuracy | Remarks | |
| DC Voltage DCV | 100mV | -10.000mV~110.00mV | 0.01mV | 0.05%+0.03mV | Maximum output current: 1mA | |
| 1V | -0.1000V~1.1000V | 0.0001V | 0.05%+0.3mV | Maximum output current: 5mA | ||
| Resistance Oh | 400Ω | 0~400.0Ω | 0.1Ω | 0.05%+0.2Ω | The excitation current is ±0.1~±5mA. Maximum output voltage 2V. When the excitation current is ±0.1~0.5mA, additional error of 0.1Ω is added. The accuracy does not include lead resistance | |
| Thermocouple TC | 4KΩ | 0~4.000KΩ | 1Ω | 0.05%+2Ω | ||
| R | 0°C～1767°C | 1°C | 0～100C 10～1767°C 0～100°C 100～1767°C | 1.5°C 1.2°C 1.5°C 1.2°C | Use ITS-90 temperature scale. The accuracy does not include the error of cold junction compensation. The accuracy does not include sensor inaccuracy. The accuracy does not include the influence of thermoelectric potential. R: Platinum Rhodium 13- Platinum S: Platinum Rhodium 10- Platinum K: Nickel chromium - nickel silicon E: Nickel chromium - copper nickel (constantan) J: Iron - copper nickel (constantan) T: Copper - nickel (constantan) N: Nickel chromium silicon nickel silicon B: Platinum Rhodium 30 - Platinum A: Tungsten rhenium 5- Tungsten rhenium 20 C: Tungsten rhenium 5- Tungsten rhenium 26 D: Tungsten rhenium 3- Tungsten rhenium 25 | |
| S | 0°C～1767°C | |||||
| K | -200.0°C～1372.0°C | 0.1°C | -200.0～-100.0°C -100.0～400.0°C 400.0～1200.0°C 1200.0～1372.0°C | 0.6°C 0.5°C 0.7°C 0.9°C | ||
| E | -200.0°C～1000.0°C | -200.0～-100.0°C -100.0～600.0°C 600.0～1000.0°C | 0.6°C 0.5°C 0.4°C | |||
| J | -200.0°C～1200.0°C | -200.0～-100.0°C -100.0～800.0°C 800.0～1200.0°C | 0.6°C 0.5°C 0.7°C | |||
| T | -250.0°C～400.0°C | -250.0～400.0℃ | 0.6°C | |||
| N | -200.0°C～1300.0°C | -200.0～-100.0°C -100.0～900.0°C 900.0～1300.0°C | 1.0°C 0.7°C 0.8°C | |||
| B | 600°C～1820°C | 1°C | 600～800°C 800～1820°C | 1.5°C 1.1°C | ||
| A | 0°C～2500°C | 1°C | 0～1600°C 1600～2000°C 2000～2500°C | 2.0°C 2.2°C 2.4°C | ||
| C | 0°C～2310°C | 1°C | 0～1600°C 1600～2000°C 2000～2310° | 2.0°C 2.2°C 2.4°C | ||
| D | 0°C～2310°C | 1°C | 0～100°C 100～270°C 270～1200°C 270～2310°C | 2.6°C 2.4°C 2.2°C 2.4°C | ||
| Thermal Resistance RTD | Pt100 385 | -200.0°C～800.0°C | 0.1°C | 200.0～0.0°C 0.0～400.0°C 400.0～800.0°C | 0.3°C 0.5°C 0.8°C | Use Pt (385) temperature scale. The excitation current is ±0.1~±5mA. Maximum output voltage 2V. When the excitation current is ±0.1~0.5mA, additional error of 0.1Ω is added. The accuracy does not include lead resistance. The accuracy does not include the influence of thermoelectric potential. Support pulse transmitters and PLCs with pulse times as short as 10ms |
| Pt200 385 | -200.0°C～630.0°C | -200.0～100.0°C 100.0～300.0°C 300.0～630.0°C | 0.8°C 0.9°C 1.0°C | |||
| Pt500 385 | -200.0°C～630.0°C | -200.0～100.0°C 100.0～300.0°C 300.0～630.0°C | 0.4°C 0.5°C 0.7°C | |||
| Pt1000 385 | -200.0°C～630.0°C | -200.0～100.0°C 100.0～300.0°C 300.0～630.0°C | 0.2°C 0.5°C 0.7°C | |||
| Cu50 | -50.0°C～150.0°C | 0.6°C | ||||
