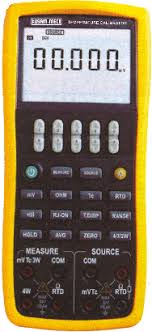

Kusam Meco KM CAL 906 Temperature Calibrator
Kusam Meco KM CAL 906 Temperature Calibrator
(Based On 10 Reviews)
This temperature Calibrator gives high accuracy of 0.02% for measure and source. It has dual display, 5 digits for measure and 6 digits for source & white LED for backlight. Volts, RTD & Thermocouple. It gives output up to 500 to 5k and output for calibrating R, S, K, E, J, T, N, B, L, U type of Thermocouples RTD & Continuity.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 75,999.00
(GST inclusive price) i₹98,400.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
• Accuracy : ± 0.02%
• Max. Allowable Voltage : 30V
• Operation Temperature Range : 0 ~ 50°C
• Operation Humidity Range : 80% RH
• Storage Temperature Range : -10°C ~ 55°C
• Storage Humidity Range: 90% RH
• Power supply :
• Size : 205 x 95 x 42 mm
• Weight : 500g (with holster)
• Safety : Conforms to IEC 1010
Measuring Function | Range | Measuring Range | Resolution | Accuracy | Remark |
DC Voltage | 50mV | 5.000mV ~ 55.000mV | 1 V | 0.02 + 0.02 | Input Resistance : approximately 100M |
500mV | -50.00mV ~ 550.00mV | 10 V | 0.02 + 0.01 | ||
Resistance (OHM) | 500 | 0.00 ~ 550.00 | 0.01 | 0.05 + 0.02 | Test current for 500 : Approximately 1mA; Test current for 5K : Approximately 0.1mA; Open circuit voltage: About 2.5V; Does not include lead resistance: |
5K | 0.0000K ~ 5.5000K | 0.1 | 0.05 + 0.02 | ||
Thermocouple | R | 0 C ~ 1767 C | 1 C | 0~500 C : 1.8 C | By using ITS-90 temperature scale: The accuracy does not include the error of internal temperature compensation caused by a sensor; |
S | 0 C ~ 1767 C | 500~1767 C : 1.5 C | |||
K | -100.0 C ~ 1372.0 C | 0.1 C | -100.0~0.0 C : 1.2 C | ||
0.0~1372.0 C : 0.8 C | |||||
E | -50.0 C ~ 850.0 C | -50.0 C~0.0 C : 0.9 C | |||
0.0 C~85.0 C : 1.5 C | |||||
J | -60.0 C ~ 1120.0 C | -60.0~0.0 C : 1.0 C | |||
0.0~1120.0 C : 0.7 C | |||||
T | -100.0 C ~ 400.0 C | -100.0 ~ 0.0 C : 1.0 C | |||
0.0~400.0 C : 0.7 C | |||||
N | -200.0 C ~ 1300.0 C | -200.0~0.0 C : 1.5 C | |||
0.0~1300.0 C : 0.9 C | |||||
B | 600 C ~ 1820 C | 1 C | 600~800 C : 2.2 C | ||
800 ~1000 C : 1.8 C | |||||
1000 ~1820 C :1.4 C | |||||
L | -60.0 C ~ 900.0 C | 0.1 C | -60.0 ~ 0.0 C : 0.7 C | ||
0.0 ~ 900.0 C : 0.5 C | |||||
U | 60.0 C ~ 900.0 C | 0.1 C | -100.0 ~ 0.0 C :0.7 C | ||
0.0 ~ 600.0 C : 0.5 C | |||||
Thermo Resistance (RTD) Continuity | PT100 385 | 200.0 C ~ 800.0 C | 0.1 C | -200.0 ~ 0.0 C :0.5 C | By using temperature scale ITS-90. Does not include lead resistance. Assuming all three RTD leads are matched for 3-w input. |
0.0 ~ 400.0 C : 0.7 C | |||||
400.0~800.0 C:0.8 C | |||||
PT 1000 385 | 200.0 C ~ 630.0 C | 200.0~100.0 C:0.3 C | |||
100.0~300.0 C:0.5 C | |||||
300.0~630.0 C:0.7 C | |||||
PT 200 385 | 200.0 C ~ 630.0 C | -200.0~100.0 C:0.8 C | |||
100.0~300.0 C:0.9 C | |||||
300.0~630.0 C:1.0 C | |||||
PT 500 385 | 200.0 C ~ 630.0 C | -200.0~100.0 C:0.4 C | |||
100.0~300.0 C:0.5 C | |||||
300.0~630.0 C:0.7 C | |||||
Cu10 | -100.0 C ~ 260.0 C | 1.8 C | |||
Cu50 | -50.0 C ~ 150.0 C | 0.7 C | |||
500 | ≤ 50 | 0.01 | Approximately 1mA test Current |
