Metravi 14+ Universal Source Thermocouple Calibrator

Metravi 14+ Universal Source Thermocouple Calibrator
Metravi 14+ Universal Source Thermocouple Calibrator
Metravi 14+ Universal Source Thermocouple Calibrator
Metravi 14+ Universal Source Thermocouple Calibrator
Metravi 14+ Universal Source Thermocouple Calibrator
Metravi 14+ Universal Source Thermocouple Calibrator

Click To Zoom

Metravi 14+ Universal Source Thermocouple Calibrator

Metravi 14+ Universal Source Thermocouple Calibrator

(Based On 10 Reviews)

6 Digits, 0.2% Accuracy, Sources R, S, B, E, K, J, T, N types of thermocouples, PT-100, Cu-50, DC Voltage, DC Current, Resistance, Analogue Transducer, Frequency, Pulse Output and LOOP Power.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 77,699.00

(GST inclusive price) i
  • Base Value: ₹ 65846.6
  • GST: (18) % ₹ 11852.4
  • Total Value ₹ 77699

₹1,04,490.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • High Accuracy of 0.02% for measure and source. 6 digits for generated value and 5digits for measured value

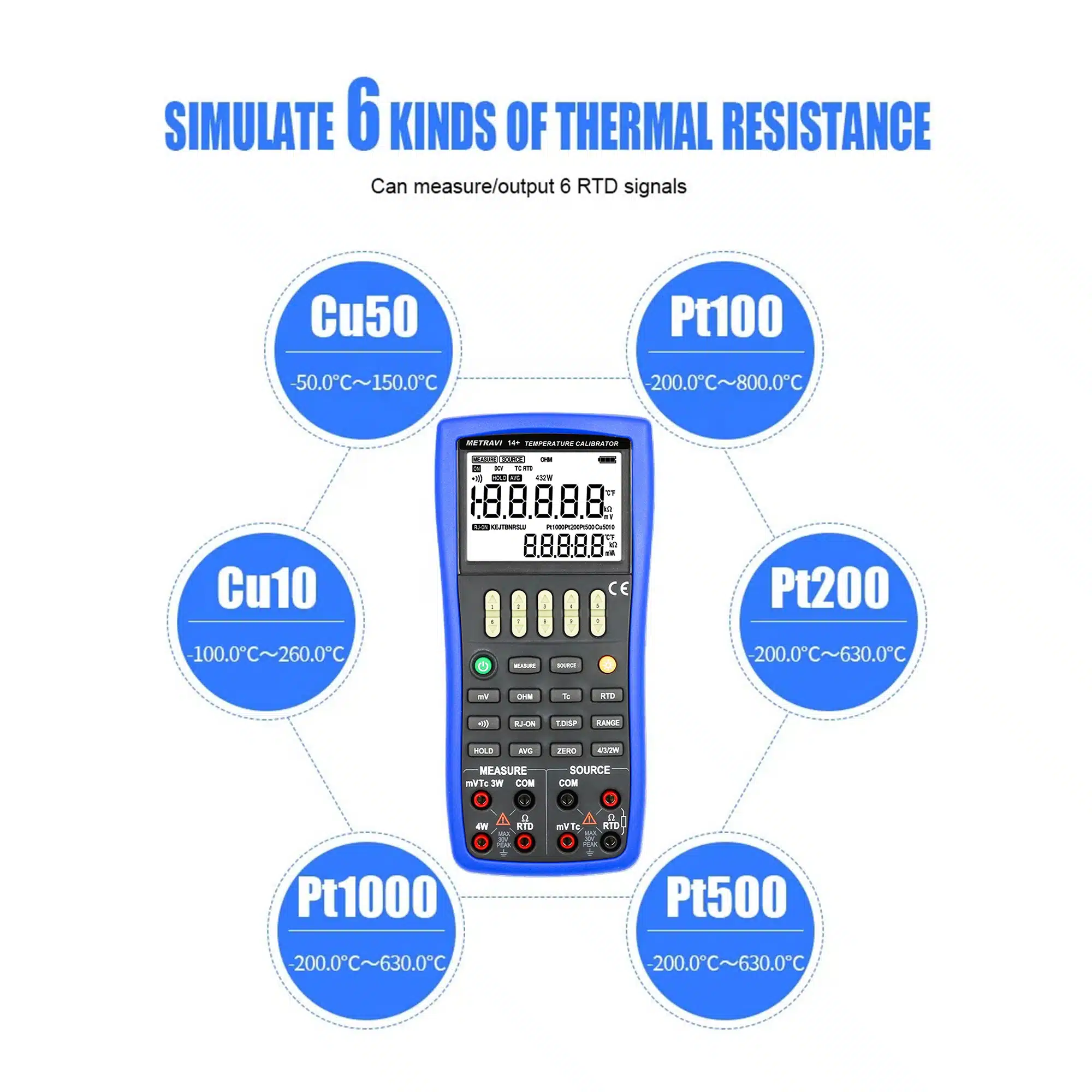

  • Measure: DC voltage, resistance, thermocouple temperature detector, resistance temperature detector
  • Source:  DC voltage, resistance, thermocouple temperature detector, resistance temperature detector
  • Measured Resistance and resistance temperature with 2-wire, 3-wire or 4-wire
  • Reference junction compensation automatically for thermocouple temperature measure and source. Temperature unit °C, °F
  • Can use temperature detector with high accuracy of ±0.2°C
  • The temperature and equivalent voltage or resistance or operating temperature can be displayed simultaneously on the large LCD

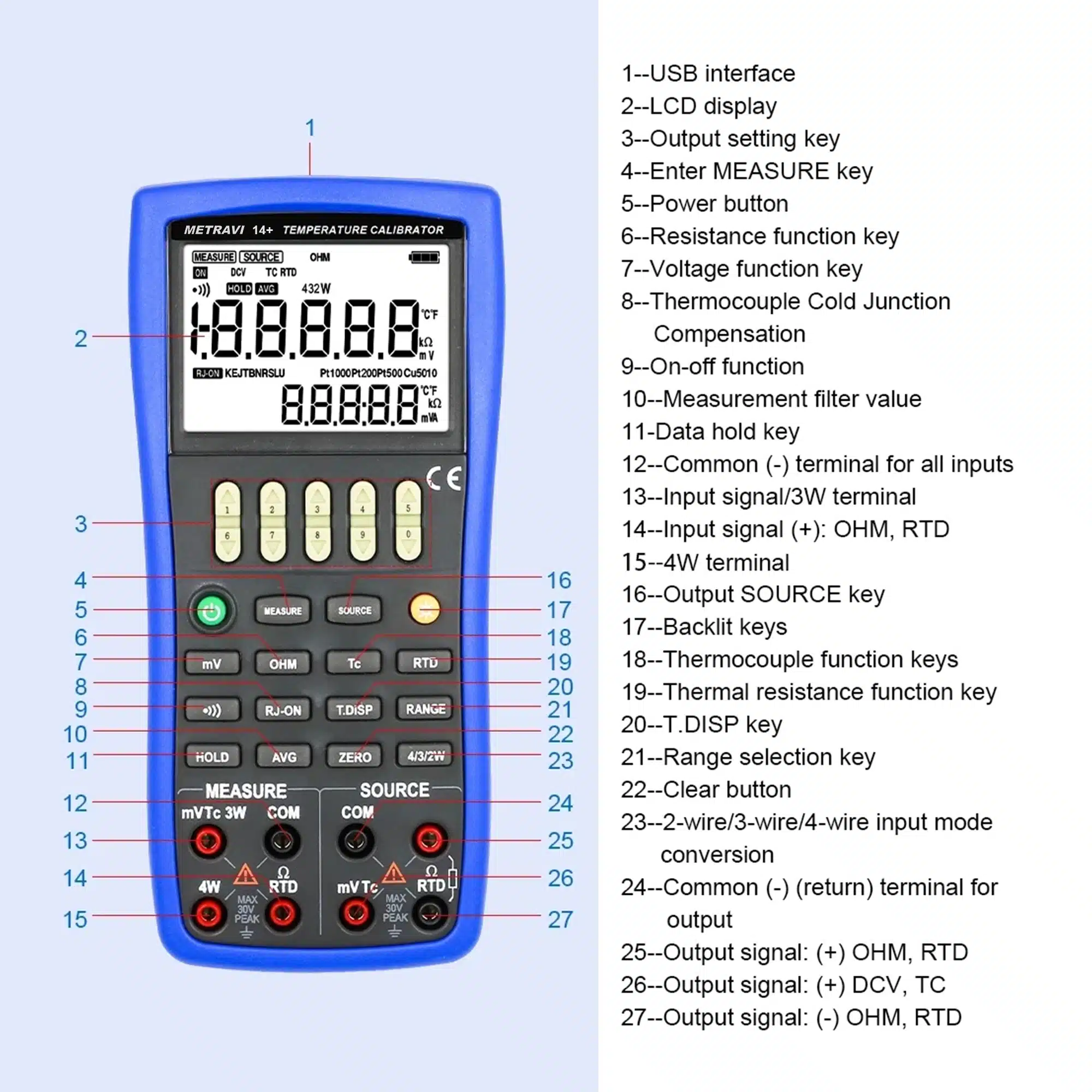

  • The keys for the generation functions and the measurement functions are separate from each other, and carefully designed the key layout, the each pairs of UP/DOWN keys are corresponding the each digit of the LCD
  • It can be calibrated without open the cover of the calibrator
  • The backlight and the power supply can be shut off automatically



What's in the box?

  • Metravi 14+ Universal Source Thermocouple Calibrator
  • A couple of test leads for measure.
  • A couple of test leads for source fuse.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

Function Reference Range Reolution Accuracy Remark
TC  600 °C ~ 1820 °C1 °C600 ~ 800 °C 2.2 °C
800 ~ 1000°C: 1.8°C
1000~ 1820 °C / 1 °C
 -60°C ~ 900 °C0.1 °C

-60 ~ 0 °C : 0.7 °C

0 ~ 1300 °C : 0.5 °C

 100 °C ~ 600 °C0.1 °C

100 ~ 0 °C : 0.7°C

0 ~ 600 °C : 0.5 °C

RTDPT100-385 -200.0°C sim 800 °C0.1 °C

200 °C - 0 °C : 0.5 °C

0 °C - 400 °C : 0.7 °C
400°C-800°C: 0.8°C

By using Pt100-385 Does not include lead resistance


PT200-385

 		-200.0°~630°C0.1 °C-200-100°C: 0.22°C
PT500-385
 		-200.0°~630°C
 		-100~300°C: 0.3 °C
PT1000-385
 		-200°C ~ 630 °C
 		300~630°C: 3.4 °C
Cu10-100°C ~ 260 °C-100°C~260°C: 2°C
Cu50-50°C ~ 150°C

-50 - 0  : 0.5 °C

0  - 150 : 0.7 °C

CONTINUITY 500Ω Approximately 1mA Test Current ≤ 500 sound 0.01Ω 0.02% + 0.2

TECHNICAL

Function Reference Range Reolution Accuracy Remark
DCV 50mV -5.000~55.000mV1 mu V0.02+0.02
 		Input Resistance: 100ΜΩ
500mV -50.00~550.00mV 10 mu V 0.02+0.01
OHM Test Current Approximately 1mA 0.00Ω ~ 550.00Ω0.01Ω0.05+0.02Open Circuit Voltage:
About 2.5V; Accuracy, 2-Wire, 3-Wire, 4-wire:
Does not include lead resistance
Test Current. Approximately 0.1 mA 0.0000 ΚΩ~5.000ΚΩ0.1Ω0.05+0.02
TCR

0°C~1767°C





1°C

0~500°C: 1.8°C

500-1767°C: 1.5°C

By using ITS-90 temperature scale; The accuracy does not include the error or intemal temperature compensation caused by a sensor, The range of the internal temperature compensation sensor is from 0 deg * C to 40 deg * C
S0°C-1767°C
K-100.0°-1372.0°C0.1°C

-100-0.0°C: 1.2°C

0~1372.0°C: 0.8°C

E-50.0°C~850.0°C

-50~0.0°C: 0.9°C

0~850.0°C: 1.5°C

 J-60.0°C~1120.0°C

-60-0°C: 1.0°C

0~1120°C: 0.7°C

T-100.0°C~400.0°C

-100~0°C: 1.0°C

0~400°C: 0.7°C

N-200.0°~1300.0°C

-200~0°C: 1.5°C

0-1300°C: 0.9°C .

Accuracy is expressed as ± (percentage of reading + percentage of range)

Function Reference Range Reolution Accuracy Remark
DC Voltage
 		100mV -10.000mV-110.000mV 1μν 0.02+0.01 Maximum output current: 0.5 mA
1000mV -100.00mV-1100.00mV 10μν 0.02+0.01 Maximum output current: 2 mA
Resistance 400Ω  0.002-400.000 0.01Ω 0.02+0.025 Excitation current: ± 0.5-3 mA; f plus/minus 0.1 - 0.5 add 0.12; Does not include lead resistance
4ΚΩ 0.0000ΚΩ ~4.0000ΚΩ 0.1Ω 0.05+0.025 Excitation current: plus/minus 0.5 - 0.33mA Does not include lead resistance
TC R0°C~1767°C
 		1°C


0~100°C; 1.5°C

100~1767°C; 1.2°C

By using ITS-90 temperature scale; The accuracy does not include the error or internal temperature compensation caused by a sensor
 S
 		0°C-1767°C

0-100°C: 1.5°C

100-1767°C; 1.2°C

 K -200.0°C-1372.0°C 0.1°C

-200~100°C: 0.6°C

-100~400°C: 0.5°C

400-1200°C: 0.7°C

1200-1372°C: 0.9°C

 E -200.0°C-1000.0°C


-200~100°C: 0.6°C

-100-600°C: 0.5°C 600~1000°C: 0.4°C

 J -200.0°C-1200.0°C

-200-100°C: 0.6°C -100~800°C: 0.5°C

800-1200°C: 0.7°C

 T -250.0°C~400.0°C -2500~400°C: 0.6°C
 N -200.0°C-1300.0°C

-200~100°C: 1.0°C

-100-900°C: 0.7°C 900~1300°C: 0.8°C

 B600°C-1820°C
 		1°C
 		 600-800°C: 1.5°C 800~1820°C: 1.1°C
 L-200.0°C~900.0°C

-200-0°C: 0.7°C

0-900°C: 0.5°C

 U-200.0°C~600.0°C

-200-0°C: 0.7°C

0~600°C: 0.5°C

RTDPt100 385-200.0°C~800.0°C
 		0.1°C

-200-0°C: 0.3°C

0.0~400°C: 0.5°C

400-850°C: 0.8°C

By using Pt100-385
Excitation current: ± 0.1mA fo
PT100, Cu10, Cu50;
Excitation current: ± 0.1mA for
PT200, PT500, PT1000;
Does not include lead resistance
Pt200 385-200.0°C~630.0°C


-200-100°C: 0.8°C

100-300°C: 0.9°C

300-630°C: 1.0°C

Pt500 385-200.0°C-630.0°C


-200~100°C: 0.4°C

1000-300°C: 0.5°C

300-630°C: 0.7°C

Pt1000 385 -200.0°C~630.0°C


-200-100°C: 0.2°C

100-300°C: 0.5°C

300-630°C: 0.7°C

Cu10
 		-100.0°C~250.0°C
 		-10~250°C: 1.8°C
Cu50
 		-50.0°C~150.0°C
 		-50-150°C: 0.6°C
