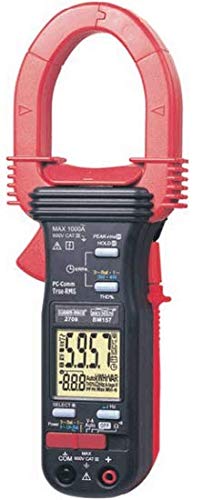

Kusam Meco 2709 AC/DC POWER CLAMP - ON - METER

Kusam Meco 2709 AC/DC POWER CLAMP - ON - METER
Kusam Meco 2709 AC/DC POWER CLAMP - ON - METER

Kusam Meco 2709 AC/DC POWER CLAMP - ON - METER

Click To Zoom

Kusam Meco 2709 AC/DC POWER CLAMP - ON - METER

Kusam Meco 2709 AC/DC POWER CLAMP - ON - METER

(Based On 10 Reviews)

Kusam meco 2709 3 PHASE POWER CLAMP-ON METER (TRMS) WITH KWHR & TOTAL HARMONICS MEASUREMENT & PC INTERFACE .

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 19,935

(GST inclusive price) i
  • Base Value: ₹ 16894.1
  • GST: (18) % ₹ 3040.9
  • Total Value ₹ 19935

₹30,975.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Selectable Power parameters of KW, KVAr & KVA with Total Power Factor in dual-display
  • kWHr Recording
  • AutoVA (Auto Selection on ACV, DCV or ACA functions)
  • Total harmonic distortion THD% -F in dual-display
  • Backlight display
  • Display Hold
  • PEAK-rms HOLD
  • PC-Comm computer interface capabilities (optional)

OPTIONAL ACCESSORIES

  • PC interface kit ( including BA -1XX Cable
  • BUA-2303 USB to serial adapter
  • BC-100R USB port Cable & 2709 Software CD).



What's in the box?

  • Kusam Meco 2709 AC/DC POWER CLAMP - ON - METER
  • Test leads (pair)
  • Batteries installed
  • User’s Manual
  • Soft Carrying Case

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General

• Sensing : True RMS sensing
• Jaw opening & Conductor diameter : 45mm max
• Display:
  Voltage Function : 6000 counts LCD display
  Power, Ohm & Hz functions : 9999 counts LCD display
  ACA clamp-on function : 4000 counts LCD display
• Update Rate :
  Power function : 2 per second nominal
  Voltage, ACA clamp-on & Ohm functions : 2 per second nominal
  Hz function : 1 per second nominal
• Polarity : Automatic
• Low Battery : Below approx 2.4V
• Operating Temperature : 0 °C to 40 °C
• Relative Humidity : Maximum relative humidity 80% for temperature upto 31 °C decreasing linearly to 50% relative humidity at 40 °C
• Altitude : Operating below 2000m
• Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
• Temperature Coefficient : nominal 0.15x (specified accuracy) / C @ (0 °C - 18 °C or 28 °C - 40 °C), or otherwise specified
• Power supply : Standard 1.5V AAA Battery x 2.
• Power Consumption : Voltage, ACA, Hz & Power functions : 11mA typical
• Ohm function : 5.5 mA typical
• APO Timing : Idle for 30 minutes
• APO Consumption : 4 μA typical
• Dimension : 224 (L) x 78 (W) x 40 (H) mm
• Weight : approx. 224 gms



Technical

ACA CURRENT(Clamp-on)

Range

Resolution

Accuracy1)2)

50Hz / 60Hz

40.00 A

0.01 A



±(1.0%rdg + 5dgts)

400.0 A

0.1 A

1000 A

1      A

45Hz ~ 500Hz

40.00 A

0.01 A

±(2.0%rdg + 5dgts)

400.0 A

0.1 A

1000 A

1      A

±(2.5%rdg + 5dgts)

500Hz ~ 3.1kHz

40.00 A

0.01 A

±(2.5%rdg + 5dgts)

400.0 A

0.1 A

1000 A

1      A

±(3.0%rdg + 5dgts)

THD%-F

Range

Harmonic order

Accuracy1)





0.0% ~ 50.0%

Fundamental

1.5% + 6d

2nd ~ 3rd

7% + 6d

4th ~ 21st

2.5% + 6d 2)3)

22nd ~ 51st

10% + 10d 4)



50.0% ~ 100%

2nd ~ 3rd

Unspecified

4th ~ 21st

2.5% + 6d 5)6)

22nd ~ 51st

10% + 10d 4)



100% ~ 450%7)

2nd ~ 3rd

Unspecified

4th ~ 21st

7% + 6d  2)4)

22nd ~ 51st

Unspecified

OHM

Range

Resolution

Accuracy

999.9

W0.1W

±(1.0%rdg + 6dgts)

FREQUENCY

Range

Resolution

5Hz ~ 500Hz

0.01Hz ~ 0.1Hz



Range

Accuracy 1) 2) 3)

0 ~ 600.0kVA

F ~ 10th

11th ~ 45th

46th ~ 51st

@ PF = 0.99 ~ 0.1

2.0%+6d

3.5%+6d

5.5%+6d

Range 0~600.0kW/kVAR

Accuracy 1) 2) 4)

F~10th

11th~25th

26th~45th

46th~51st

@ PF = 0.98~0.70

2.0%+6d



3.5%+6d



4.5%+6d





10%+6d

@ PF = 0.70~0.50

3.0%+6d

@ PF = 0.50~0.30

4.5%+6d

@ PF = 0.30~0.20

10%+6d

15%+6d

AC VOLTAGE

Range

Resolution

Accuracy

50Hz / 60Hz

600.0V

0.1V

0.5% + 5d

45Hz ~ 500Hz

600.0V

0.1V

1.5% + 5d

500Hz ~ 3.1kHz

600.0V

0.1V

2.5% + 5d

DC VOLTAGE

Range

Resolution

Accuracy

600.0V

0.1V

±0.5% + 5d
