HTC-PA-172 Power Clamp Meter with Harmonics 1000V
Click To Zoom
HTC-PA-172 Power Clamp Meter with Harmonics 1000V
HTC-PA-172 Power Clamp Meter with Harmonics 1000V

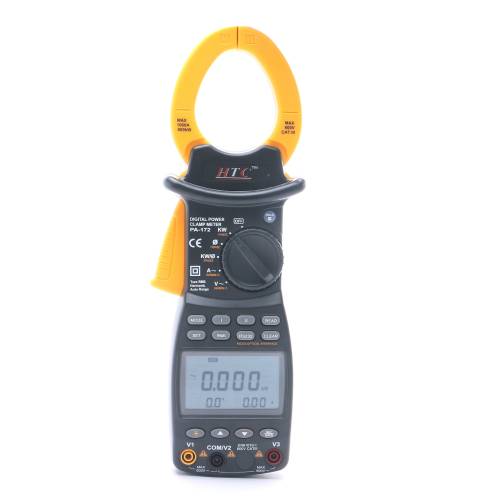

The HTC-PA-172 is a 1000A AC current clamp meter with harmonic measurement capabilities. It measures voltage, power, and power factor for single and three-phase systems.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 13,179
(GST inclusive price) i-
Base Value: ₹ 11168.6
-
GST: (18) % ₹ 2010.4
-
Total Value ₹ 13179
₹17,090.00
( - 23% OFF )
Description
Key Features
- 1Ø/3Ø Power Measurement
- RS-232 Interface
- Jaw Open : 50mm

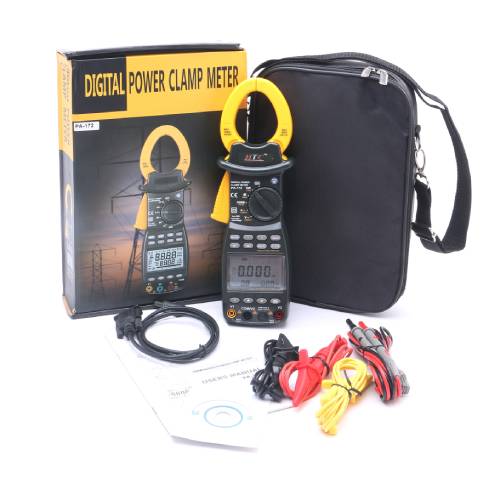

What's in the box?
|
Rating & Reviews
Rating
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 80V | 0.1V | ±1.0% of rdg + 5 digits |
| 180V | ||
| 400V | 1V | |
| 600V | ||
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 20A | 0.01A | ±2.0% of rdg + 5 digits |
| 40A | ||
| 100A | 0.1A | |
| 200A | ||
| 450A | 1A | |
| 1000A | ||
| SINGLE-PHASE ACTIVE POWER | ||
| Range | Resolution | Accuracy |
| 30kw | 0.01kW | ±3% of rdg + 5 digits |
| 60kw | ||
| 120kw | 0.1kW | |
| 150kw | ||
| 300kw | ||
| 600kw | ||
| THREE-PHASE ACTIVE POWER | ||
| Range | Resolution | Accuracy |
| 3kVA | 0.001kVA | ±3% of rdg + 5 digits |
| 12kVA | 0.01kVA | |
| 30kVA | ||
| 120kVA | 0.1kVA | |
| 150kVA | ||
| 600kVA | ||
| POWER FACTOR | ||
| Range | Resolution | Accuracy |
| 0.3 – 1 Capacitive | 0.001 | ±0.02% of rdg + 2 digits |
| 0.3 – 1 Inductive | ||
| PASSIVE POWER | ||
| Range | Resolution | Accuracy |
| 3kVA | 0.001kVAr | ±3% of rdg + 5 digits |
| 12kVA | 0.01kVAr | |
| 30kVA | ||
| 120kVA | 0.1kVAr | |
| 150kVA | ||
| 600kVA | ||
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 30Hz – 1kHz | 0.1Hz | ±0.5% of rdg + 1 digits |
| POWER | AA 1.5V X 4 | |
| Dimension | ||
| 300(H) x 103(W) x 51(D)mm | ||
