Metravi 307N Digital Clamp On Power Meter

Metravi 307N Digital Clamp On Power Meter
Metravi 307N Digital Clamp On Power Meter
Metravi 307N Digital Clamp On Power Meter
Metravi 307N Digital Clamp On Power Meter

Click To Zoom

Metravi 307N Digital Clamp On Power Meter

Metravi 307N Digital Clamp On Power Meter

(Based On 10 Reviews)

This Meter complies with the standards IEC61010: in pollution degree 2, overvoltage category (CAT. III 600V, CAT IV 300V) and double insulation.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 10,180.00

(GST inclusive price) i
  • Base Value: ₹ 8627.1
  • GST: (18) % ₹ 1552.9
  • Total Value ₹ 10180

₹13,703.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Measures Power and Energy for single phase and three phase loads
  • Auto-ranging
  • Data Logging up to 99 Data
  • Sleep Mode
  • Clamp Jaw Dia: 56mm
  • Confirms to CAT III 600V, IEC 61010, CAT IV 300V
  • Non Contact Voltage Detector
  • Data Hold, Max / Min record
  • USB PC Interface
  • Display; 4 digits Triple Backlit LCD Display with analogue bargraph
  • AC Voltage: 0 – 100 / 400 / 750V T-RMS
  • Accuracy: ±1.2%
  • AC Current: 0 – 40 / 100 / 400 / 1000A T-RMS
  • Accuracy: ±2.0%
  • Active Power: 0.01kW – 750kW
  • Accuracy; ±3.0%
  • Apparent Power: 0.01kVA – 750kVA
  • Accuracy: ±3.0%
  • Reactive Power: 0.01kVAR – 750kVAR
  • Accuracy: ±3.0%
  • Power Factor: 0.3 – 1 (Capacitive / Inductive)
  • Accuracy: ±4.0%
  • Phase Angle: 0°- 90°
  • Accuracy: ±2°
  • Frequency: 50Hz – 200Hz
  • Active Energy: 0.001 – 9999kWh
  • Accuracy: ±3.0%
  • Temperature: -50° – 1300°C

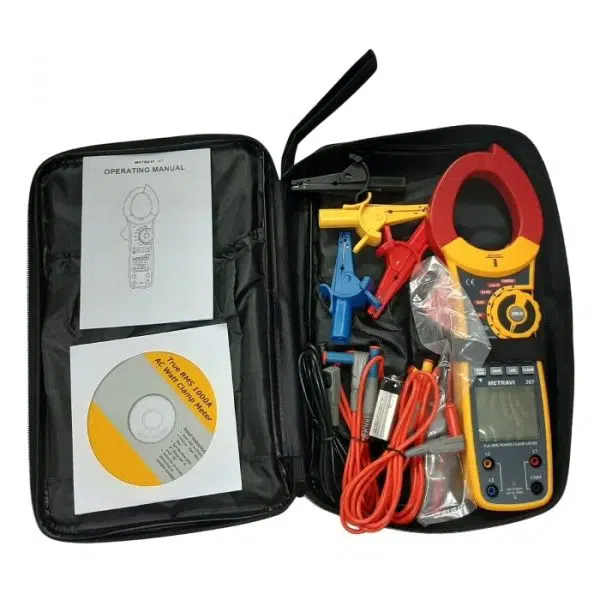

What's in the box?

  • Digital Clamp On Power Meter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
Basic FunctionsRangeBest Accuracy
AC Voltage0-100V /400V /750V±(1.2%+5digits)
AC Current0-40A/100A/400A/1000A±(2%+5 digits)
Active Power0.01 kW-750kW±(3%+5 digits)
Apparent Power0.01 kVA-750kVA±(3%+5 digits)
Reactive Power0.01 kVAr-750kVAr ±(4%+5 digits)
Power Factor0.3-1 (Capacitive or Inductive )±(0.02+2 digits)
Phase Angle0°-90°±2°
Frequency50Hz-200Hz✓
Active Energy0.001-9999 kWh±(3%+2 digits)
Temperature-50°C-1300°C-58°F-2372°F
Auto Ranging ✓
Single-phase 2-wire ✓
Balance 3-phase 3-wire ✓
3-phase 4-wire ✓
True RMSAC Voltage (and) Current✓
Data Logging99✓
Data Recall  ✓
Max/Min Mode ✓
Data Hold ✓
USB PC Interface  ✓
Display Backlight ✓
Full Icon Display ✓
Sleep Mode ✓
Low Battery Display ✓
Input Impedance for AC Voltage Measurement Around 10MΩ✓
Max. Display 9999 Analogue Bar G9999✓
Analogue Bar Graph ✓



AC Voltage (True RMS)
RangeResolutionAccuracyAllowable
Maximum overload
protection voltage		Input ImpedanceFrequency Range
100V0.1V±(1.2%+5)750 RMS10MO50Hz~200Hz
400V
750V



Frequency
RangeResolutionAccuracy
50Hz~200Hz1Hz±(0.5%+5)



AC Current (True RMS)
RangeResolutionAccuracyAllowable
Maximum overload
protection current		Frequency Range
40A0.1A±(2%+5)1000ARMS50Hz~60Hz
100A
400A
1000A1A



Active Power ( W=V x Ax COS0)
Current/ VoltageVoltages Range
100V400V750V
Current
Range		40A4.00KW16.00KW30.00KW
100A10.00KW40.00KW75.00KW
400A40.00KW160.0KW300.0KW
1000A100.0KW400.0KW750.0KW
Accuracy±(3%+5)
Resolution<1000KW: 0.01KW
>1000KW: 0.1KW



Apparent Power (VA= V x A)
Current/ VoltageVoltages Range
100V400V750V
Current Range40A4.00KVA16.00KVA30.00KVA
100A10.00KVA40.00KVA75.00KV
400A40.00KVA 160.0KVA300.0KVA
1000A100.0KVA400.0KVA750.0KVA
Accuracy±(3%+5)
Resolution

<1000KVA: 0.01KVA

>1000KVA: 0.1KVA



Reactive Power (Var = V x Ax SINO)
Current/ VoltageVoltages Range
100V400V750V
Current Range40A4.00KVAr16.00KVAr30.00KVAr
100A10.00KVAr40.00KVA75.00KVAr
400A40.00KVAr 1160.0KVAr300.0KVAr
1000A100.0KVAr400.0KVAr750.0KVAr
Accuracy±(3%+5)
Resolution


<1 000KVAr: 0.01 KVAr

>1000KVAr: 0.1KVAr



Power Factor (PF = W / VA)
RangeAccuracyResolutionMeasuring Condition

0.3~1

( capacitive

or inductive)



±0.0220.001The minimum measuring current 1 0A
The minimum measuring voltage 45V

0.3~1

( capacitive

or inductive)

For reference onlyMeasuring current less than 10A OR
Measuring voltage Range less than 45V



Phase Angle (PG=acos (PF))
RangeAccuracyResolutionMeasuring Condition

0° ~90°

(capacitive or inductive)

±2°1°


The minimum measuring current 10A

The minimum measuring voltage 45V

( capacitive or inductive)For  reference only

Measuring current less than 10A OR

Measuring voltage less than 45V



Active Energy (kWh)
RangeAccuracyResolution
1~9999kWh±(3%+2)0.001kWh
