Kusam Meco M3510A Bench Type Digital Multimeter

Kusam Meco M3510A Bench Type Digital Multimeter
Kusam Meco M3510A Bench Type Digital Multimeter

Kusam Meco M3510A Bench Type Digital Multimeter

Click To Zoom

Kusam Meco M3510A Bench Type Digital Multimeter

Kusam Meco M3510A Bench Type Digital Multimeter

(Based On 10 Reviews)

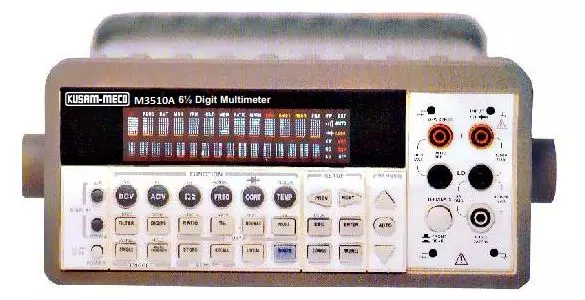

Kusam Meco KM 3510A is a high-performance 6½-digit bench-top digital multimeter engineered for precision measurements in labs and industry. It delivers accurate readings of voltage, current, resistance, and frequency, features a clear backlit display, data logging, and robust measurement reliability.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

₹ 1,07,000

(GST inclusive price) i
  • Base Value: ₹ 90678
  • GST: (18) % ₹ 16322
  • Total Value ₹ 107000

₹1,75,550.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Delivers 50 triggered RDGS/sec via remote interface
  • Period & Diode measurement
  • Thermocouple Temperature & RTD measurements.
  • Full math functions - dB, dBm, MX+B, ratio, %, Max/Min, null & limits.
  • Optional multipoint scanner card - For internal scanning, options include M3500 - Opt01, a 10-channel, general- purpose card.
  • Through Microsoft Office Word & Excel for remotely storing and recalling the measured values.
  • Calibration Certificate Available.
  • Continuity measurement for resistance.
  • Rack-mounted capability.
  • Dual displays & Dual measurements.
  • Capacitance Measurements
  • Wide range current measurement
  • RTD Measurement
  • Self Test & Manual Calibration
  • Dual displays & Dual measurements.
  • Capacitance Measurements
  • Wide range current measurement



What's in the box?

  • Kusam Meco M3510A Bench Type Digital Multimeter
  • One power line cord
  • One USB cable
  • Standard Test Leads
  • One Software CD
  • User’s manual.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

• Sensing :True RMS Sensing
• High Accuracy : DC Voltage :<0.012% of reading. AC Voltage : ± 0.12% of reading.

• Resolution : 6½ digit 2,00,000 Counts
• Display : LCD Display
• High Speed : Both sampling rate and data rate are at 2000 readings/sec (at 4½ digit setting).
• High Capacity of Internal Data Memory : It can store up to 2000 readings in data memory
• Full-Featured Operations : There are 11 measurements and 8 math Functions.
• Temperature Measurements : The built-in function supports two measurement methods : Thermocouples and RTDs. For thermocouples, it supports up to 7 types of sensors E, J, K, N, R, S and T..
• Vibration : MIL-PRF-28800F, 3.84.2. Vibration, Sinusoidal Class 1.2
• Shock : Mil-prf-28800f, 4.5.5.4 Mechanical.± (%of reading + %of range,23 °C  Â± 5 °C) at 6 ½ digits with 2-hour warm-up.
• Bandwidth : 3Hz. Specifications are for sine wave input >5% of range. For <50KHz & inputs within 1% to 5% of range, the error 0.3% of range must be added. For inputs within 50KHz to 100KHz, the 0.35% of range must be added.
• Power Line Frequency : 50/60Hz ± 10%
• Power Consumption : 25VA Max. (5W Average)
• Operating Temperature : 0°C ~ 50°C; 80% R.H. Upto 31°C.
• Storage Temperature : -40°C ~ 70°C
• Operating Altitude : upto 2000M
• Power Supply : 100V/120V/220V/240V±10%
• Dimension :214.6(W) x 88.6(H) x 280.7(D) mm
• Weight : approx.2.650kg.



TECHNICAL

DC CHARACTERISTICS
FunctionRangeInput Resistance1 Year Accuracy : ± (% of reading + % of range ) o o (23 C ± 1 C)
DCV (DC Voltage)100.0000 mV0.1 µV0.0050 + 0.0035
1.000000 V 1.0 µV0.0040 + 0.0007
10.00000 V10 µV0.0035 + 0.0005
100.0000 V100 µV0.0045 + 0.0006
1000.000 V1 mV0.0045 + 0.0010
DCI10.00000 mA10 nA0.050+0.020
100.0000 mA 100 nA0.050+0.010
1.0000000 A1 µA0.150+0.020
3.00000 A10 µA0.200+0.030
10.00000 A10 µA0.250+0.050
W W100.0000100 µ0.020+0.005
1.000000 Km0.020+0.002
10.00000 K10 m0.020+0.002
100.0000 K100 M0.020+0.002
1.000000 M10.020+0.004
10.00000 M100.100+0.004
100.00000 M1001.500+0.005
DIODE1.00000 V10 µV0.020+0.020
CONTINUTY (for 2 W )10000.0010 m0.020+0.030
AC CHARACTERISTICS
FunctionRangeResolutionFrequency (Hz)1 Year Accuracy : ± (% of reading + % of range ) o o (23 C ± 1 C)
ACV (TRMS)100.0000 mV0.1 µV10K - 20K .12 + 0.05
20K - 50K0.25 + 0.05
50K - 100K0.65 + 0.08
100K -300K4.50 +0.50
1.000000 V to 750.000V1.0 µV to 1mV10K - 20K0.12 + 0.04
20K - 50K0.25 + 0.05
50K - 100K0.65 + 0.08
100K -300K4.50 +0.50
ACI (TRMS)1.000000 A
3.00000 A
10.00000 A		1 µA
10 µA
10 µA 		10K - 5K0.20 +0.04
10K - 5K0.30 +0.06
10K - 5K0.50 + 0.12
CAPACITANCE
FunctionRangeFrequency (Hz)1 Year Accuracy : ± (% of reading + % of range ) o o (23 C ± 1 C)
CAPACITANCE1 nF10 µA0.010 + 0.004
10 nF10 µA0.010 + 0.001
100 nF100 µA0.010 + 0.001
1 µF100 µA0.010 + 0.001
10 µF100 µA0.010 + 0.001
100 µF1 mA0.040 + 0.001
1000 µF1 mA0.800 + 0.010
10000 µF1 mA0.010 + 0.020
TEMPERATURE CHARACTERISTICS
FunctionRangeFrequency (Hz)1 Year Accuracy : ± (% of reading + % of range ) o o (23 C ± 1 C)
THERMOCOUPLEB600°C ~ 1820 °C1.5°C
C0°C ~ 2316 °C1.5°C
E-250°C ~ 1000°C1.5°C
J-210°C ~ 1200°C1.0°C
K-200°C ~ 1372° C1.0°C
N-200°C ~ 1300°C1.0°C
R0°C ~ 1767°C1.5°C
S0°C ~ 1767°C1.5°C
T-250°C ~ 400°C 1.5°C
