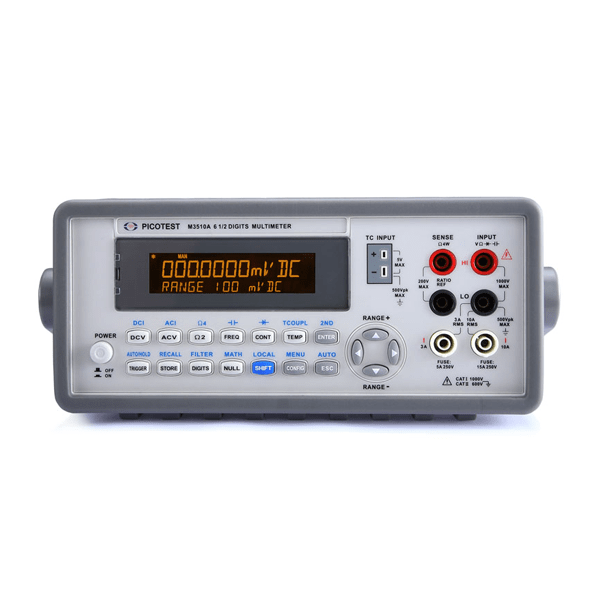

Kusam Meco M3511A 10 Functions 6 1/2 Digit Trms Digital Multimeter
Click To Zoom
Kusam Meco M3511A 10 Functions 6 1/2 Digit Trms Digital Multimeter
Kusam Meco M3511A 10 Functions 6 1/2 Digit Trms Digital Multimeter
Kusam Meco KM 3511A is a precision 6½‑digit bench-top digital multimeter designed for accurate measurements in laboratory and industrial settings. It offers high-resolution voltage, current, resistance, and frequency readings, a large backlit display, built-in memory, and reliable performance.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 86,600
(GST inclusive price) i-
Base Value: ₹ 73389.8
-
GST: (18) % ₹ 13210.2
-
Total Value ₹ 86600
₹1,42,500.00
( - 23% OFF )
Description
Key Features
- Delivers 50 triggered RDGS/sec via remote interface
- Period & Diode measurement
- Thermocouple Temperature & RTD measurements.
- Full math functions - dB, dBm, MX+B, ratio, %, Max/Min, null & limits.
- Optional multipoint scanner card - For internal scanning, options include M3500 - Opt01, a 10-channel, general- purpose card.
- Through Microsoft Office Word & Excel for remotely storing and recalling the measured values.
- Calibration Certificate Available.
- Continuity measurement for resistance.
- Rack-mounted capability.
- Dual displays & Dual measurements.
- Capacitance Measurements
- Wide range current measurement
- RTD Measurement
- Self Test & Manual Calibration
- Dual displays & Dual measurements.
- Capacitance Measurements
- Wide range current measurement
OPTIONAL ACCESSORIES
- Multi-point(10Channel) Scanner Card No. M3500-opt01
- Thermocouple adapter Adapters (Banana to BNC Adapter) No. M3500-opt03, GPIB Card No. M3500-opt04
- RTD Probe Adapter No. M3500-opt05, (6 Types) : M3500-opt02E, M3500-opt02J, M3500-opt02K, M3500-opt02N, M3500-opt02RS, M3500-opt02T. RS232 cord M3500 - opt06, Kelvin Probe M3500-opt07
- 4-Wire Test Leads M3500-opt08
- Shorting Plug M3500-opt10
- Calibration Certificate Traceable to NPL.
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Sensing :True RMS Sensing
• High Accuracy : DC Voltage :<0.012% of reading. AC Voltage : ± 0.12% of reading.
• Resolution : 6½ digit 2,00,000 Counts
• Display : LCD Display
• High Speed : Both sampling rate and data rate are at 2000 readings/sec (at 4½ digit setting).
• High Capacity of Internal Data Memory : It can store up to 2000 readings in data memory
• Full-Featured Operations : There are 11 measurements and 8 math Functions.
• Temperature Measurements : The built-in function supports two measurement methods : Thermocouples and RTDs. For thermocouples, it supports up to 7 types of sensors E, J, K, N, R, S and T..
• Vibration : MIL-PRF-28800F, 3.84.2. Vibration, Sinusoidal Class 1.2
• Shock : Mil-prf-28800f, 4.5.5.4 Mechanical.± (%of reading + %of range,23 °C ± 5 °C) at 6 ½ digits with 2-hour warm-up.
• Bandwidth : 3Hz. Specifications are for sine wave input >5% of range. For <50KHz & inputs within 1% to 5% of range, the error 0.3% of range must be added. For inputs within 50KHz to 100KHz, the 0.35% of range must be added.
• Power Line Frequency : 50/60Hz ± 10%
• Power Consumption : 25VA Max. (5W Average)
• Operating Temperature : 0°C ~ 50°C; 80% R.H. Upto 31°C.
• Storage Temperature : -40°C ~ 70°C
• Operating Altitude : upto 2000M
• Power Supply : 100V/120V/220V/240V±10%
• Dimension :214.6(W) x 88.6(H) x 280.7(D) mm
• Weight : approx.2.650kg.
TECHNICAL
| DC CHARACTERISTICS | |||
| Function | Range | Input Resistance | 1 Year Accuracy : ± (% of reading + % of range ) o o (23 C ± 1 C) |
| DCV (DC Voltage) | 100.0000 mV | 0.1 µV | 0.0050 + 0.0035 |
| 1.000000 V | 1.0 µV | 0.0040 + 0.0007 | |
| 10.00000 V | 10 µV | 0.0035 + 0.0005 | |
| 100.0000 V | 100 µV | 0.0045 + 0.0006 | |
| 1000.000 V | 1 mV | 0.0045 + 0.0010 | |
| DCI | 10.00000 mA | 10 nA | 0.050+0.020 |
| 100.0000 mA | 100 nA | 0.050+0.010 | |
| 1.0000000 A | 1 µA | 0.150+0.020 | |
| 3.00000 A | 10 µA | 0.200+0.030 | |
| 10.00000 A | 10 µA | 0.250+0.050 | |
| W W | 100.0000 | 100 µ | 0.020+0.005 |
| 1.000000 K | m | 0.020+0.002 | |
| 10.00000 K | 10 m | 0.020+0.002 | |
| 100.0000 K | 100 M | 0.020+0.002 | |
| 1.000000 M | 1 | 0.020+0.004 | |
| 10.00000 M | 10 | 0.100+0.004 | |
| 100.00000 M | 100 | 1.500+0.005 | |
| DIODE | 1.00000 V | 10 µV | 0.020+0.020 |
| CONTINUTY (for 2 W ) | 10000.00 | 10 m | 0.020+0.030 |
| AC CHARACTERISTICS | ||||
| Function | Range | Resolution | Frequency (Hz) | 1 Year Accuracy : ± (% of reading + % of range ) o o (23 C ± 1 C) |
| ACV (TRMS) | 100.0000 mV | 0.1 µV | 10K - 20K | .12 + 0.05 |
| 20K - 50K | 0.25 + 0.05 | |||
| 50K - 100K | 0.65 + 0.08 | |||
| 100K -300K | 4.50 +0.50 | |||
| 1.000000 V to 750.000V | 1.0 µV to 1mV | 10K - 20K | 0.12 + 0.04 | |
| 20K - 50K | 0.25 + 0.05 | |||
| 50K - 100K | 0.65 + 0.08 | |||
| 100K -300K | 4.50 +0.50 | |||
| ACI (TRMS) | 1.000000 A 3.00000 A 10.00000 A | 1 µA 10 µA 10 µA | 10K - 5K | 0.20 +0.04 |
| 10K - 5K | 0.30 +0.06 | |||
| 10K - 5K | 0.50 + 0.12 | |||
| CAPACITANCE | |||
| Function | Range | Frequency (Hz) | 1 Year Accuracy : ± (% of reading + % of range ) o o (23 C ± 1 C) |
| CAPACITANCE | 1 nF | 10 µA | 0.010 + 0.004 |
| 10 nF | 10 µA | 0.010 + 0.001 | |
| 100 nF | 100 µA | 0.010 + 0.001 | |
| 1 µF | 100 µA | 0.010 + 0.001 | |
| 10 µF | 100 µA | 0.010 + 0.001 | |
| 100 µF | 1 mA | 0.040 + 0.001 | |
| 1000 µF | 1 mA | 0.800 + 0.010 | |
| 10000 µF | 1 mA | 0.010 + 0.020 | |
| TEMPERATURE CHARACTERISTICS | |||
| Function | Range | Frequency (Hz) | 1 Year Accuracy : ± (% of reading + % of range ) o o (23 C ± 1 C) |
| THERMOCOUPLE | B | 600°C ~ 1820 °C | 1.5°C |
| C | 0°C ~ 2316 °C | 1.5°C | |
| E | -250°C ~ 1000°C | 1.5°C | |
| J | -210°C ~ 1200°C | 1.0°C | |
| K | -200°C ~ 1372° C | 1.0°C | |
| N | -200°C ~ 1300°C | 1.0°C | |
| R | 0°C ~ 1767°C | 1.5°C | |
| S | 0°C ~ 1767°C | 1.5°C | |
| T | -250°C ~ 400°C | 1.5°C | |
