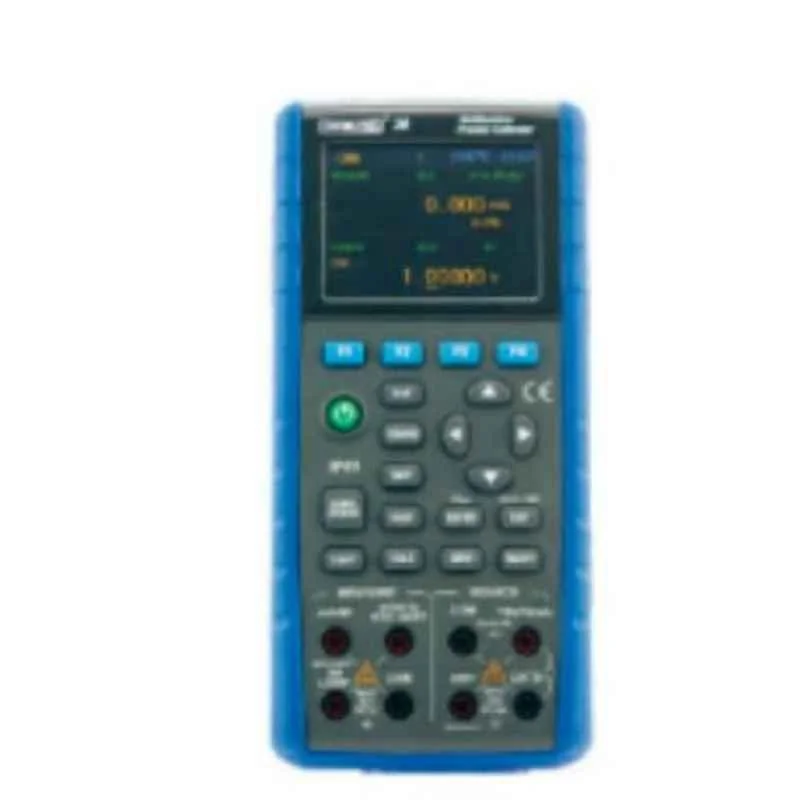

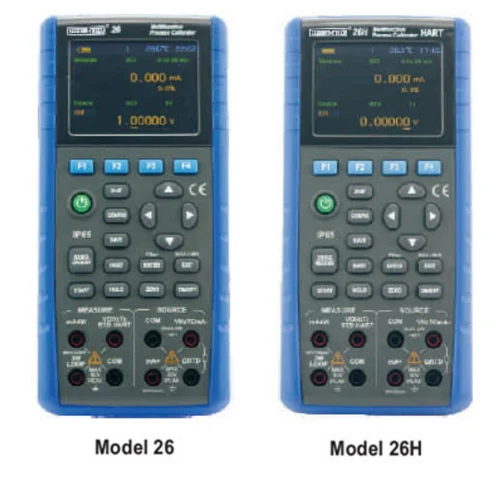

Kusam Meco KM 26 Digital Hart Multifunction Calibrator
Click To Zoom
Kusam Meco KM 26 Digital Hart Multifunction Calibrator
Kusam Meco KM 26 Digital Hart Multifunction Calibrator
Kusam Meco KM‑26 is a HART-compatible, multifunction calibrator featuring a 5‑digit TFT screen, ±0.01% accuracy, and built‑in 24 V loop power. It supports signal generation and measurement from −5 to 110 mV, ideal for precision calibration tasks
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 3,26,000
(GST inclusive price) i-
Base Value: ₹ 276271.2
-
GST: (18) % ₹ 49728.8
-
Total Value ₹ 326000
₹4,21,800.00
( - 23% OFF )
Description
Key Features
- ±0.01% high accuracy
- Dual isolated input/output channels
- Supports V, mA, RTD, TC, resistance, frequency
- HART communication with 24V loop power
- Large 3.2" TFT display
- Manual, step, and ramp outputs
- Stores 1,200 data sets
- USB/RS232 PC connectivity
- External pressure module support
- Battery-powered, rugged design
What's in the box?
|
Rating & Reviews
Rating
| Project | Performance | Accuracy |
| DC millivolt | Range | -5-110mV |
| Accuracy= (% of the set value+% of range) | 0.01%+0.01% | |
| Resolution | 1uV | |
| DC voltage | Range | 1-11V |
| Accuracy= +(% of the set value+% of range) | 0.01%+0.01% | |
| Resolution | 10uV/0.1mV | |
| DC current | Range | 0~33mA |
| Accuracy= +(% of the set value+% of range) | 0.01%+0.01% | |
| Resolution | 1uA | |
| Sink current | Range | 0~33mA |
| Accuracy= +(% of the set value+% of range) | 0.01%+0.01% | |
| Resolution | 1uA | |
| External power supply | 5-28V | |
| Resistance | Range | 0-4ΚΩ |
| Accuracy= +(% of the set value+% of range) | 0.01%+0.01% | |
| Resolution | 0.010/0.10 | |
| Thermocouple | Range | R/S/K/E/J/T/B/N/L/U |
| Accuracy | 0.4°C | |
| Resolution | 0.1°C/1°C | |
| RTD | Range | Pt100/Pt200/P1500/Pt1000/Cu10/Cu50 |
| Accuracy | 0.2 C | |
| Resolution | 0.1℃ | |
| Frequency (Hz) | Range | 1Hz-110KHz |
| Accuracy | ±2words | |
| Resolution | 0.01Hz/1Hz/0.1KHz/2KHz | |
| Frequency (CMP) | Range | 60-1200 CPM |
| Accuracy | ±2words | |
| Resolution | 1CPM | |
| Pulse | Frequency | 1Hz-10KHz |
| Range | 1 100000сус | |
| Accuracy | ±2words | |
| Resolution | 1 сус | |
| Switch | Range | 1Hz-110KHz |
| Accuracy | ±2words | |
| Resolution | 0.01Hz/1Hz/0.1KHz/2KHz | |
| Pressure | Range | Depends on the pressure module |
| Accuracy= +(% of the set value+% of range) | Depends on the pressure module | |
| Resolution | 5 digit display |
