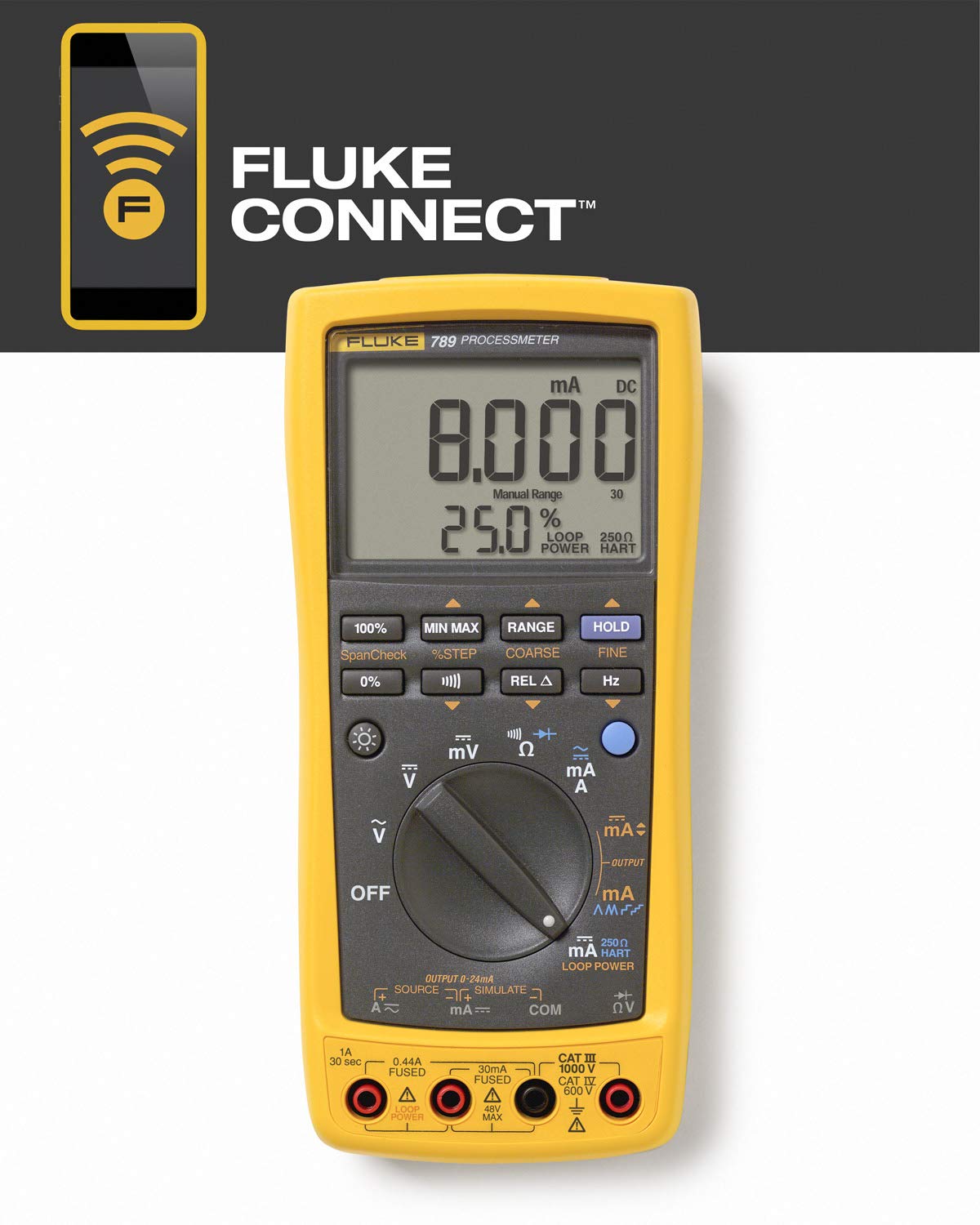

The Fluke 789 ProcessMeterâ„¢ double troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. Whether you only need to source and simulate mA, or need a 24 V loop power supply, Fluke has a ProcessMeterâ„¢ test tool designed specifically to meet your needs. Based on the trusted measurement capabilities of the fluke 789 add the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

3 YEARS WARRANTY
3 Years Warranty Against Any Manufacturing Defects.

3 YEARS WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 2,22,966

(GST inclusive price) i
  • Base Value: ₹ 188954.2
  • GST: (18) % ₹ 34011.8
  • Total Value ₹ 222966

₹3,00,105.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

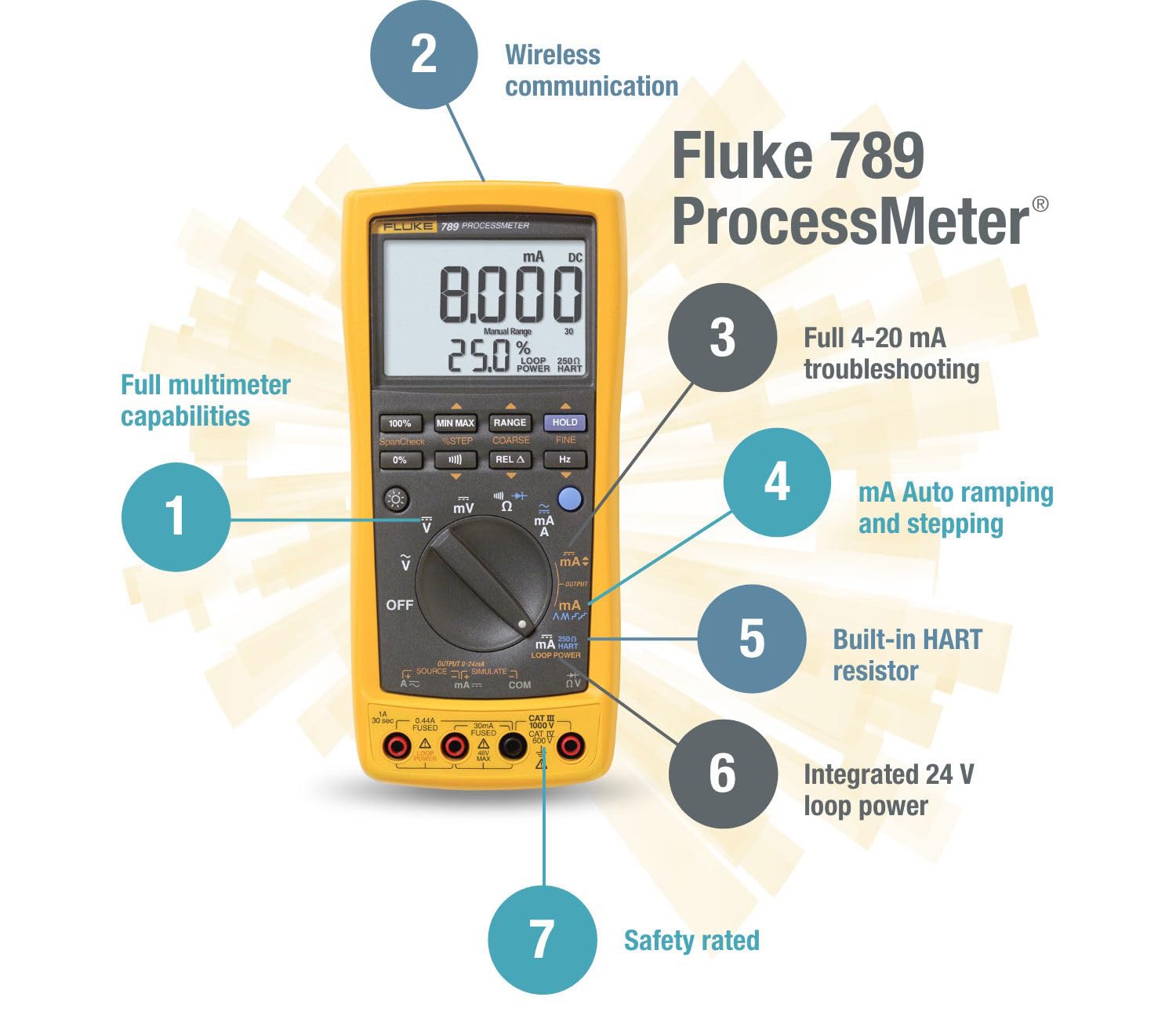

  • 20 mA dc current source/measure/simulate
  • Simultaneous mA and % of scale readout
  • DMM designed to meet 1000 volt IEC 61010 CAT III and 600 V CAT IV standards
  • Fluke Connect® compatibility for wireless data logging (with IR3000FC module)
  • Precision 1000 V, 440 mA true-rms digital multimeter
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode test and continuity beeper
  • Manual step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes
  • 24 V Loop power supply
  • HART mode setting with loop power (adds 250 ohm resistor)



What's in the box?

  • Fluke 789 ProcessMeter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

Maximum voltage applied between any jack and earth ground1000 V RMS
Storage temperature -40 °C to 60 °C
Operating temperature -20 °C to 55 °C
Temperature coefficient 00.05 x (specified accuracy) per °C (for temperatures < 18 °C or > 28 °C)
Relative humidity 95 % up to 30 °C; 75 % up to 40 °C; 45 % up to 50 °C; 35 % up to 55 °C
Vibration Random, 2 g, 5-500 Hz
Shock 1 meter drop test
Safety IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V
Size (HxWxL)50 mm x 100 mm x 203 mm (1.97 in x 3.94 in x 8.00 in)
Weight 600 g (1.3 lbs)
BatteryFour AA alkaline batteries
Battery life140 hours typical (measurement), 10 hours typical (sourcing 12 mA)
WarrantyThree years

TECHNICAL

Measurement function Range and resolution Best accuracy (% of reading + LSD)
V dc400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V0.1 % + 1
V ac (true-rms) 400.0 mV, 4.000 V, 40.00 V, 400.0 V,1000 V0.7 % + 2
mA dc30.000 mA.05 % + 2
A dc 1.000 A (0.440 A continuous)0.2 % + 2
A ac 1.000 A (0.440 A continuous)1 % + 2
Resistance 400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M0.2 % + 1
Frequency (0.5 Hz to 20 kHz) 199.99 Hz, 1999.9 Hz, 19.999 kHz.005 % + 1
Diode test 2.000 V (shows diode voltage drop)2 % + 1
Continuity Beeps for resistance < approx. 100 ohms
Output functionRange and resolutionDrive capabilityAccuracy (% of span)
DC current output (Internal battery operation)0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA24 V compliance or, 1,200 ohms, at 20 mA.05 %
DC current simulate (Ext. 15 V to 48 V loop supply)0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA1000 ohms, at 20 mA.05 %
24 V loop supply*Minimum 24 V250 ohms at 20 mA> 24 V
Current adjustment modesManual: Coarse, Fine, 25 % and 100 % step Automatic: Slow Ramp, Fast Ramp, 25 % step
