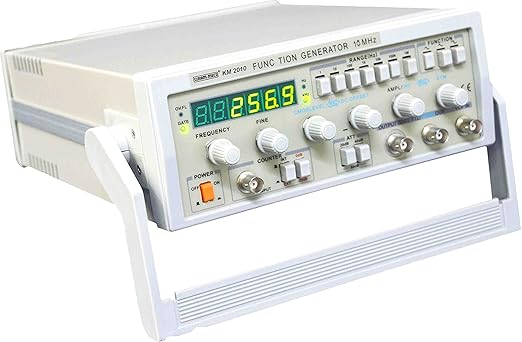

Kusam Meco KM 2010 Function Generator

Kusam Meco KM 2010 Function Generator
Kusam Meco KM 2010 Function Generator
Kusam Meco KM 2010 Function Generator

Click To Zoom

Kusam Meco KM 2010 Function Generator

Kusam Meco KM 2010 Function Generator

(Based On 10 Reviews)

The Kusam Meco KM 2010 is a versatile digital function generator offering a broad frequency range of 0.1Hz to 10MHz. It produces various waveforms like sine, triangle, square, ramp, and pulse, with low distortion. Featuring a built-in frequency counter and adjustable DC offset, it's an ideal tool for diverse electronic testing, research, and development applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 19,799.00

(GST inclusive price) i
  • Base Value: ₹ 16778.8
  • GST: (18) % ₹ 3020.2
  • Total Value ₹ 19799

₹25,700.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Frequency of the mode : 0. 1Hz ~ 10MHz
  • Output waveform : Sine, Triangle, Square, ramp ±Pulse
  • TL / CMOS and OUTPUT synchronous output.
  • Less than 1% distortion at 10Hz-- 100KHz
  • Less than 0. 5dB frequency response at 0. 1Hz-- 100KHz
  • 1Hz-- 30MHz frequency counter.



What's in the box?

  • Kusam Meco KM 2010 Function Generator

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

  • Frequency : 0.1Hz ~ 5MHz
  • Output waveforms : Sine, triangle, square, positive and negative pulse, positive and negative ramp
  • Output impedance : 50W ± 10%
  • Amplitude : Not less than 50Vpp (open circuit)
  • DC voltage : 0 ~ ±10V continuously adjustable
  • Symmetry range : 90:10-- 10:90
  • Rising edge of square : Less than 35ns
  • SINE CHARACTERISTIC :
  • Distortion : Less than 1% at 10H - 100KHz
  • Frequency response : 0.1 Hz ~ 100 MHz : £ ± 0.5dB
  • TTL/CMOS OUTPUT :
  • Level : Level: TTL low level less than 0.4V in pulse wave, high level less than 3.5V, CMOS low less tan 0 - 14V continuously variable.
  • Rising time : Less than 100ns
  • VCF INPUT :
  • Output voltage : -5V ~ 0V ±10
  • Max. volt controlled : 1000:1
  • Input signal : DC - 1KHz
  • FREQUENCY COUNTER :
  • Measuring range : 1Hz ~ 10MHz ³10Vp-p
  • Input impedance : Not less than 1MW / 20F
  • Sensitivity : 100mVrms
  • Max. Input : 150V (AC+DC)
  • Input attenuation : 20dB
  • Accuracy : Less than 0. 003% ±1digit
  • Line power : 220V/110V±10% 50Hz/60Hz
  • Dimension : 270 * 225 * 90mm.
  • Weight : About 2. 5Kg
