Metravi DDS-35 DDS Function Generator
Click To Zoom
Metravi DDS-35 DDS Function Generator
Metravi DDS-35 DDS Function Generator
The Metravi DDS-35 and DDS-70 Function Generators are compact yet high-performing, arbitrary waveform generators with built-in support for Lab View.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 21,715
(GST inclusive price) i-
Base Value: ₹ 18402.5
-
GST: (18) % ₹ 3312.5
-
Total Value ₹ 21715
₹31,050.00
( - 30% OFF )
Description
Key Features
- 35MHz/70MHz frequency output.
- Max 300MSa/s Sample rate.
- Vertical resolution 1μHz.
- 14 bits Vertical Resolution.
- 8K Arb waveform length.
- Comprehensive waveform output.
- 5 basic waveforms and 150 built-in arbitrary waveforms.
- Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst.
- SCPI, and LabVIEW supported.
- 3.6 inch (480 × 260 pixels) LCD.
- Ultra thin, lightweight and compact.
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Model | DDS-35 |
| Channel | 2 |
| Frequency Output | 35MHz |
| Sample Rate | 500MSa/s |
| Vertical Resolution | 14 bits |
| Waveform | |
| Standard Waveform | sine, square, pulse, ramp, noise |
| Arbitrary Waveform | exponential rise, exponential fall, sin(x)/x, step wave, and others total 150 built-in waveforms |
| Frequency | |
| Sine | 1μHz-35MHz |
| Square | 1μHz ~ 15MHz |
| Pulse | 2mHz ~ 15MHz |
| Ramp | 2mHz ~ 1MHz |
| Noise | 20MHz (-3dB，typical) |
| Arbitrary Waveform | 2mHz ~ 10MHz |
| Frequency resolution | 1μHz or 7 significant figures |
| Frequency stability | ±30 ppm at 0±40℃ |
| Frequency aging rate | ±30 ppm per year |
| Arbitrary | |
| Waveform Length | 2 points – 8K points |
| Sample Rate | 125Ma/s |
| Amplitude | |
| into 50Ω load | 1mVpp ~ 10Vpp（≤ 10MHz） 1mVpp ~ 5Vpp （≤70MHz） |
| DC Offset Range （AD+DC） | ±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω |
| DC offset resolution | 1mV or 4digits |
| Load Impedance | 50Ω (typical) |
| DC Offset Accuracy | ±(1 % of |setting| + 1 mV + amplitude Vpp * 0.5%) |
| Modulation | |
| Type | AM、FM、PM、FSK |
| Internal Modulation Frequency | 2 mHz to 100 kHz |
| Model | DDS-35 |
| Sweep characteristic | |
| Carrier | Sine, rectangular wave, ramp wave, arbitrary wave(Except DC) |
| Minimum/maximum starting frequency | 2mHz（minimum）/ maximum frequency of corresponding carrier |
| Minimum/maximum termination frequency | 2mHz（minimum）/ maximum frequency of corresponding carrier |
| Trigger source | Internal, external |
| Burst characteristic | |
| Waveform | Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC) |
| Types | N-Cycle |
| Trigger source | Internal, manual |
| Carrier frequency | 2 mHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2 |
| Input / Output | |

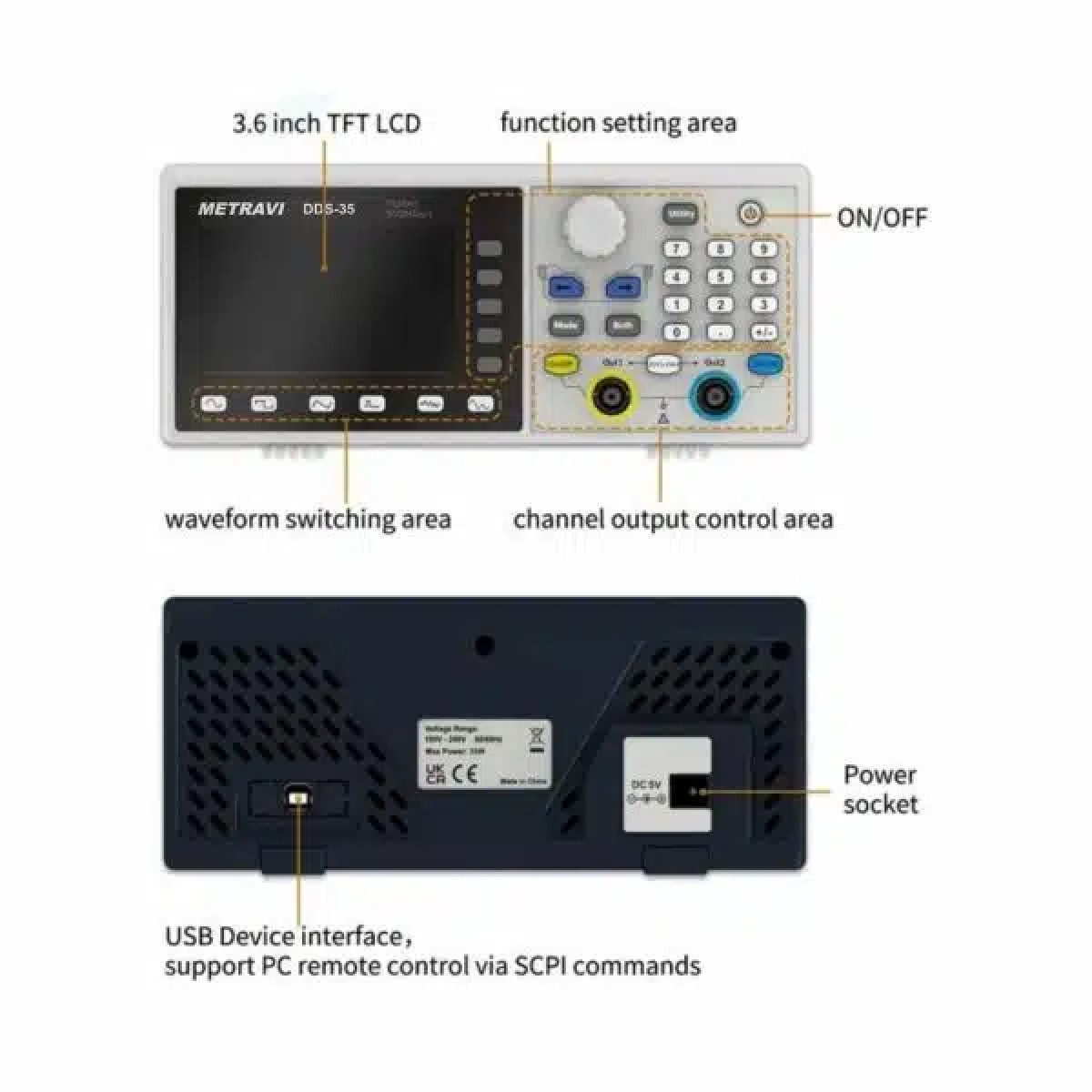

| Display | 3.6”480 x 272 pixels LCD |
| Communication Interface | USB Device |
| Mechanical specifications | |

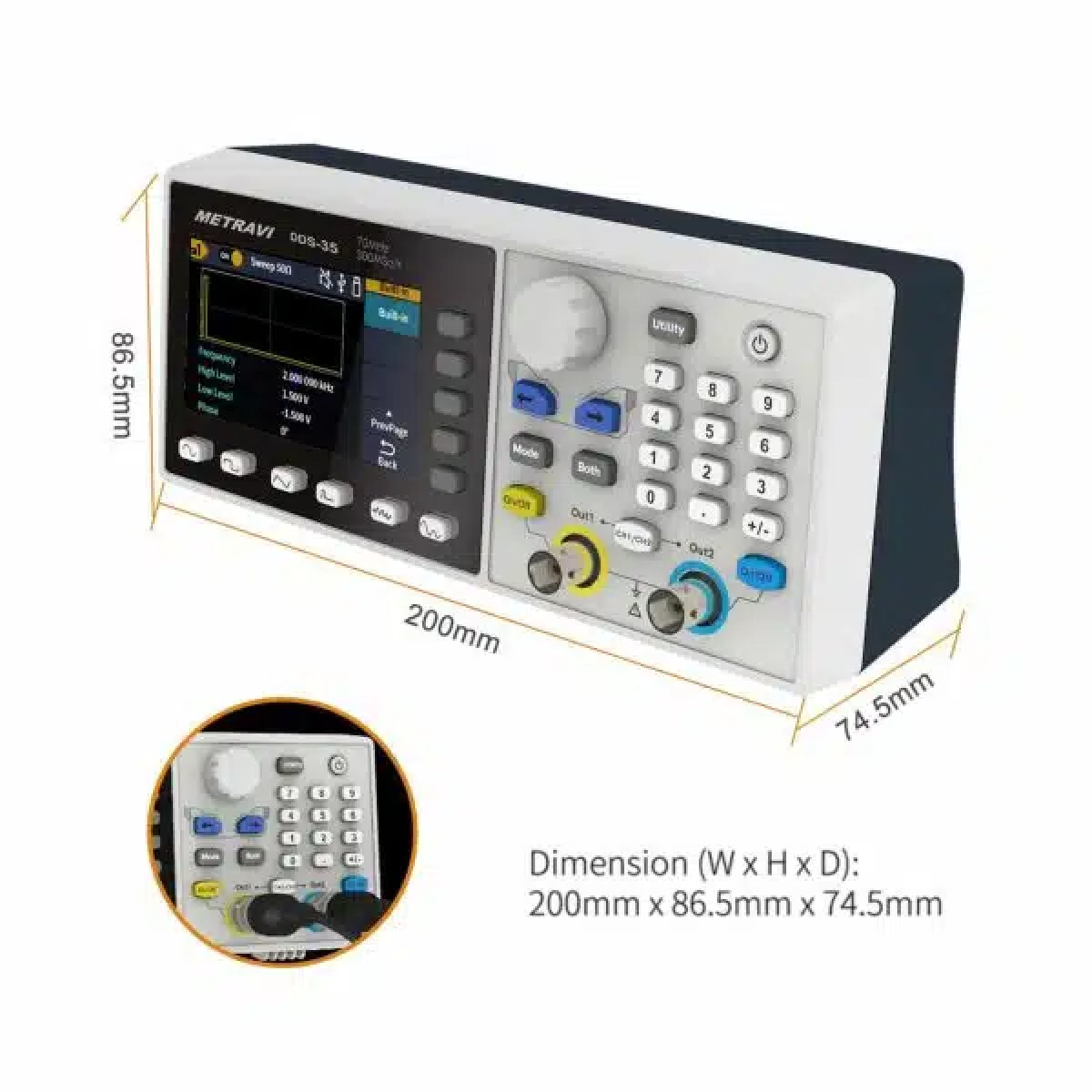

| Size | 200mm x 68.5mm x 75mm |
| Weight | 0.5kg |
