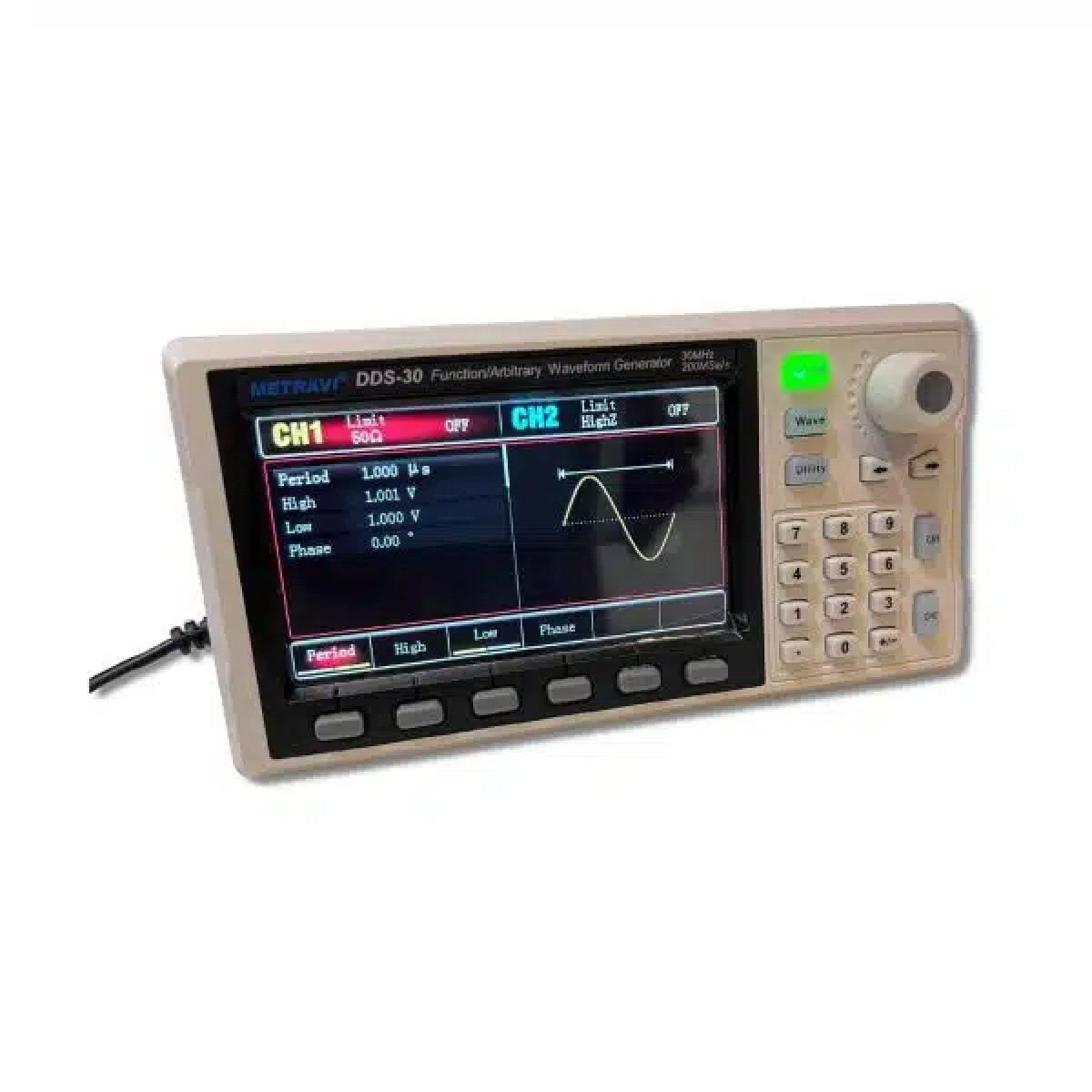

Metravi DDS-30 30Mhz DDS Function Generator
Click To Zoom
Metravi DDS-30 30Mhz DDS Function Generator
Metravi DDS-30 30Mhz DDS Function Generator
The Metravi DDS-30 is an economical, high-performance, multi-functional arbitrary waveform generator that uses direct digital synthesis (DDS) technology to produce accurate and stable waveforms. It can generate accurate, stable, pure, and low-distortion output signals. It has a convenient interface, superior technical indexes and a user friendly graphical display style, which helps users to complete study and test tasks quickly and improves work efficiency.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 22,106
(GST inclusive price) i-
Base Value: ₹ 18733.9
-
GST: (18) % ₹ 3372.1
-
Total Value ₹ 22106
₹29,754.00
( - 26% OFF )
Description
Key Features
- Frequency output of 30MHz, full-band resolution of 1μHz
- Uses the direct digital synthesis (DDS) method, sampling rate of 200MSa/s, and vertical resolution of 14 bits
- Low-jitter Square Wave Output
- TTL level signal compatible 7 digits high accuracy frequency counter
- 24 groups of non-volatile arbitrary waveform storage
- Simple and useful modulation types: AM. FM, PM, FSK
- Supports frequency scanning and output
- Powerful upper computer software
- 4.3 inches TFT color screen
- Standard configuration interface: USB Device
- Easy-to-use multi-functional knob and numeric keypad
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display type | 4.3 inches TFT LCD |
| Resolution | 480x272 |
| Power supply | DC5V, 2A |
| Power consumption | Less than 10W |
| Temperature range | Operation: 10°C~+40°C |
| Storage: -20°C~+60°C | |
| Cooling method | Natural cooling |
| Humidity range | Below +35°C: ≤90% relative humidity |
| +35°C~+40°C: ≤60% relative humidity | |
| Altitude | Below 2,000m |
| Dimensions | 172mm x 90mm x 68mm |
| Net weight | 0.33kg |
| Rough weight | 0.77kg |
| Standard Configuration | A power line up to local standard |
| A BNC-alligator clip cable | |
| A BNC cable (1m) | |
| Power voltage | 100-240Vrms 50/60Hz 0.4A |
| Output voltage | 5VDC |
| Output current | 2A |
| Technical Specification | |
| Channel | Dual channels |
| Max frequency | 30MHz |
| Sampling rate | 200MSa/s |
| Waveform | Sine Wave, Square Wave, Ramp Wave, Pulse Wave, Noise, DC, Arbitrary Wave |
| Working modes | Output gating, continuous, modulation, frequency sweep |
| Modulation types | AM, FM, PM, FSK, Line, Log |
| Frequency Characteristics | ||
| Sine wave | ||
| Frequency range | 1μHz~30MHz | |
| Resolution | 1μHz | |
| Accuracy | within 90 days: ±50ppm, within 1 year: ±100ppm (18°C-28°C) | |
| Harmonic distortion (typical value) | DC~5MHz | -60dBc |
| 5MHz~30MHz | 50dBc | |
| 30MHz~60MHz | -40dBc | |
| THD (typical value) | /0.2% (DC~20kHz, 1Vpp) | |
| Spurious signal (non-harmonic wave, typical value) | test condition: output power 0dBm | |
| DC~10MHz, <-70dBc | ||
| > 10MHz < -70dBc+6dB/octave | ||
| Phase noise (typical value) | 10 MHz: ≤125dBc/Hz (typical, 0dBm, 10kHz deviation) | |
| Square Wave | |
| Frequency range | 1μHz~15MHz |
| Resolution | 1μHz |
| Rise/fall time | <16ns (typical value, 1kHz, 1Vpp) |
| Overshoot (typical value) | <2% |
| Duty ratio | 0.01%~99.99% (limited by current frequency) |
| Symmetry (50% duty ratio) | 1ns + 100ppm of period |
| Shake (typical value) | Typical value (1 MHz, 1Vpp, 500) |
| ≤5MHz: 2ppm+ 200ps | |
| >5MHz: 200ps | |
| Ramp Wave | |
| Frequency | 1μHz~400kHz |
| Resolution | 1μHz |
| Non-linearity | 3%±2mV (typical value, 1kHz, 1Vpp, symmetry 50%,) |
| Symmetry | 0.0% ~100.0% |
| Pulse Wave | |
| Frequency | 1μHz~15MHz |
| Resolution | 1μHz |
| Pulse width | ≥22ns |
| Variable edge | 15ns~8s |
| Overshoot | <2% (typical value 1Vpp) |
| Shake | 150ps |
| Gauss Noise | |
| Bandwidth | 30MHz(-3dB) (typical value) |
| DC Offset | |
| Range (peak AC+DC) | ±5V (50W) |
| ±10V (high resistance) | |
| Offset accuracy | ±3% of offset set value ±6% of amplitude value ±2mV |
| Arbitrary Wave Characteristics | |
| Frequency range | 1μHz~10MHz |
| Resolution | 1μHz |
| Wave length | 4kpts |
| Vertical resolution | 14bits (symbol included) |
| Sampling rage | 200MSa/s |
| Minimum rising/falling time | < 20ns typical value |
| Shake | 5ns±150ps |
| Nonvolatile storage | 24 waveforms |
| Output Characteristics | |
| Amplitude range | ≤10MHz: 1mVpp~10Vpp; (50W) |
| ≤60MHz: 1mVpp~5Vpp; (50W) | |
| Accuracy (1kHz sine wave) | ±(5% of set value+2mVpp) |
| Amplitude flatness (equal to 1kHz sine wave, 1Vpp/50W) | Test condition: typical value (sine wave, 2. 0Vpp) |
| ≤100kHz: ±0.1dB; ≤20MHz: ±0.3dB; ≤30MHz: ±0.5dB; ≤40MHz: ±0.6dB; ≤60MHz: ±0.8dB | |
| Waveform Output | |
| Impedance | 50W typical value |
| Insulation | Maximum 42Vpk to ground wire |
| Protection | Channel protection |
| Modulation Types | |
| AM Modulation | |
| Carrier wave | Sine wave, square wave, ramp wave, arbitrary wave |
| Source | Internal |
| Modulation wave | Sine wave, square wave, ramp wave, noise, arbitrary wave |
| Modulation frequency | 2mHz~200kHz |
| Modulation depth | 0%~120% |
| FM Modulation | |
| Carrier wave | Sine wave, square wave, ramp wave, arbitrary wave |
| Modulation wave | Sine wave, square wave, ramp wave, noise, arbitrary wave |
| Modulation frequency | 1μHz~200kHz |
| Frequency deviation | DC~15MHz |
| PM Modulation | |
| Carrier wave | Sine wave, square wave, ramp wave, arbitrary wave |
| Modulation wave | Sine wave, square wave, ramp wave, noise, arbitrary wave |
| Modulation frequency | 2mHz~200kHz |
| Phase deviation | 0°~360° |
| FSK Modulation | |
| Carrier wave | Sine wave, square wave, ramp wave, arbitrary wave |
| Source | Internal/external |
| Modulation wave | Square wave (Duty ratio 50%) |
| Rate | 2mHz~100kHz |
| Frequency sweep | |
| Carrier wave | Sine wave, square wave, ramp wave, arbitrary wave |
| Type | Linear or logarithmic |
| Frequency sweep time | 1ms~500s ± 0.1% |
| Sync Signal | |
| Output level | TTL compatible |
| Output frequency | 1μHz~2MHz |
| Output frequency | 50Ω, typical value |
| Coupled mode | DC |
| Trigger Input | |
| Output level | TTL compatible |
| Input impedance | > 10kΩ, DC coupling |
| Frequency Counter | |
| Output level | TTL compatible |
| Range of input frequency | 100mHz-100MHz |
| Accuracy | ±51ppm |
| Frequency resolution | 7 digit |
| Coupled mode | DC |
