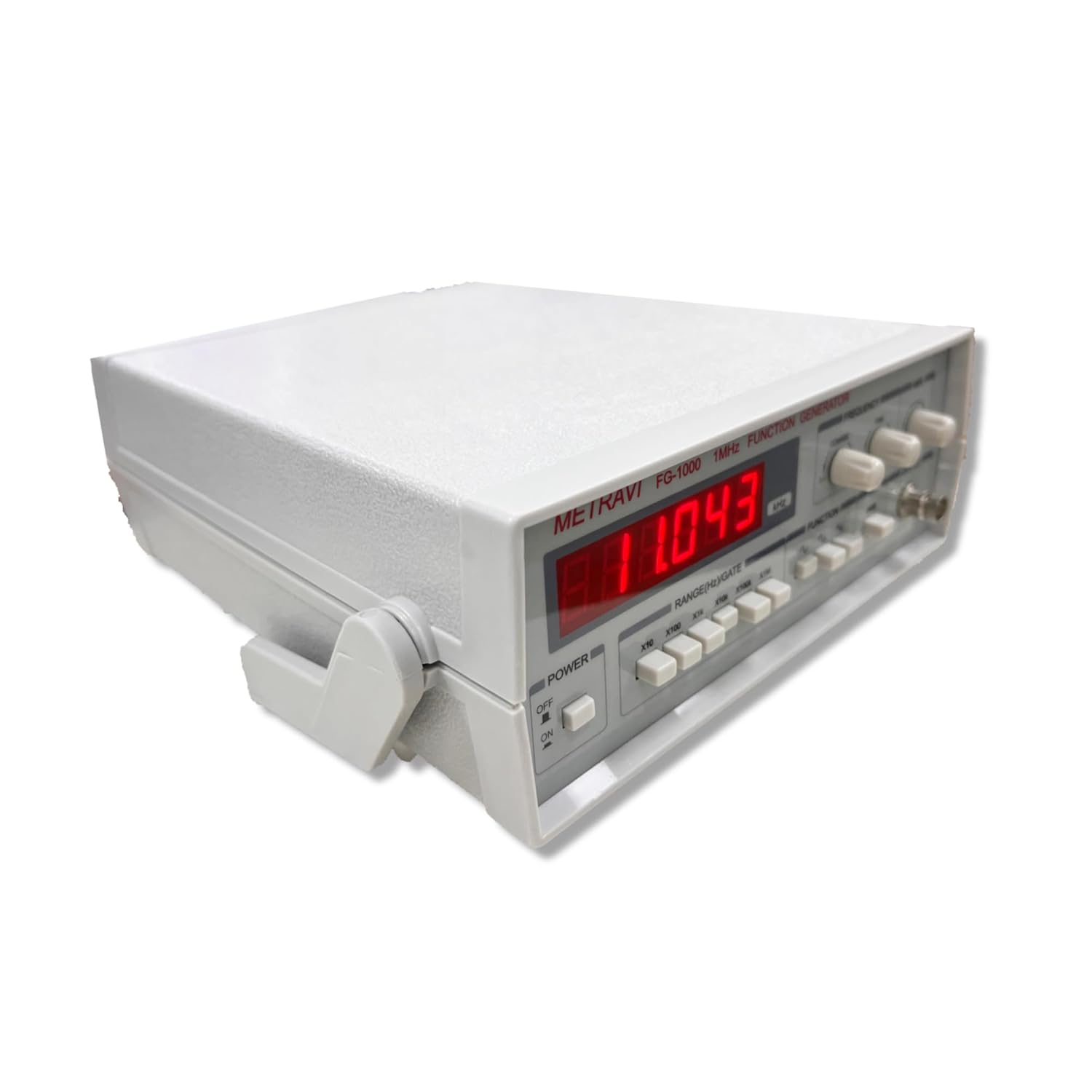

Metravi FG-1000 Digital Function Generator
Click To Zoom
Metravi FG-1000 Digital Function Generator
Metravi FG-1000 Digital Function Generator
1MHz Function Generator with TTL / CMOS output
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 17,010.00
(GST inclusive price) i₹17,010.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |||
| Frequency Range | 0.1Hz sim 1MHz | 0.1Hz~2MHz | 0.1Hz sim 3MHz |
| Output Waveforms | Sine, Triangle, Positive and Negartive Pulse, Positive and Negative Ramp | ||
| Output Impedance | 50 Ohms +/- 10% | ||
| Output Amplitude | Not Less than 20Vp-p (open circuit), 10Vp-p (50 Ohms Load) | ||
| DC Voltage | 0 ~+/ - 10V Continuously adjustance | ||
| Symmetry Range | 90/10 - 10/90 | ||
| Rising Edge of Square | Less than 100nS | ||
| Sine Wave Characteristics | |
| Distortion | Less than 1% at 1 - 100kHz |
| Frequency Response | 0.1Hz~100kHz: Less than +/- 0.5dB 100kHz~2MHz: Less than +/- 1dB |
| TTL/CMOS Output | |
| Level | TTL Low level less than 0.4V in pulse wave, high level less than 3.5V CMOS Low level less than 0.5V in pulse wave, high level 5V sim 14V continuously variable |
| Rising Time | Less than 100nS |
| VCF Input | |
| Output Voltage | -5V-OV+/-10% |
| Max. Volt-Controlled | 1000:1 |
| Input Signal | DC~1KHz |
| Frequency Counter | |
| Measuring Range | 1Hz~30MHz |
| Input Impedance | Not less than 1M.Ohms // 20pF |
| Sensivitity | 100mV rms |
| Max. Input | 150V (AC + DC) |
| Input Attenuation | 20dB |
| Accuracy | Less than 0.003% +/- 1 digit |
| Line Power | 220V/110V +/- 10%, 50Hz/60Hz |
| Dimension | 300 (w) x 260 (h) x 100 (d) mm |
