Kusam Meco KM 307 Digital Multimeter LCR Meter
Click To Zoom
Kusam Meco KM 307 Digital Multimeter LCR Meter
Kusam Meco KM 307 Digital Multimeter LCR Meter
Kusam-Meco KM 307 Digital Clamp Meter is a high-precision, compact instrument designed for safe and efficient measurement of AC/DC current, voltage, resistance, continuity, and more. Ideal for electricians and service engineers, it features a sleek design, user-friendly interface, and essential functions like data hold, backlit LCD, and overload protection. Perfect for quick diagnostics and on-the-go troubleshooting in industrial, commercial, and residential settings.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 7,450
(GST inclusive price) i-
Base Value: ₹ 6313.6
-
GST: (18) % ₹ 1136.4
-
Total Value ₹ 7450
₹12,230.00
( - 23% OFF )
Description

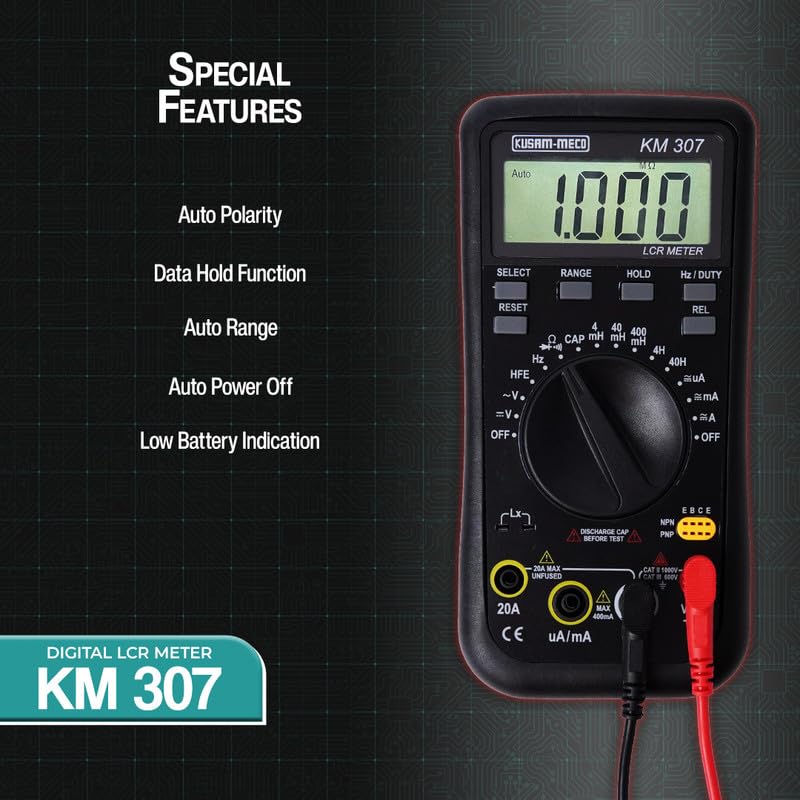

Key Features
- Polarity Function
- LCD Display
- Data Hold facility
- Auto Power Off
- Auto range
- Low battery indication
- Transistor hFE test
- Diode Test, HFE, Continuity Test & Duty Cycle
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Display : 3¾ digit LCD display (4000 Counts)
• Low Battery Indication : The “ ” is displayed when the battery voltage drops below 2.4V.

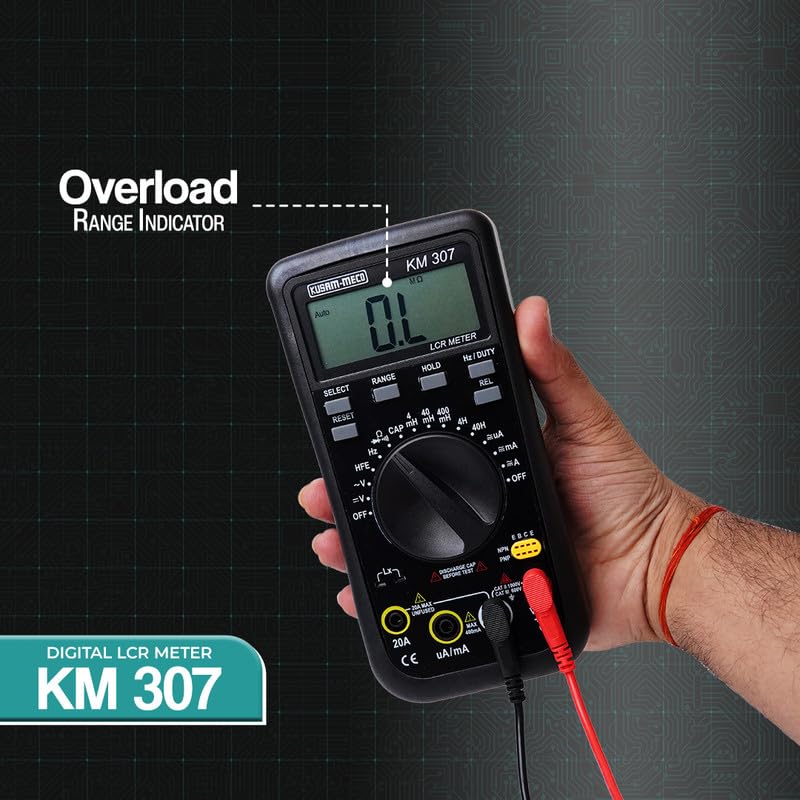

• Over range Indication : ‘OL’ indication.
• Power : 1.5V AA x 2 battery.
• Dimension : Aporox. 187(L)mm x 88(W)mm x 32(H)mm.
• Weight : Approx. 200g. (Including battery)
TECHNICAL
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 400 μA | 0.1 μA | ± (1.8%rdg + 3dgts) |
| 4000 μA | 1 μA | |
| 40 mA | 10 μA | ± (2.0%rdg + 3dgts) |
| 400 mA | 0.1 mA | |
| 10(20) A | 10 mA | ± (2.5%rdg + 5dgts) |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 400 μA | 0.1 μA | ±(1.2%rdg + 2dgts) |
| 4000 μA | 1 μA | |
| 40 mA | 10 μA | ±(1.5%rdg + 2dgts) |
| 400 mA | 0.1 mA | |
| 10(20) A | 10 mA | ±(2%rdg + 3dgts) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ±(1.8% rdg + 5 dgts) |
| 4 V | 1 mV | ±(1.0% rdg + 3 dgts) |
| 40 V | 10 mV | |
| 400 V | 0.1 V | |
| 1000 V | 1 V | ±(1.5% rdg + 3 dgts) |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ±(1.0% rdg + 2 dgts) |
| 4 V | 1 mV | ±(0.8% rdg + 2 dgts) |
| 40 V | 10 mV | |
| 400 V | 0.1 V | |
| 1000 V | 1 V | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400 Ω | 0.1 Ω | ±(1%rdg + 2dgts) |
| 4 kΩ | 1 Ω | |
| 40 kΩ | 10 Ω | |
| 400 kΩ | 100 Ω | |
| 4 MΩ | 1 kΩ | |
| 40 MΩ | 10 kΩ | ±(1.5%rdg + 2dgts) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 4 nF | 1 pF | ±(5.0%rdg + 25dgts) |
| 40 nF | 10 pF | ±(2.5%rdg + 10dgts) |
| 400 nF | 100 pF | ±(2.0%rdg + 4dgts) |
| 4 μF | 1 nF | |
| 40 μF | 10 nF | |
| 200μF (100μF) | 100 nF | Unspecified,>30Sec |
| INDUCTANCE | ||
| Range | Resolution | Accuracy |
| 4 mH | 1 pH | ±(5.0%rdg + 25dgts) |
| 40 mH | 10 pH | ±(2.5%rdg + 10dgts) |
| 400 mH | 100 pH | ±(2.0%rdg + 3dgts) |
| 4 H | 1 mH | ±(5.0%rdg + 25dgts) |
| INDUCTANCE | |||
| Range | Description | Test condition | |
| hFE | NPN | Display read approx hFE value(0~1000) of transistor under test | lb≈10 mA VCE≈1.5V |
| PNP | |||
| DUTY CYCLE | |
| Range | 0.1% to 99.9% |
