Metravi 4070D Digital Hand-held LCR Meter

Click To Zoom

Metravi 4070D Digital Hand-held LCR Meter

Metravi 4070D Digital Hand-held LCR Meter

(Based On 10 Reviews)

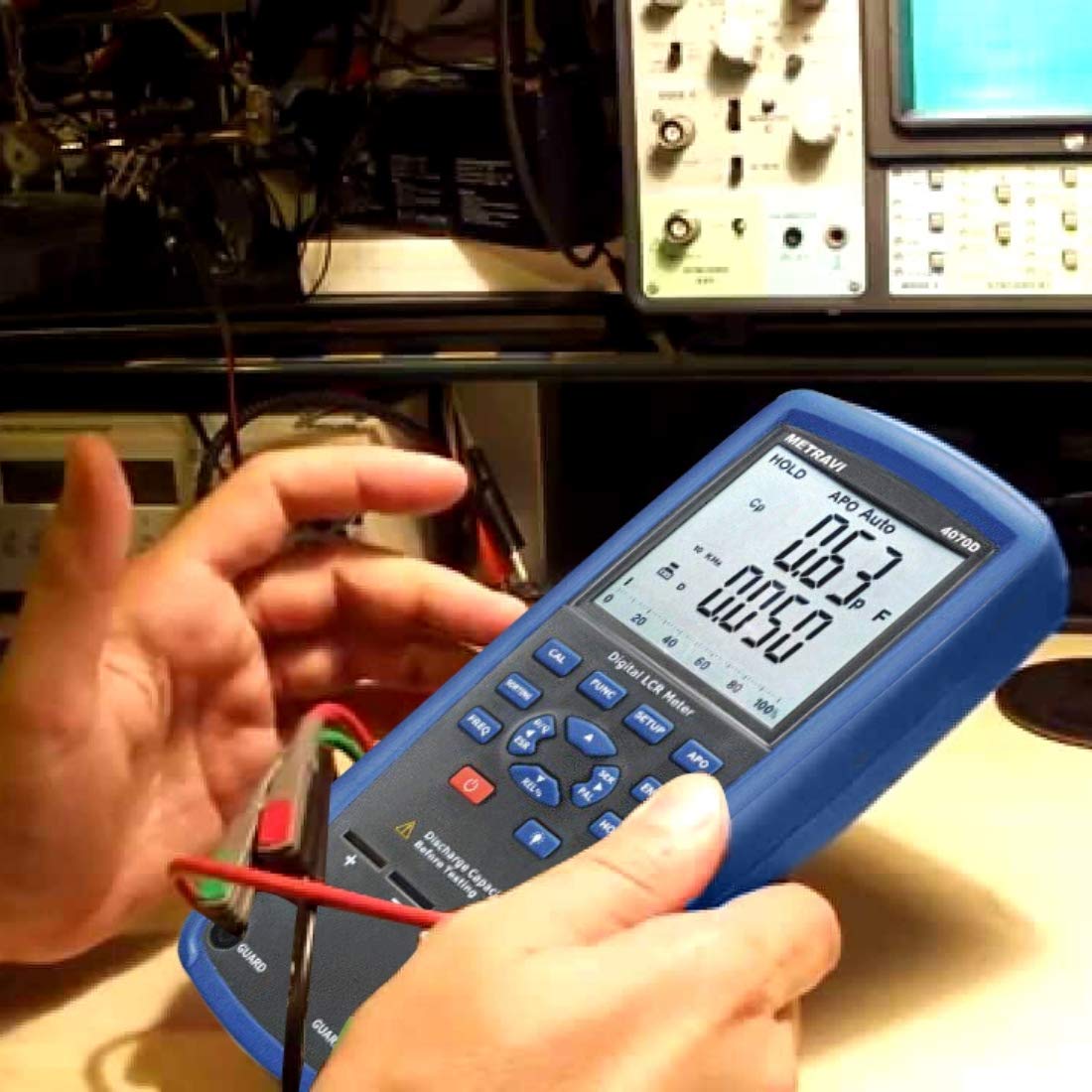

The Metravi LCR Meter 4070D features an innovative automatic selection technology, automatically measuring L,C and R with Q, D and θ by just turn on the meter. The testing frequency is up to 10kHz and it can output up to 100kHz test frequency. It provides high accuracy with four or five terminal Kelvin measurements.

4-1/2 Digits, Dual LCD, Auto LCR / DCR / D/ Q / ESR / Phase Angle, variable frequency output of 100Hz / 120Hz / 1kHz / 10kHz / 100kHz

Request Callback

Order In Bulk

Generate Quote

₹ 17,618.00

(GST inclusive price) i
  • Base Value: ₹ 14930.5
  • GST: (18) % ₹ 2687.5
  • Total Value ₹ 17618

₹17,618.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Dual LCD
  • Auto LCR smart check and measurement
  • Series/Parallel modes are selectable
  • Ls/Lp/Cs/Cp with D/Q//ESR parameters
  • Support DCR mode 200.000~200.0ΜΩ
  • Five different test frequencies are available: 100/120/1k/10k/100k Hz
  • Test AC signal level: 0.6mVRMS Typ.
  • Test range: (ex. F=1kHz)
  • L: 200.00 μΗ ~ 2000.0 Η
  • C: 2000.0 pF~2.000 Mf
  • R: 20.0002 - 200.0 ΜΩ
  • Multi-level battery voltage detector
  • Support Backlight & Buzzer sound driver
  • Primary Parameters Display:
  • DCR: DC Resistance
  • Ls: Serial Inductance
  • Lp: Parallel Inductance
  • Cs: Serial Capacitance
  • Cp: Parallel Capacitance
  • Rs: Serial Resistance
  • Rp: Parallel Resistance
  • Second Parameter Display:
  • → Phase Angle
  • ESR: Equivalence Serial Resistance
  • D: Dissipation Factor
  • Q: Quality Facto

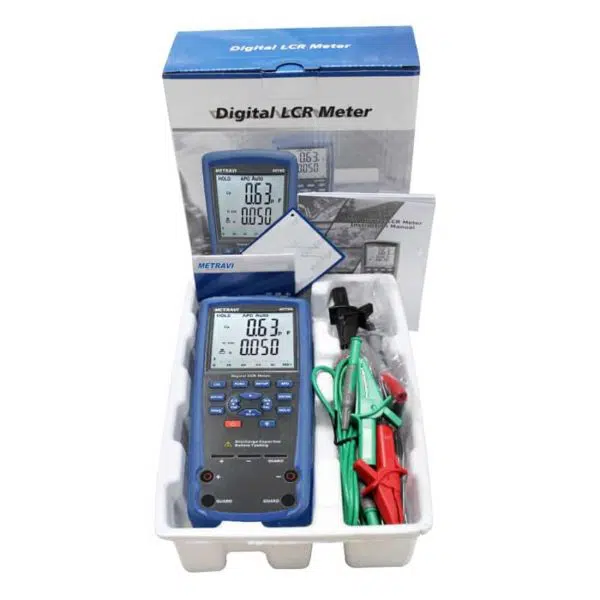

What's in the box?

  • Digital Hand-held LCR Meter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specification
INDUCTANCE @ TA =18~28°C
RangeResolutionLx AccuracyDF AccuracyMeasurement Mode
20.000mH1uH1.5% ± 10d1.5% ± 50dSeries
200.00mH0.01mH1.4% ± 15d1.4% ± 50dSeries
2000.0mH0.1mH1.5% ± 15d1.5% ± 50dSeries
20.000H1mH1.6% ± 10d1.6% ± 50d
200.00mH0.01H1.3% ± 10d1.3% ± 50dParallel
2000.0H0.1H2.0% ± 15d2.0% ± 50dParallel
20.000kH0.001kH2.5% ± 15d2.5% ± OdParallel



Frequency = 1kHz
RangeResolutionLx AccuracyDF AccuracyMeasurement Mode
2000.0mH0.1uH1.3% ± 10d1.3% ± 50dSeries
20.000mH1uH1.2% ± 10d1.2% ± 50dSeries
200.00mH0.01mH1.2% ± 10d1.2% ± 50dSeries
2000.0mH0.1mH1.5% ± 15d1.5% ± 50d
20.000H1mH1.5% ± 15d1.5% ± 50dParallel
200.00mH0.1uH2.0% ± 10d2.0% ± 50dParallel
2000.0H0.1H2.5% ± 15d2.5%± 50dParallel



Frequency = 10kHz
RangeResolutionLx AccuracyDF AccuracyMeasurement Mode
200.00mH0.01mH1.8% ± 10d1.8% ± 50dSeries
2000.0mH0.1mH1.5% ± 15d1.5% ± 50dSeries
20.000H1mH1.2% ± 15d1.2% ± 50d
200.00mH0.1uH1.5% ± 15d1.5% ± 50d
2000.0H0.1H2.0% ± 10d2.0% ± 50dParallel
20.000mH1mH2.5% ± 15d2.5%± 50dParallel



Frequency = 100kHz
20.000H1mH1.2% ± 15d1.2% ± 50dSeries
200.00mH0.1uH1.5% ± 15d1.5% ± 50dSeries
2000.0H0.1H2.0% ± 10d2.0% ± 50dSeries
20.000mH1mH2.5% ± 15d2.5%± 50dParallel
200.00mH0.01mH2.5% ± 15d2.5%± 50dParallel



CAPACITANCE TA=18 sim 28 deg * C
Frequency = 100 Hz/120 Hz
RangeResolutionCx AccuracyDF AccuracyMeasurement Mode
20.000nF1pF2.5% ±  10 * d2.5% ±  50 * dParallel
200.00nF0.01nF1.2% ±  10 * d1.2% ±  50 * d
2000.0nF0.1nF0.9% ±  10 * d0.9% ±  50 * d
20.000uF1nF1%±  15 * d1.0% ± 50dSeries
200.00uF0.01uF1.2 * n/h + 10d1.2% + 50dSeries
2000.0uF0.1uF2.5% ±  10 * d2.5% + 50dSeries
20.00mF0.01mF5% ±  10 * d5% ±  50 * dSeries



Frequency = 1kHz
RangeResolutionCx AccuracyDF AccuracyMeasurement Mode
20.000nF1pF2.5%±  10 * d2.5% ±  50 * dParallel
200.00nF0.01nF1.2% ±  10 * d1.2%±  50 * d
2000.0nF0.1nF0.9%±  10 * d0.9% ±  50 * d
20.000uF1nF1% ±  15 * d1.0% ± 50dSeriesSeries
200.00uF0.01uF1.2 * n/h + 10d1.2% + 50dSeries
2000.0uF0.1uF2.5% ±  10 * d2.5% + 50dSeries
20.00mF0.01mF5% ±  10 * d5%±  50 * dSeries



Frequency = 10kHz
RangeResolutionCx AccuracyDF AccuracyMeasurement Mode
20.000nF1pF2.5% plus/minus 10 * d2.5% ±  50 * dParallel
200.00nF0.01nF1.2% plus/minus 10 * d1.2% ±  50 * d
2000.0nF0.1nF0.9% plus/minus 10 * d0.9% ± 50 * d
20.000uF1nF1% plus/minus 15 * d1.0% ± 50dSeriesSeries
200.00uF0.01uF1.2 * n/h + 10d1.2% + 50dSeries
2000.0uF0.1uF2.5% plus/minus 10 * d2.5% + 50dSeries
20.00mF0.01mF5% plus/minus 10 * d5% ±  50 * dSeries



Frequency = 100kHz
20.000H1mH1.2% ± 15d1.2% ± 50dSeries
200.00mH0.1uH1.5% ± 15d1.5% ± 50dSeries
2000.0H0.1H2.0% ± 10d2.0% ± 50dSeries
20.000mH1mH2.5% ± 15d2.5%± 50dParallel
200.00mH0.01mH2.5% ± 15d2.5%± 50dParallel



RESISTANCE @ TA=18~28°C
Frequency = 100 Hz/120 Hz
RangeResolutionRx Accuracy
200.00Ω0.01Ω1.2% ± 10d
2.0000ΚΩ0.1Ω0.8% ± 5d
20.000ΚΩ1Ω0.9% ± 5d
200.00ΚΩ0.01Ω0.7% ± 3d
2.0000ΜΩ0.1ΚΩ1.0% ± 5d
20.000ΜΩ1ΚΩ2.2% ± 10d
200.0ΜΩ0.1ΜΩ2.5% ± 10d



Frequency = 1KHZ
RangeResolutionRx Accuracy
200.00Ω0.01Ω1.2% ± 10d
2.0000ΚΩ0.1Ω0.8% ± 5d
20.000ΚΩ1Ω0.9% ± 5d
200.00ΚΩ0.01Ω0.7% ± 3d
2.0000ΜΩ0.1ΚΩ1.0% ± 5d
20.000ΜΩ1ΚΩ2.2% ± 10d
200.0ΜΩ0.1ΜΩ2.5% ± 10d



DC RESISTANCE @ TA=18 sim 28 deg * C
Frequency 100Hz/120Hz/1kHz/10kHz/100KHz
RangeResolutionRx Accuracy
200.0020.0121.8% ±  10 * d
2.0000ΚΩ0.1Ω0.6% ±  20 * d
20.000ΚΩ1Ω0.6%±  20 * d
200.00ΚΩ0.01ΚΩ0.5% ± 3 * d
2.0000ΜΩ0.1ΚΩ1.5% ± 5d
20.000ΜΩ1ΚΩ2.0% ± 5d
200.0ΜΩ0.1ΜΩ2.5% ±  5 * d



D VALUE ACCURACY @ TA=18 sim 28 deg * C
Freq./Z0.1-1Ω1-10Ω10-100kΩ100k-1ΜΩ1Μ-20ΜΩ20M-200ΜΩ
100/120Hz±0.03±0.01±0.0090.010.020.04
1kHz±0.03±0.01±0.0090.0110.020.09
10kHz±0.03±0.01±0.0090.0090.010.04
100kHz+ 0 n4±0.03±0.010.010.020.04
