Metravi 460 Digital Hand-held LCR Meter

Click To Zoom

Metravi 460 Digital Hand-held LCR Meter

Metravi 460 Digital Hand-held LCR Meter

(Based On 10 Reviews)

The Metravi 460 LCR Meter is an 11,000 counts instrument with a 3 1/2 digits, Backlit, LCD display. Widely used for measuring Inductance, Resistance, Capacitance and conducting Diode, Continuity and Transistor tests.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 5,867.00

(GST inclusive price) i
  • Base Value: ₹ 4972
  • GST: (18) % ₹ 895
  • Total Value ₹ 5867

₹7,898.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

  • Data Hold Facility to freeze the displayed data
  • MAX/MIN Data Record
  • Relative Measurement
  • 11000 Counts, 3 1/2 Digits
  • Backlit LCD
  • Confirms to EN61010-1, lnsulation Class 2
  • IP67 Certified Dust and Water proof
  • Low Battery and Over-range indication
  • Auto Power Off
  • Low Battery Indication
  • Inductance 0 – 11m/110m/11/20H
  • Accuracy ±2.0%
  • Capacitance 0 – 11n/110n/1.1u/11u/110u/1.1m/110m/110mF
  • Accuracy ±5.0%
  • Resistance 0 – 110/1.1k/11k/110k/1.1M/11M/110MΩ
  • Accuracy ±1.2%
  • Diode Test
  • Audible Continuity Test
  • Transistor Test Facility

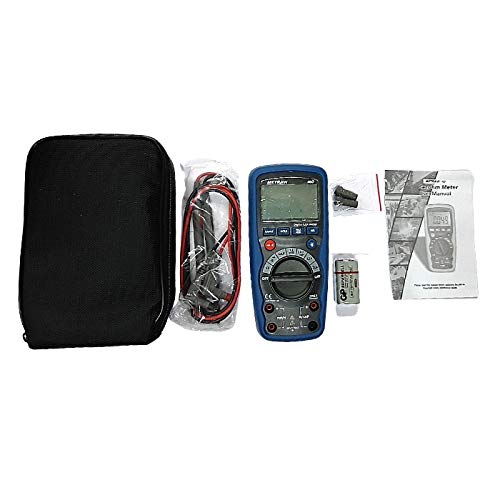

What's in the box?

  • Metravi 460 Digital Hand-held LCR Meter
  • Test Leads
  •  User Manual
  • Carrying Case

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
DisplayLCD
Max. Display11000 Counts, 3 1/2 digits, Auto Polarity Indication
Measuring Methoddual slope A/D conversion
Sampling Rateapprox. 3 times/second
Over Range Indicationthe MSD displays "1"
Operation Environment(0~40)°C,R.H.<80%.
Power9V×1(NEDA1604/6F22 or equivalent model)
Size189 x 97 x 35mm
Weightapprox. 380g(including battery).



Technical Specification
INDUCTANCE
RANGEACCURACYRESOLUTIONMEASURE FREQUENCY
2mH±(2.0%+5d)1uHAbout 200Hz
20mH10 uH
200mH100uH
2H±(5.0%+5d)1mH
20H±(5.0%+15d)10mH



CAPACITANCE
RANGEACCURACYRESOLUTIONMEASURE FREQUENCY
200nF±(1.0%+5d)1pFAbout 200Hz
2HF10pF
2HF100pF
20HF±(2.0%+5d)1nFAbout 16Hz
20HF10nF
200uF±(5.0%+5d)100nfAbout 8Hz
1000uF±(5.0%+25d)1uF



RESISTANCE
RANGEACCURACYRESOLUTION
200Ω±(0.8%+5d)0.1Ω
2ΚΩ±(0.8%+3d)
2ΚΩ10Ω
200Ω100Ω
2ΜΩ1ΚΩ
2ΚMΩ±(1.0%+15d10 ΚΩ
