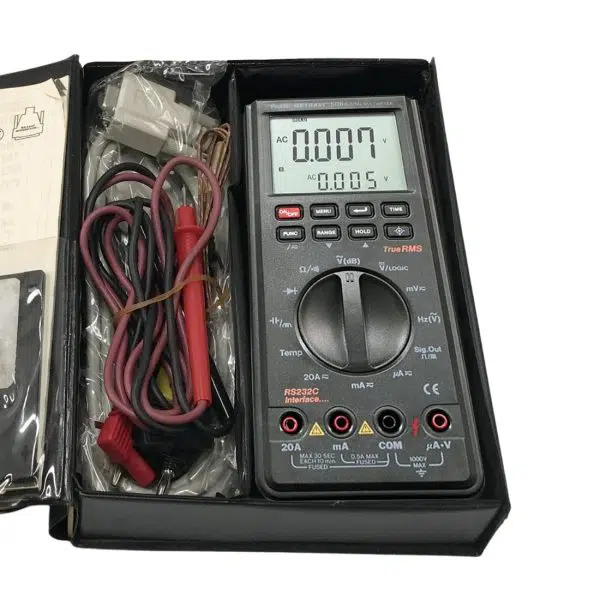

Metravi 506 Digital LCR Meter with Multimeter
Click To Zoom
Metravi 506 Digital LCR Meter with Multimeter
Metravi 506 Digital LCR Meter with Multimeter
3-3/4 Digits, Backlit, LCD Dual Display, T-RMS, RS-232 PC Interface, Internal Memory, Min, Max, Avg, Relative Modes, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Inductance, Duty Cycle, Temperature, dBm, Logic, Diode, Signal Output & Continuity Test.
Request Callback
Order In Bulk
Generate Quote
₹ 29,754.00
(GST inclusive price) i₹29,754.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | ||
| DC Voltage | ||
| Range | Resolution | Accuracy |
| 400mV | 0.1 mV | ± 0.3% ± 2d |
| 4V, 40V, 400V, 1000V | 1mV, 10mV, 100mV, 1V | ± 0.5% ± 2d |
| AC Voltage | ||
| Range | Resolution | Accuracy |
| 400mV | 0.1 mV | ± 1% ± 3d |
| 4V, 40V, 400V, 750V | 1mV, 10mV, 100mV, 1V | ± 1.5% ± 5d |
| DC Current | ||
| Range | Resolution | Accuracy |
| 400μA, 400mA, 20A | 0.1 µA, 0.1mA, 0.01A | ± 1% ± 2d |
| AC Current | ||
| Range | Resolution | Accuracy |
| 400μA, 400mA, 20A | 0.1 μΑ, 0.1mA, 0.01A | ± 1.5% ± 2d |
| Resistance | ||
| Range | Resolution | Accuracy |
| 400Ω, 4ΚΩ, 40ΚΩ, 400ΚΩ | 0.12, 12, 102, 1002 | ± 0.5% ± 2d |
| Frequency | ||
| Range | Resolution | Accuracy |
| 10KHz, 100KHz, 1MHz, 10MHz | 1Hz, 10Hz, 100Hz, 1KHz | ± 0.1% ± 2d |
| Capacitance | ||
| Range | Resolution | Accuracy |
| 100 μF | 0.01 μf | ± 3% ±5d |
| Temperature | ||
| Range | Resolution | Accuracy |
| -20°C~1200°C/0°F~2000°F | 1°C/°F 32+ (9/5 x °C) | ±3% ± 3d (10~350°C), ± 5% ± 3d (350°C~1200°C) |
| DBM | ||
| Range | Resolution | Accuracy |
| -25dBM-+59dBM | 0.01dBm | ± 0.5dBM |
