Kusam Meco BR5810 100kHz Bench Top LCR Meter
Click To Zoom
Kusam Meco BR5810 100kHz Bench Top LCR Meter
Kusam Meco BR5810 100kHz Bench Top LCR Meter

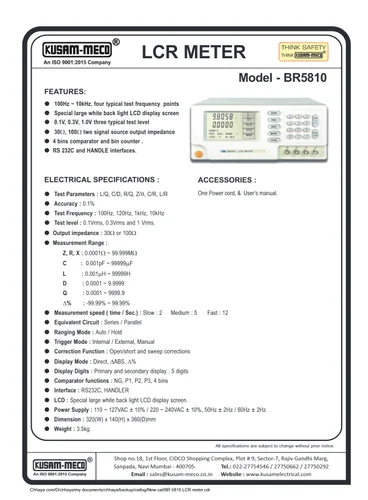

The Kusam Meco BR 5810 is a precision Digital LCR Meter designed for accurate measurement of inductance (L), capacitance (C), and resistance (R) across various electronic components. It is well-suited for both laboratory and field applications, offering a combination of versatility and user-friendly features.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 755.00
(GST inclusive price) i₹98,000.00
( - 99% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Test Parameters | L/Q, C/D, R/Q, Z/q, C/R, L/R |
| Accuracy | 0.1% |
| Test Frequency | 100Hz, 120Hz, 1kHz, 10kHz |
| Test Level | 0.1Vrms, 0.3Vrms, and 1Vrms |
| Output Impedance | 30Ω or 100Ω |
| Measurement Range | Z, R, X: 0.0001Ω ~ 99.999MΩ C: 0.001pF ~ 99999mF L: 0.001mH ~ 99999H D: 0.0001 ~ 9.9999 Q: 0.0001 ~ 9999.9 D%: -99.99% ~ 99.99% |
| Measurement Speed (times/sec) | Slow: 2 Medium: 5 Fast: 12 |
| Equivalent Circuit | Series / Parallel Ranging Mode: Auto / Hold |
| Trigger Mode | Internal / External / Manual |
| Correction Function | Open/short and sweep corrections |
| Display Mode | Direct, DABS, D% |
| Display Digits | Primary and secondary display: 5 digits |
| Comparator Functions | NG, P1, P2, P3, 4 bins |
| Interface | RS232C, HANDLER |
| LCD | Special large white backlight LCD display screen |
| Power Supply | 110 ~ 127VAC ±10% / 220 ~ 240VAC ±10%, 50Hz ±2Hz / 60Hz ±2Hz |
| Dimensions | 320(W) x 140(H) x 360(D) mm |
| Weight | 3.5 kg |
