Kusam Meco KM 8045 4 1/2 Digit TRMS Bench type DMM
Click To Zoom
Kusam Meco KM 8045 4 1/2 Digit TRMS Bench type DMM
Kusam Meco KM 8045 4 1/2 Digit TRMS Bench type DMM
The Kusam Meco KM 8045 is a high-precision 4½-digit bench-type digital multimeter designed for laboratory and industrial applications. It offers a wide measurement range and advanced features, making it suitable for professionals requiring accurate and reliable measurements
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 11,500
(GST inclusive price) i-
Base Value: ₹ 9745.8
-
GST: (18) % ₹ 1754.2
-
Total Value ₹ 11500
₹18,710.00
( - 22% OFF )
Description
Key Features

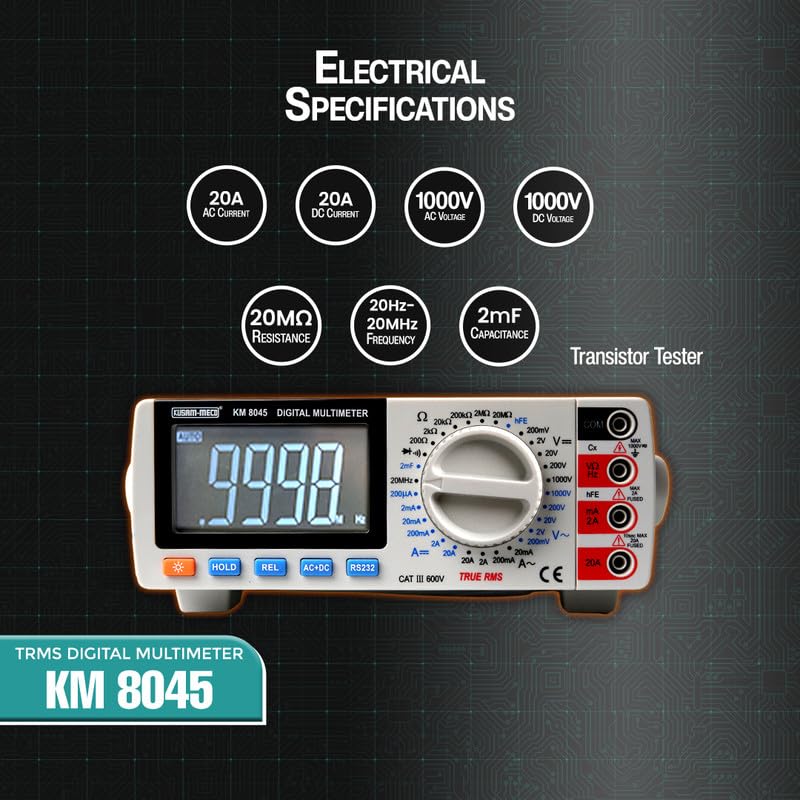

- 4½ Digit high performance Bench-type DMM, with backlight display.
- It can be used to measure DCV, ACV, DCA, ACA, Resistance, Capacitance, Hz, hFE, Diodes and Continuity.
- The max. Voltage measurement is up to 1000V DC or AC peak value, resolution is 10mV, and current measurement is up to 20A, it also has the function of polarity auto-change, back light display and directly reading.
- For AC measuring, it is performed by high accuracy TRUE RMS, can test the bandwidth of the frequency and the TRUE RMS of any waveform can be accurately measured.

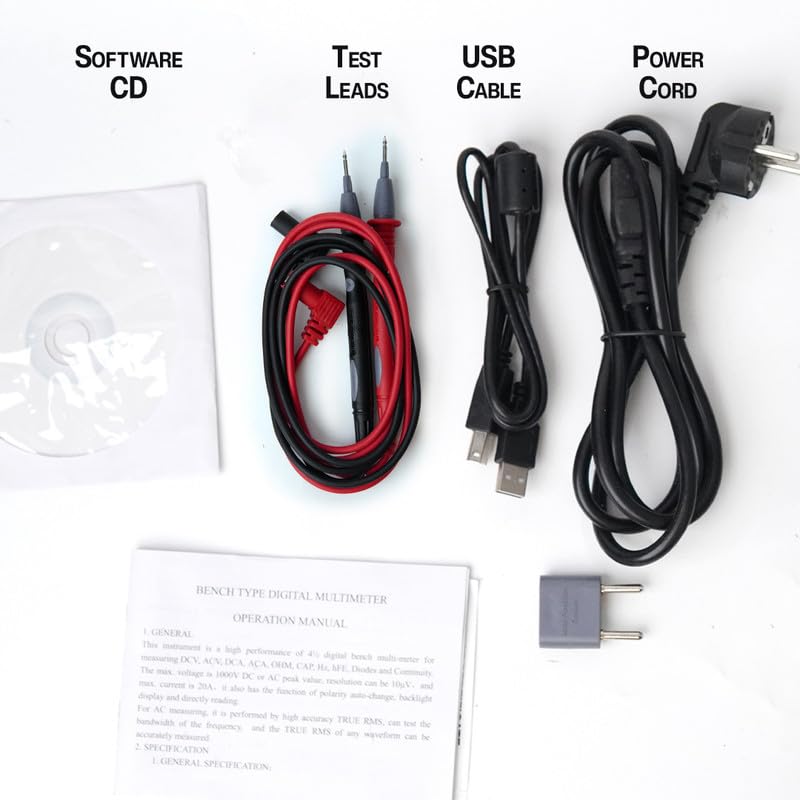

What's in the box?
|
Rating & Reviews
Rating
GENERAL
• 4½ digit large LCD display with backlight (displaying range : 75 x 40mm), max reading : 19999.
• Voltage measurement upto 1000V DC and 1000V AC.
• DC, AC current upto 20A.
• ACV frequency response : 50kHz.
• Frequency, Resistance, Capacitance measurement, Triode, Diode test and Continuity test.
• Manual Range
• Overload protection : 250V rms.
• Operating Temperature : 0°C ~ 40°C, <75% R.H.

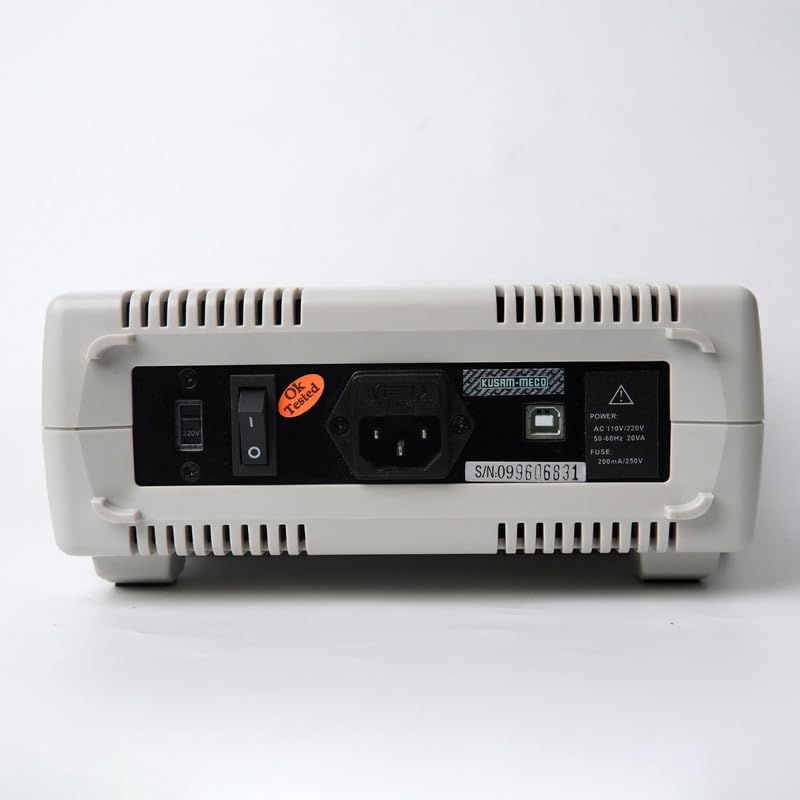

• Power supply : 220V / 110V AC
• Dimension : 260(L) x 220(W) x 82(H)mm

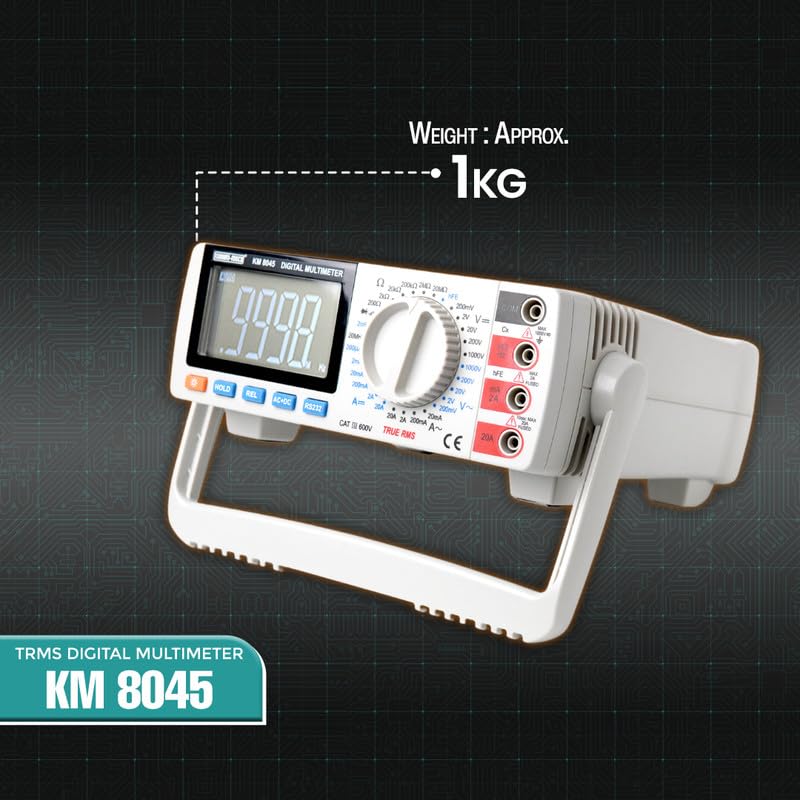

• Weight : Approx.1kg.
TECHNICAL
| AC VOLTAGE (TRUE RMS) | |||
| Range | Input frequency | Resolution | Accuracy |
| 200 mV | 40Hz ~ 1kHz | 10 μV | ± (0.7% rdg + 30 dgts) |
| 1kHz ~ 10kHz | ± (2% rdg + 30 dgts) | ||
| 10kHz ~ 20kHz | ± (3% rdg + 60 dgts) | ||
| 20kHz ~ 50kHz | ± (10% rdg + 250 dgts) | ||
| 2 V | 40Hz ~ 1kHz | 100 μV | ± (0.5% rdg + 30 dgts) |
| 1kHz ~ 10kHz | ± (2% rdg + 30 dgts) | ||
| 10kHz ~ 20kHz | ± (5% rdg + 60 dgts) | ||
| 20 V | 40Hz ~ 1kHz | 1 mV | ± (0.5% rdg + 30 dgts) |
| 1kHz ~ 10kHz | ± (2% rdg + 30 dgts) | ||
| 10kHz ~ 20kHz | ± (3% rdg + 60 dgts) | ||
| 200 V | 40Hz ~ 1kHz | 10 mV | ± (0.5% rdg + 30 dgts) |
| 1kHz ~ 5kHz | ± (2% rdg + 30 dgts) | ||
| 1000 V | 40Hz ~ 200Hz | 100 mV | ± (0.8% rdg + 10 dgts) |
| 200Hz ~ 400Hz | ± (1.2% rdg + 80 dgts) | ||
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 200 mV | 10 μV | ±(0.05%rdg + 3dgt) |
| 2 V | 100 μV | |
| 20 V | 1 mV | |
| 200 V | 10 mV | |
| 1000 V | 100 mV | ±(0.1%rdg + 5dgt) |
| DC CURRENT | |||
| Range | Accuracy | Resolution | Load Voltage |
| 200 μA | ±(0.35%rdg + 10dgt) | 0.01 μA | 1 mV/mA |
| 2 mA | 0.1 μA | 101 mV/mA | |
| 20 mA | 1 μA | 11 mV/mA | |
| 200 mA | 10 μA | 275 mV/A | |
| 2 A | ±(0.8%rdg +10dgt) | 100 μA | 1.5 mV/mA |
| 20 A | 1 mA | 42 mV/A | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 200 Ω | 0.01 Ω | ±(0.15%rdg + 20dgts) |
| 2 kΩ | 0.1 Ω | ±(0.15%rdg + 5dgts) |
| 20 kΩ | 1 Ω | |
| 200 kΩ | 10 Ω | |
| 2 kΩ | 100 Ω | |
| 20 MΩ | 1 kΩ | ±(0.5%rdg + 5dgts) |
| AC CURRENT (TRUE RMS) | ||||
| Range | Input Frequency | Accuracy | Resolution | Load Voltage |
| 20 mA | 40Hz ~ 400Hz | ±(0.8%rdg + 80dgts) | 1 μA | 11 mV/A |
| 200 mA | 10 μA | 1.5 mV/A | ||
| 2 A | 100 μA | 275 mV/A | ||
| 20 A | ±(1.0%rdg + 50dgts) | 1 mA | 42 mV/A | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 0nF ~ 10nF | ±(3.5%rdg + 20dgts) | 1 pF |
| 10nF ~ 100nF | 10 pF | |
| 100nF ~ 1mF | 100 pF | |
| 1mF ~ 10mF | 1 nF | |
| 10mF ~ 100mF | ±(5%rdg + 30dgts) | 10 nF |
| 100mF ~ 1mF | 100 nF | |
| 1mF ~ 2mF | 1 mF | |
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 20Hz ~ 200kHz | ±(1.0%rdg + 3dgts) | 0.01Hz ~ 0.1kHz |
| 200kHz ~ 2MHz | 0.01kHz ~ 0.001MHz | |
| 2MHz ~ 20MHz | 0.001MHz ~ 0.01MHz | |
