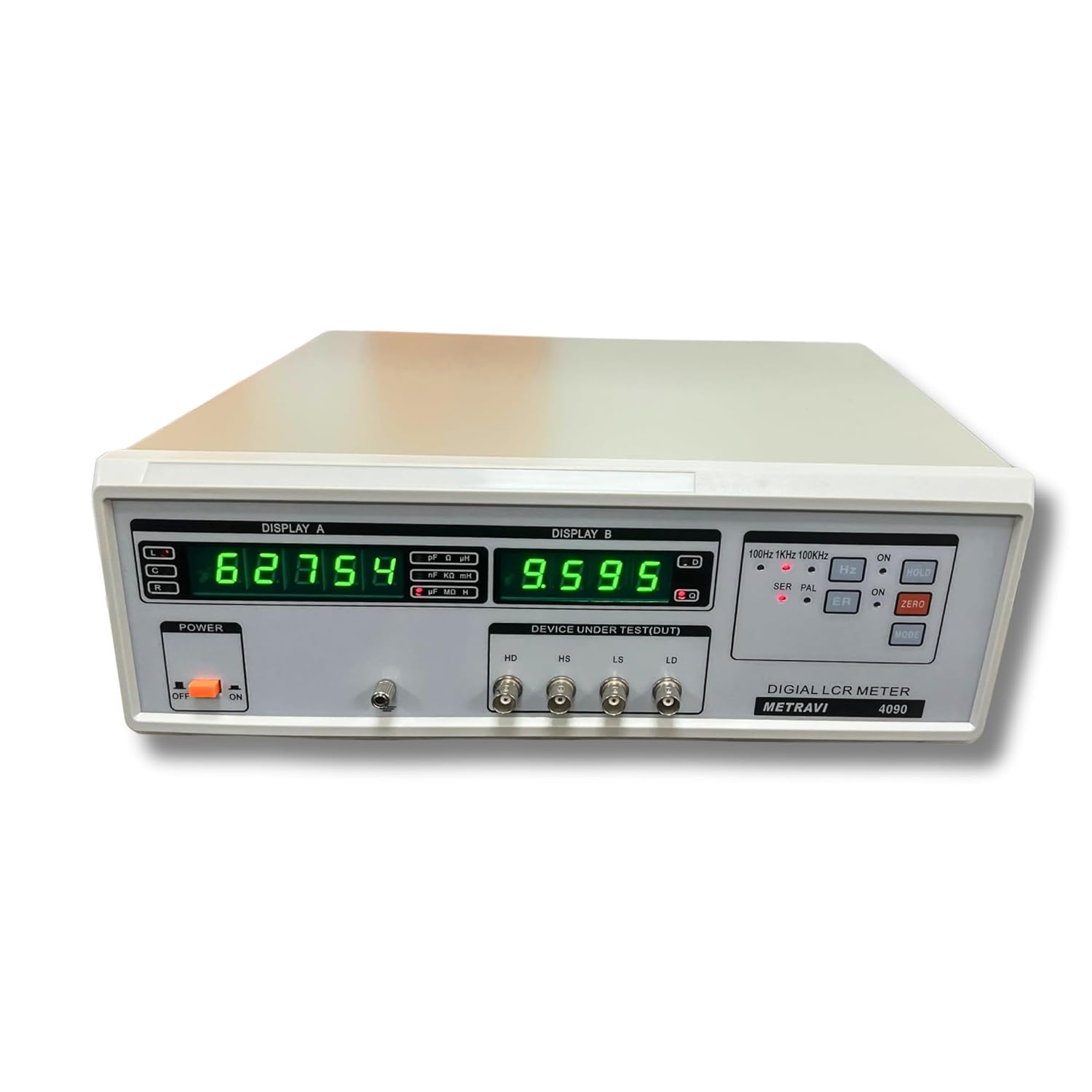

Metravi 4090 Benchtop LCR Meter
Click To Zoom
Metravi 4090 Benchtop LCR Meter
Metravi 4090 Benchtop LCR Meter
Benchtop, high accuracy LCR Meter, Measuring Frequency 100Hz, 1kHz, 10kHz± 0.02%. Inductance 1µH-99.99H. Capacitance 1pF-99.99µF. Impedance 0.1Ω～99.99MΩ. Dissipation Factor & Quality Factor. With Zero function and impact protection.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 33,050
(GST inclusive price) i-
Base Value: ₹ 28008.5
-
GST: (18) % ₹ 5041.5
-
Total Value ₹ 33050
₹47,250.00
( - 30% OFF )
Description
Key Features
- Based on single micro-processor using advanced 5 ports techniques and micro-processor corrected errors
- Impact protection
- Locking range
- Special zeroing function
- Easy operation
- High stability
- Suitable for testing production field
What's in the box?
|
Rating & Reviews
Rating
| GENERAL SPECIFICATIONS | |
| Measuring Parameters | L, C, R, Q, D |
| Measuring Frequency | 100Hz, 1kHz, 10kHz± 0.02% |
| Test Signal Level | 0.3Vrms±10% (Empty) @ 1 KHz |
| Test Speed / Sampling Rate | 4-6 times per second |
| Operating Temperature | 0°C～40°C |
| Operating Humidity | ≤85% RH |
| Power Supply | Voltage：AC198V～242V / Frequency: 50Hz±5% |
| Power Consumption | <30W |
| Dimensions and Weight | 360×125×320mm / Weight: about 3.5Kg |
| Parameter | Operating Frequency | Measuring Range | Measuring Accuracy |
| L | 100Hz | 1μH～9999H | ±[1μH+0.25%(1+L/200H+2mH/L)](1+1/Q) |
| 1KHz | 0.1μH～999.9H | ±[0.1μH+0.25%(1+L/200H+0.2mH/L)](1+1/Q) | |
| 10Kz | 0.01μH～99.99H | ±[0.01μH+0.5%(1+L/10H+0.04mH/L)](1+1/Q) | |
| C | 100Hz | 1pF～9999μF | ±[1pF+0.25%(1+1000pF/Cx+Cx/1000μF)](1+Dx) |
| 1KHz | 0.1pF～999.9μF | ±[0.1pF+0.25%(1+100pF/Cx+Cx/100μF)](1+Dx) | |
| 10Kz | 0.1pF～99.99μF | ±[0.01pF+0.5%(1+20pF/Cx+Cx/4μF)](1+Dx) | |
| R | 0.1Ω～99.99MΩ | ±[1mΩ+0.25%(1+R/2MΩ+2Ω/R)](1+Q) | |
| Q | 100Hz | 0.001～9999 | ±[0.020+0.15(Qx+1/Qx)%] |
| 1KHz | |||
| 10Kz | ±[0.020+0.2(Qx+1/Qx)%] | ||
| D | 100Hz | 0.0001～9.999 | ±0.0010（1+Dx2） |
| 1KHz | |||
| 10Kz | 10Kz ±0.0015（1+Dx2） |
